MAS ETH ARCH/CAAD - 2005/06 - STUDENT PAGES
Master of Advanced Studies in Architecture, Specialization in Computer Aided Architectural Design | 065-0005/6
Supervision: Prof. Dr. Ludger Hovestadt, Philipp Schaerer
Chair of CAAD, ETH Zurich




_______________________________________________________________________________________________________________________________

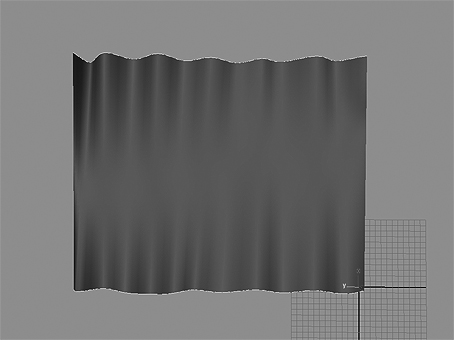

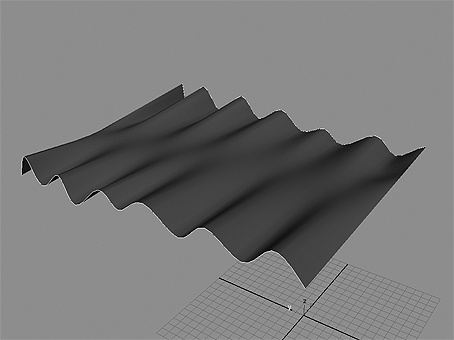

starting point : surface gererated in maya

MAS_0601_mod03-01_mayatop.jpg MAS_0601_mod03-01_mayaisocopy.jpg


_______________________________________________________________________________________________________________________________

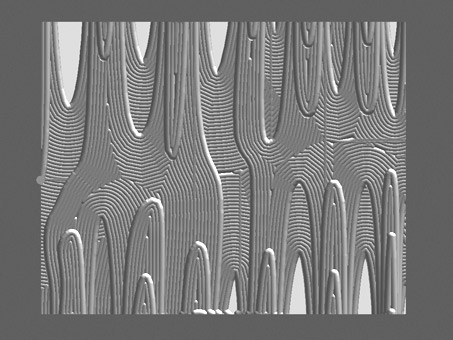

rough cut



MAS_0601_mod03-01_067_v28_rC_top-d.jpg Tool: 12mm HSS Ballnose
Stock to Leave: 20mm
Z Step Size: 10mm
Material Cut Mode: Contour Cut
Pocket Cut Mode: Spiral
_______________________________________________________________________________________________________________________________

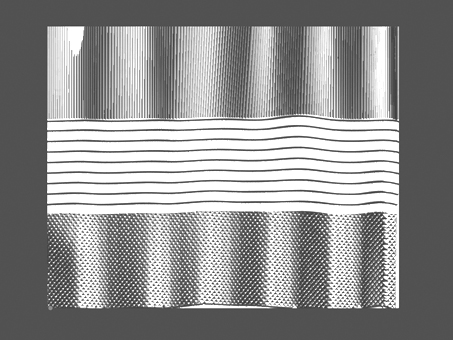

fine cut



upper band

twiki_MAS_0601_mod03-01_091_v28_f.jpg Tool: 6mm HSS Ballnose
Stock to Leave: 4mm
Step Size: 4mm
Cutting Direction: Flow Surface


middle band

twiki_MAS_0601_mod03-01_091_v28_fC_mid-d.jpg Tool: 6mm HSS Ballnose
Stock to Leave: 3.5mm
Step Size: 15mm
Cutting Direction: Flow Surface


bottom band

twiki_MAS_0601_mod03-01_091_v28_fC_bot-d.jpg two cuts: left to right / right to left

Tool: 6mm HSS Ballnose
Stock to Leave: 3mm
Step Size: 5mm
Cutting Direction: Planar
Angle: approx. 60°


_______________________________________________________________________________________________________________________________

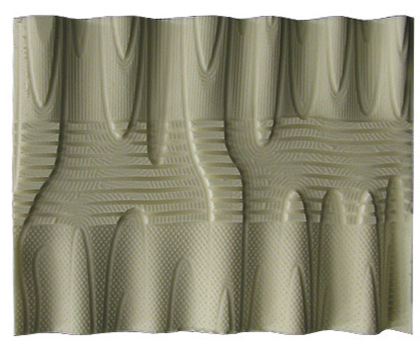

output

MAS_0601_mod03-01_015_low.jpg text
