Toni Kotnik Module 1: Scripting|Mini-Assignment 2
development of a plugin for Vectorworks to move selected objects

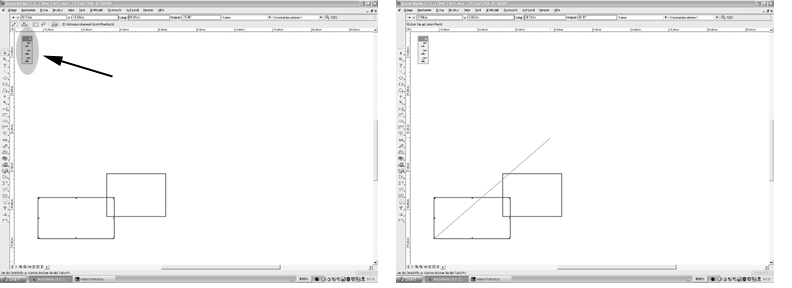

Select plugin and define translation vector ...

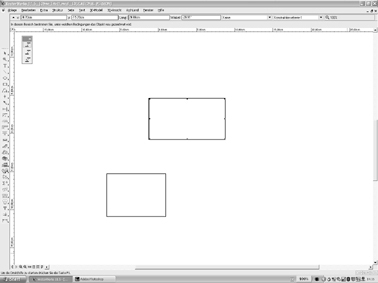

Move: move selected objects

PROCEDURE script1;

(* move selected objects *)

VAR
   x1,y1 : REAL; (* coordinates of first mouse click *)
   x2,y2 : REAL; (* coordinates of second mouse click *)
   dx,dy : REAL; (* distance to move *)

BEGIN
   GetLine(x1,y1,x2,y2);
   dx:=x2-x1; dy:=y2-y1;
   MoveObjs(dx,dy,TRUE,FALSE);
END;
RUN(script1);

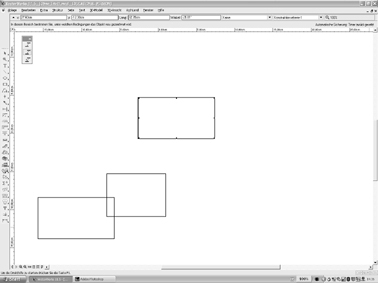

Copy: move a copy of selected objects

PROCEDURE script2;

(* copy selected objects *)

VAR
   x1,y1 : REAL; (* coordinates of first mouse click *)
   x2,y2 : REAL; (* coordinates of second mouse click *)
   dx,dy : REAL; (* distance to move *)

BEGIN
   GetLine(x1,y1,x2,y2);
   dx:=x2-x1; dy:=y2-y1;
   Duplicate(dx,dy);
END;
RUN(script2);

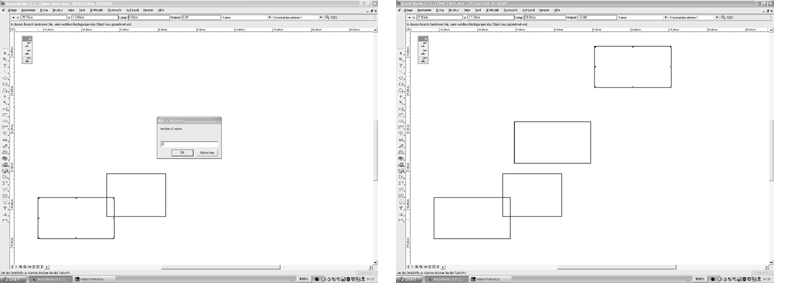

Repeated Copies: move a copy of selected objects several times

PROCEDURE script3;

(* repeated copy of selected objects *)

VAR
   x1,y1 : REAL; (* coordinates of first mouse click *)
   x2,y2 : REAL; (* coordinates of second mouse click *)
   dx,dy : REAL; (* distance to move *)
   n : INTEGER;   (* number of copies *)
   i : INTEGER;    (* counter *)

BEGIN
   n:=IntDialog('number of copies','1');
   GetLine(x1,y1,x2,y2);
   dx:=x2-x1; dy:=y2-y1;
   FOR i:=1 TO n DO
       Duplicate(dx,dy);
END;
RUN(script3);
