MAS ETH ARCH/CAAD - 2005/06 - STUDENT PAGES
Master of Advanced Studies in Architecture, Specialization in Computer Aided Architectural Design | 065-0005/6
Supervision: Prof. Dr. Ludger Hovestadt, Philipp Schaerer
Chair of CAAD, ETH Zurich







DimFo (dimming+info) Light



Preface

Delivery of information with light is looks quite limited.

However we can add several another concepts to the light which is a color, frequency of

blinking, arrangement of color and speed of light’s movement.




The one-dimensional Light

on and off



The two-dimensional Light



condition and reaction

a ----> a'
b ----> b'
c ----> c'



The three-dimensional Light
variety reaction

a ---> a1'
..---> a2'
..---> a3'

b ---> b1'
..---> b2'




The four-dimensional Light
Condition
-> Reaction(Mixing, Timing and Moving Arrangement of colors )

a+b ---> c + timing



Arrangement of colors

same channel

similar color



complement color





Proposal and Aim

We can distinguish the way of delivering diverse information at the same time with adding several external light elements.

1. Color –the building’s amenity (temperature, humidity, air condition, sunshine)

2. Frequency of blinking – the rate of energy consumption

3. Arrangement of color – People’s satisfaction of inside of the building

4. Speed of color’s movement – density of building





Basic idea is a 10 by 10 grid canvas. Each grid location contains
a Color-Box that will display a specific color contrast effects. User
select a grid and seed that grid by mouse movement. That grid will
draw corresponding effect on canvas.

This is a undercondruction.
You can see this next week, maybe...

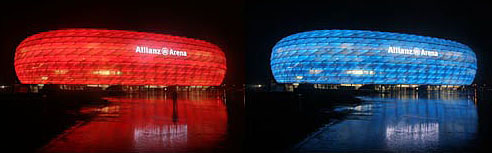

and the picture below this writing is my dream.









Revision r1.7 - 15 Oct 2006 - 21:04 - NDSDongYounShin
Parents: WebHome > NDSDongYounShin
