MAS ETH ARCH/CAAD - 2005/06 - STUDENT PAGES
Master of Advanced Studies in Architecture, Specialization in Computer Aided Architectural Design | 065-0005/6
Supervision: Prof. Dr. Ludger Hovestadt, Philipp Schaerer
Chair of CAAD, ETH Zurich

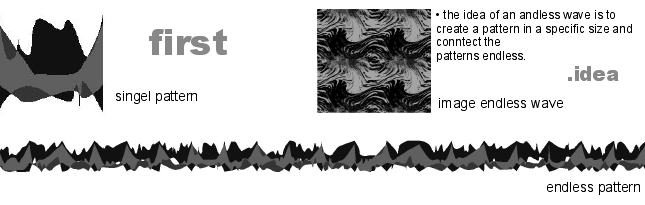

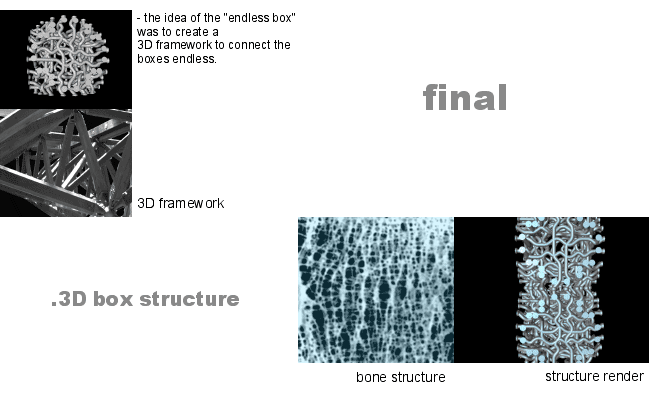

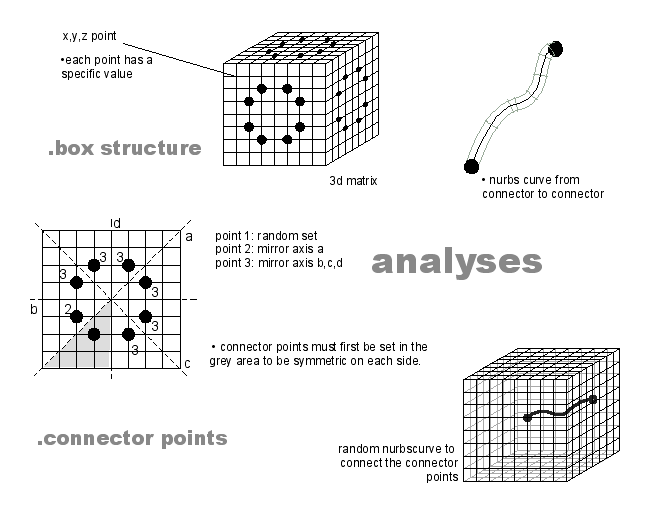

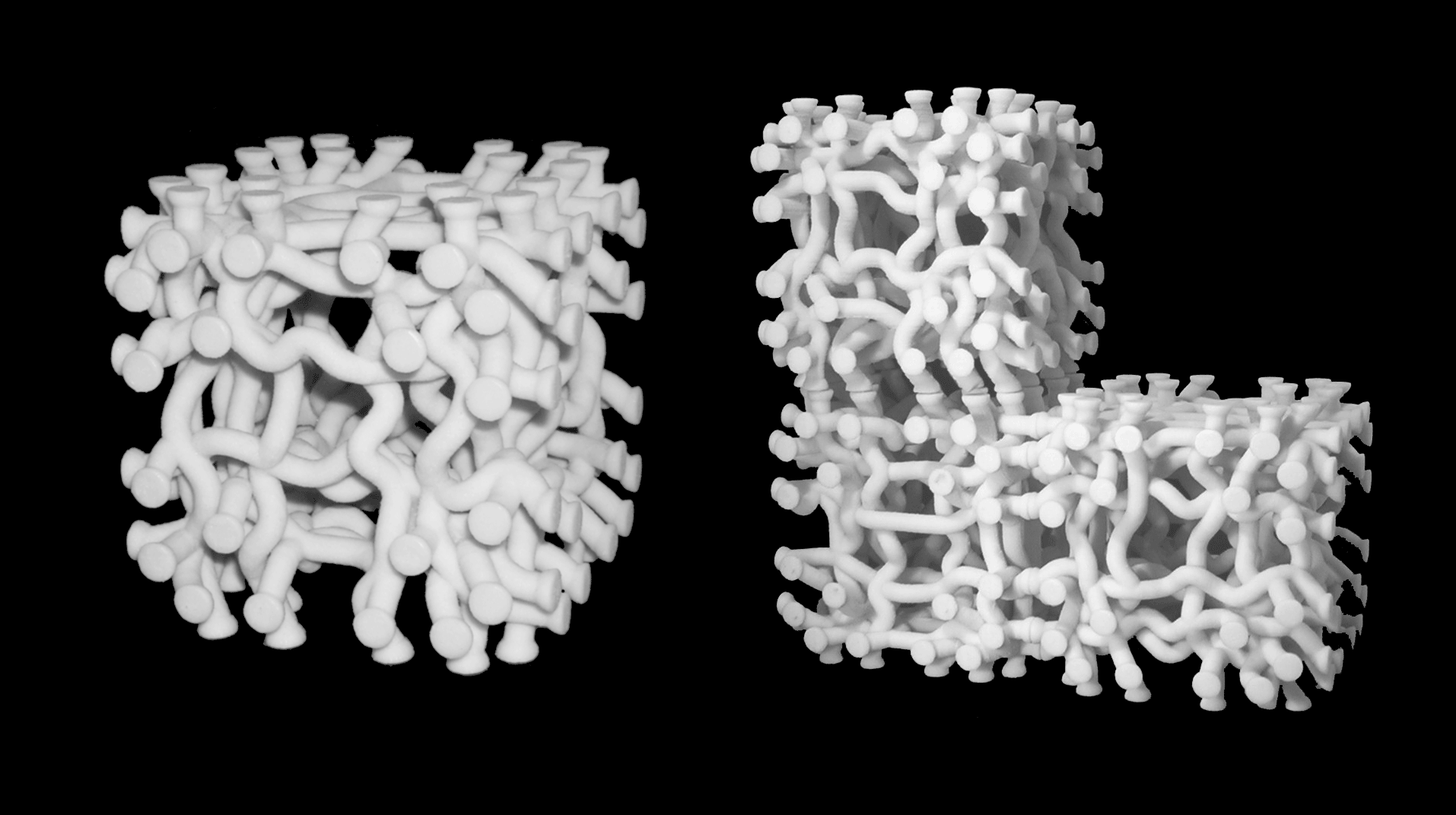

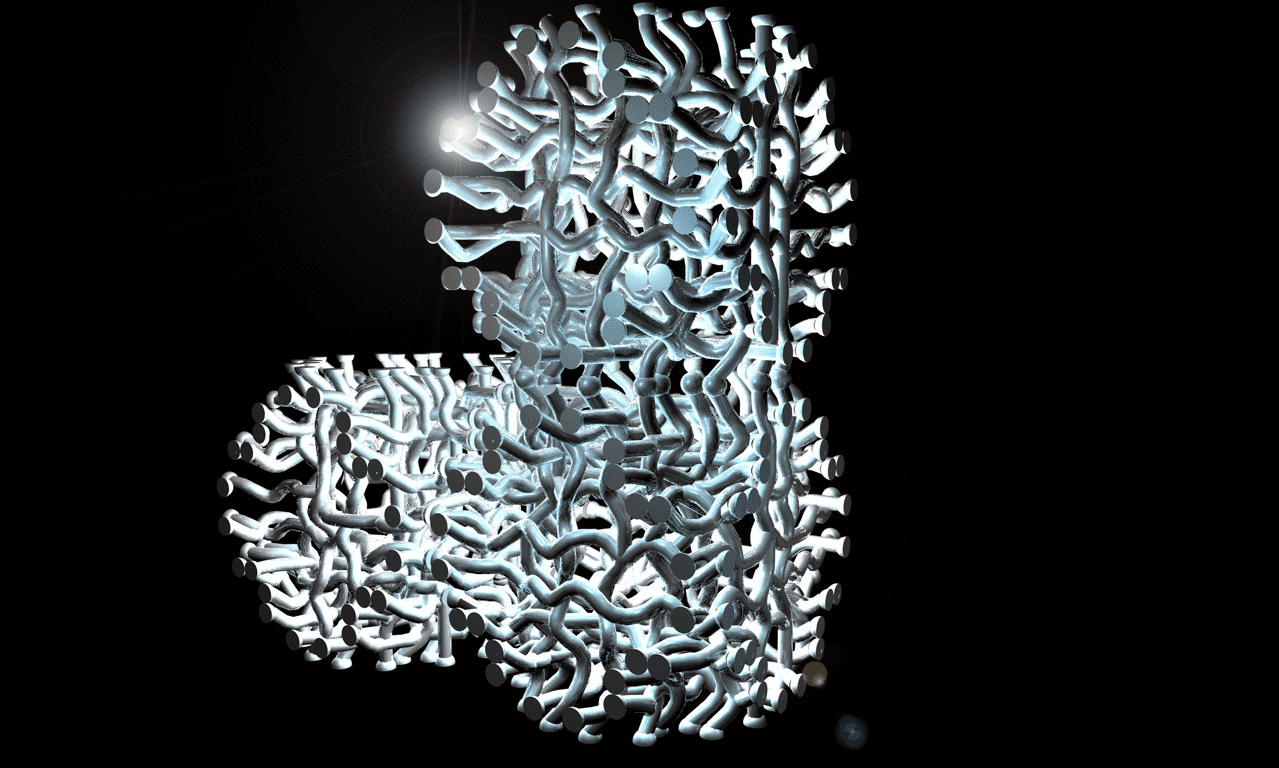

PROCEDURE EndlessBox;

Type X=structure
   x:Array [1..100] of real;
end;
   y=structure
   y:Array [1..100] of x;
end;
   xyz=structure
   z:Array [1..100] of y;
end;


VAR

   WertBox:  XYZ;

   x1,y1,z1:longint;
   maxX,maxY,maxZ:longint;
   PointWert,Zaehler,SubSolid,faktor,versatz,waves:integer;
   Wert:real;

   AnzCon,AnzConSeite,ConSeite,Force,thickness:integer;
   MObjekt,MObjekt1,BoneStaerke:handle;
   BoneString:handle;
   BoneStringA,Box1,Rechteck:handle;


Procedure CreateBone(ConSeite:integer;a,b,c:real);

var yP,xP,zP:longint;

begin
   xp:=trunc(x1);
   yp:=trunc(y1);
   zp:=trunc(z1);
   case ConSeite of
      1:begin
         BoneString:=CreateNurbsCurve(xp*faktor+Versatz,yp*faktor+Versatz,zp*faktor+Versatz, true, 2);

         For zp:=2 to (maxZ-1) do begin
            If zp<maxZ then begin


                  repeat
                     yp:=trunc(b-2+(random*2)+1);
                  until ((yp>1) and (yp<maxy));
                  repeat
                     xp:=trunc(c-2+(random*2)+1);
                  until ((xp>1) and (xp<maxx));



               AddVertex3D(BoneString,xp*faktor+Versatz,yp*faktor+Versatz,zp*faktor+Versatz);
               WertBox.z[zp].y[yp].x[xp]:=0;
            end; {end if}
         end; {end for}
         AddVertex3d(BoneString,x1*faktor+Versatz,y1*faktor+Versatz,maxZ*faktor+Versatz);
         BoneString :=LnewObj;

         arc(-2,-2,2,2,0,360);
         BoneStaerke:=lNewObj;

         MObjekt:=CreateExtrudeAlongPath(BoneString,BoneStaerke);
         SubSolid:=SubtractSolid(Box1,MObjekt1,Box1);
       end;

   2:begin
         BoneString :=CreateNurbsCurve(xp*faktor+Versatz,yp*faktor+Versatz,zp*faktor+Versatz, true, 2);

         For yp:=2 to (maxY-1) do begin
            If yp<maxY then begin
                  repeat
                     zp:=trunc(a-2+(random*2)+1);
                  until ((zp>1) and (zp<maxz));
                  repeat
                     xp:=trunc(c-2+(random*2)+1);
                  until ((xp>1) and (xp<maxx));

               AddVertex3D(BoneString,xp*faktor+Versatz,yp*faktor+Versatz,zp*faktor+Versatz);
               WertBox.z[zp].y[yp].x[xp]:=0;
            end; {end if}
         end; {end for}
         AddVertex3D(BoneString ,x1*faktor+Versatz,maxy*faktor+Versatz,z1*faktor+Versatz);
         BoneString :=LNewObj;
         arc(-2,-2,2,2,0,360);
         BoneStaerke:=lNewObj;
         MObjekt:=CreateExtrudeAlongPath(BoneString,BoneStaerke);


      end;
      3:begin
         BoneString :=CreateNurbsCurve(xp*faktor+Versatz,yp*faktor+Versatz,zp*faktor+Versatz, true, 2);
         For xp:=2 to (maxX-1) do begin
            If yp<maxY then begin
                  repeat
                     zp:=trunc(a-2+(random*2)+1);
                  until ((zp>1) and (zp<maxz));
                  repeat
                     yp:=trunc(b-2+(random*2)+1);
                  until ((yp>1) and (yp<maxy));

               AddVertex3D(BoneString ,xp*faktor+Versatz,yp*faktor+Versatz,zp*faktor+Versatz);
               WertBox.z[zp].y[yp].x[xp]:=0;
            end; {end if}
         end; {end for}
         AddVertex3D(BoneString ,maxx*faktor+Versatz,y1*faktor+Versatz,z1*faktor+Versatz);
         BoneString :=LNewObj;
         arc(-2,-2,2,2,0,360);
         BoneStaerke:=lNewObj;
         MObjekt:=CreateExtrudeAlongPath(BoneString ,BoneStaerke);
         SubSolid:=SubtractSolid(MObjekt1,Box1,Box1);

      end;
   end; {end of case}
end;

BEGIN    {hauptprogramm}

   maxZ:=6;
   maxY:=6;
   maxX:=6;
   Zaehler:=0;
   faktor:=6;


   {fuelle inbox}
   For z1:=1 to maxZ do begin
      For y1:=1 to maxY do begin
         for x1:=1 to maxY do begin
            Wert:=trunc(random*4);
            WertBox.z[z1].y[y1].x[x1]:=0;
         end; {x1}
      end; {y1}
   end; {z1}

   {definiere connectoren}

   while (Zaehler<2) do begin         {begrenze Einstreuung diagonale Achse}
      repeat
         x1:=(trunc(random*((maxX-1)/2)))+1;
         y1:=(trunc(random*((maxY-1)/2)))+1;
      until ((x1>1) and (y1>1));
      z1:=1;
      Wert:=WertBox.z[z1].y[y1].x[x1];
      if (Wert<>1) then begin
         if  (y1<=x1)  then begin
            WertBox.z[z1].y[y1].x[x1]:=1;
            WertBox.z[z1].y[x1].x[y1]:=1; {diagonale Spiegelung}
            Zaehler:=Zaehler+1;
         end; {end if}
      end; {end if}

   end; {end of while}

   {spiegele Connectoren}
   For y1:=1 to ((maxY-1)/2) do begin
      For x1:=1 to ((maxx-1)/2) do begin

         If WertBox.z[1].y[y1].x[x1]=1 then begin
         {plane1}
            WertBox.z[1].y[y1].x[x1]:=1;
            WertBox.z[1].y[y1].x[(maxX)-(x1-1)]:=1;
            WertBox.z[1].y[maxY-(y1-1)].x[maxX-(x1-1)]:=1;
            WertBox.z[1].y[maxY-(y1-1)].x[x1]:=1;

         {plane2}
            WertBox.z[y1].y[maxY].x[x1]:=1;
            WertBox.z[y1].y[maxY].x[maxX-(x1-1)]:=1;
            WertBox.z[maxY-(y1-1)].y[maxY].x[maxX-(x1-1)]:=1;
            WertBox.z[maxY-(y1-1)].y[maxY].x[x1]:=1;

         {plane3}
            WertBox.z[maxZ].y[y1].x[x1]:=1;
            WertBox.z[maxZ].y[y1].x[maxX-(x1-1)]:=1;
            WertBox.z[maxZ].y[maxY-(y1-1)].x[maxX-(x1-1)]:=1;
            WertBox.z[maxZ].y[maxY-(y1-1)].x[x1]:=1;

         {plane4}
            WertBox.z[y1].y[1].x[x1]:=1;
            WertBox.z[y1].y[1].x[maxX-(x1-1)]:=1;
            WertBox.z[maxY-(y1-1)].y[1].x[maxX-(x1-1)]:=1;
            WertBox.z[maxY-(y1-1)].y[1].x[x1]:=1;

         {plane5}
            WertBox.z[x1].y[y1].x[1]:=1;
            WertBox.z[x1].y[maxY-(y1-1)].x[1]:=1;
            WertBox.z[maxX-(x1-1)].y[y1].x[1]:=1;
            WertBox.z[maxX-(x1-1)].y[maxY-(y1-1)].x[1]:=1;

         {plane6}
            WertBox.z[x1].y[y1].x[maxX]:=1;
            WertBox.z[x1].y[maxY-(y1-1)].x[maxX]:=1;
            WertBox.z[maxX-(x1-1)].y[y1].x[maxX]:=1;
            WertBox.z[maxX-(x1-1)].y[maxY-(y1-1)].x[maxX]:=1;

         end; {endif}

      end; {end forx}
   end; {end forY}

{Anzahl der Endless Boxes}

For Waves:=1 to 1 do begin
   Versatz:=Versatz+(Waves*50);

   {zaehle connectoren und nummeriere }
   AnzCon:=0;
   For z1:=1 to maxZ do begin
      For y1:=1 to maxY do begin
         for x1:=1 to maxX do begin
            If (WertBox.z[z1].y[y1].x[x1]=1) then
            begin
               AnzCon:=AnzCon+1;
               WertBox.z[z1].y[y1].x[x1]:=1;
            end; {end if}
         end; {x1}
      end; {y1}
   end; {z1}


   {plane 1 to 3}
   ConSeite:=1;
   z1:=1;
   For y1:=1 to maxY do begin
      For x1:=1 to maxX do begin
         If (WertBox.z[z1].y[y1].x[x1]=1) then
            begin
               CreateBone(ConSeite,z1,y1,x1);
            end; {end if}
      end; {x1}
   end; {y1}

   {plane 2 to 4}
   ConSeite:=2;
   y1:=1;
   For z1:=1 to maxZ do begin
      For x1:=1 to maxX do begin
         If (WertBox.z[z1].y[y1].x[x1]=1) then
            begin
               CreateBone(ConSeite,z1,y1,x1);
            end; {end if}
      end; {x1}
   end; {z1}

   {plane 5 to 6}
   ConSeite:=3;
   x1:=1;
   For z1:=1 to maxZ do begin
      For y1:=1 to maxY do begin
         If (WertBox.z[z1].y[y1].x[x1]=1) then
            begin
               CreateBone(ConSeite,z1,y1,x1);
            end; {end if}
      end; {x1}
   end; {z1}


   {zeichne connectoren}

   For z1:=1 to maxZ do begin
      For y1:=1 to maxY do begin
         for x1:=1 to maxX do begin

            if (WertBox.z[z1].y[y1].x[x1]=1) then
            begin
               rect(-3,-3,3,3);
               Rechteck:=LnewObj;
               MObjekt1:=HExtrude(Rechteck,-3,3);
               IF x1=maxx then begin
                  Move3dObj(MObjekt1,x1*faktor+Versatz+4.5,y1*faktor+Versatz,z1*faktor+Versatz);
                  MObjekt:=CreateSphere(x1*faktor+Versatz+1.5,y1*faktor+Versatz,z1*faktor+Versatz,3);
                  SubSolid:=SubtractSolid(MObjekt,MObjekt1,Box1);
               end;
               IF x1=1 then begin
                  Move3dObj(MObjekt1,x1*faktor+Versatz-4.5,y1*faktor+Versatz,z1*faktor+Versatz);
                  MObjekt:=CreateSphere(x1*faktor+Versatz-1.5,y1*faktor+Versatz,z1*faktor+Versatz,3);
                  SubSolid:=SubtractSolid(MObjekt,MObjekt1,Box1);
               end;
               IF y1=maxy then begin
                  Move3dObj(MObjekt1,x1*faktor+Versatz,y1*faktor+Versatz+4.5,z1*faktor+Versatz);
                  MObjekt:=CreateSphere(x1*faktor+Versatz,y1*faktor+Versatz+1.5,z1*faktor+Versatz,3);
                  SubSolid:=SubtractSolid(MObjekt,MObjekt1,Box1);
               end;
               IF y1=1 then begin
                  Move3dObj(MObjekt1,x1*faktor+Versatz,y1*faktor+Versatz-4.5,z1*faktor+Versatz);
                  MObjekt:=CreateSphere(x1*faktor+Versatz,y1*faktor+Versatz-1.5,z1*faktor+Versatz,3);
                  SubSolid:=SubtractSolid(MObjekt,MObjekt1,Box1);
               end;
               IF z1=maxz then begin
                  Move3dObj(MObjekt1,x1*faktor+Versatz,y1*faktor+Versatz,z1*faktor+Versatz+4.5);
                  MObjekt:=CreateSphere(x1*faktor+Versatz,y1*faktor+Versatz,z1*faktor+Versatz+1.5,3);
                  SubSolid:=SubtractSolid(MObjekt,MObjekt1,Box1);
               end;
               IF z1=1 then begin
                  Move3dObj(MObjekt1,x1*faktor+Versatz,y1*faktor+Versatz,z1*faktor+Versatz-4.5);
                  MObjekt:=CreateSphere(x1*faktor+Versatz,y1*faktor+Versatz,z1*faktor+Versatz-1.5,3);
                  SubSolid:=SubtractSolid(MObjekt,MObjekt1,Box1);
               end;


            end; {endif}

         end; {x1}
      end; {y1}
   end; {z1}

 END; {end of Waves}

END;  {end of 3dArray}

run(EndlessBox);
