lost in TRANSLATION!
my goal in this module was to investigate the translation between picture and brain
so i start to investigate in the stereoscopic depth perception. and as a result of my investigation i create a
'SIRDS' single image random dot stereogram

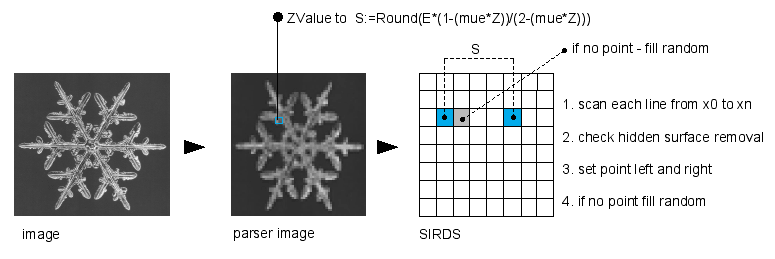

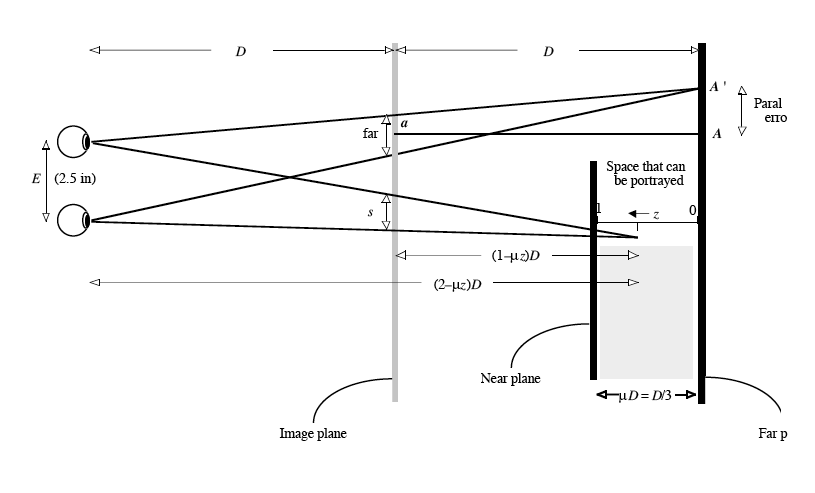

prinziple of creating a 'SIRDS'
 |
Z:=Zarray[x1,y1]; {depthinfo}
S:=Round(E*(1-(mue*Z))/(2-(mue*Z))); {pointdistance}
xL:=Round(x1-(s/2)); {left point}
xR:=XL+S; {right point} |

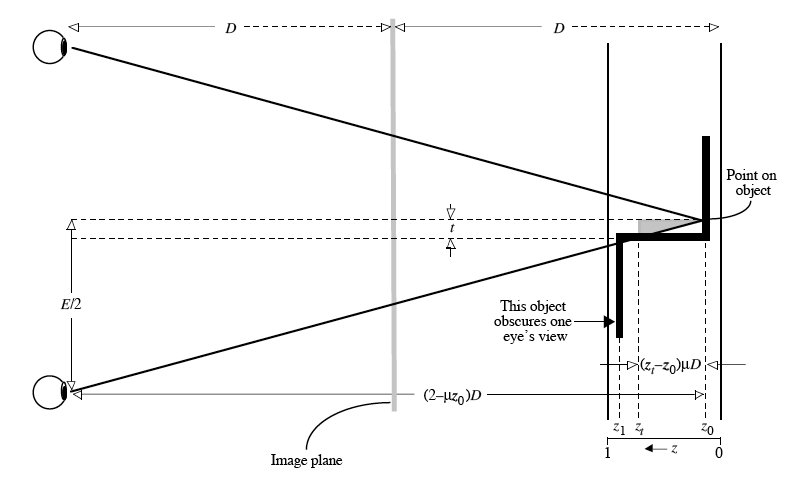

hidden surface problem:
Zt:=Z+(2*(2-mue*Z)*t/(mue*E)); |  |
translation image and koch snowflake
 | image for the SIRDS |
 |

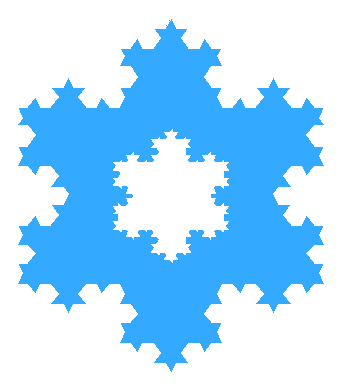

for a SIRTS i create a recursive Koch-Snowflake |
illustration of vector scribt algorithm
combination of the results

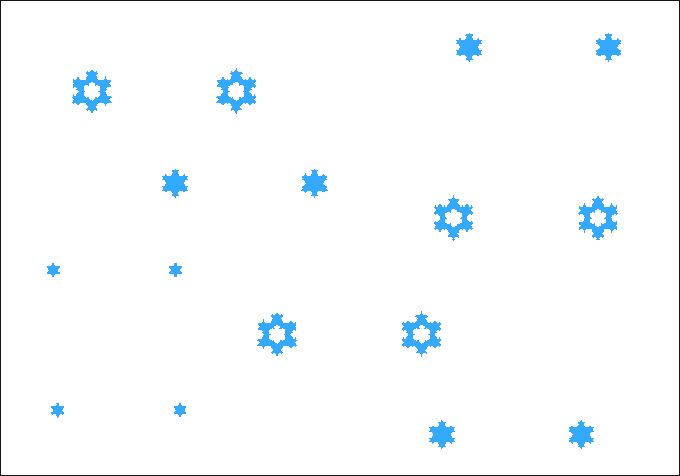

| sirts | +sirds | =stereoimage |
 |  |  |
single image
random text

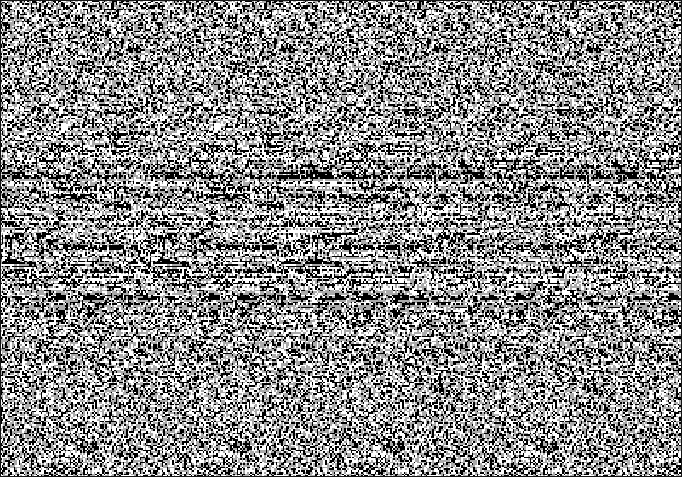

stereogram | single image
random dot
stereogram | FINAL |
vector script algorithm
PROCEDURE SIRDS;
{bildgroesse 200*200, RDSgroesse 400*280}
VAR
currentCell:HANDLE;
_tag,_data:STRING;
_flag,id:INTEGER;
x,y,value,PValue:REAL;
_fileName:STRING;
xmax,ymax,xmaxG,ymaxG:integer;
Zarray:array[0..500,0..500] of real;
same:array[0..500] of integer;
pix:array[0..500] of real;
Buchstabe:string;
GesamtAusgabe:dynArray[] of Char;
GesamtAusgabeST:dynArray[] of Char;
StereoAusgabe:dynArray[] of Char;
offset:integer;
Objekt,CopyFlocke:handle;
Col,red,green,blue:longint;
counter,counter1:integer;
maxTiefe,Color:integer;
Visible:boolean;
E,D,Z,ZT,mue,S,RandomFarbe,L:real;
x1,x2,y1,y2,xR,xL,xg,yg,DPI,t,flocke:integer;
SnowflakeArea:array[1..4] of real;
Snowflake:array[1..10] of handle;
procedure Schneeflocken;
VAR Ordnung:integer;
hlaenge,x1,y1,pi1,winkel1:real;
i,j:integer;
objekt:handle;
p1x,p1y,p2x,p2y,distanceY:real;
maxSnowflake:integer;
procedure koch (pordnung: Integer; plaenge, pwinkel: Real);
begin
if (pordnung = 0 ) then
begin
x1 := x1+plaenge*cos(pwinkel);
y1 := y1-plaenge*sin(pwinkel);
addpoint(Round(x1),Round(y1));
end
else begin
koch (pordnung-1, plaenge / 3, pwinkel);
pwinkel := pwinkel + pi /3;
koch (pordnung-1, plaenge / 3, pwinkel);
pwinkel := pwinkel - 2 * pi / 3;
koch (pordnung-1, plaenge / 3, pwinkel);
pwinkel := pwinkel + pi / 3;
koch (pordnung-1, plaenge / 3, pwinkel);
end;
end; {end of koch}
begin
maxSnowflake:=3;
pi1:=3.145;
winkel1 :=0;
For i:=1 to maxSnowflake do begin
hlaenge :=i*40;
if (i=1) then hlaenge:=45;
x1 := 0; y1 := 0;
MoveTo (Round(x1), Round(y1));
beginpoly;
ordnung := (3);
koch (ordnung, hlaenge, winkel1);
winkel1 := winkel1 - 2 * pi / 3;
ordnung := (3);
koch (ordnung, hlaenge, winkel1);
winkel1 := winkel1 - 2 * pi / 3;
ordnung := (3);
koch (ordnung, hlaenge, winkel1);
winkel1 := winkel1 - 2 * pi / 3;
endpoly;
ClosePoly;
{creates and moves flakes uebereinander}
Snowflake[i]:=LnewObj;
Col:=224; {eisblau}
ColorIndexToRGB(Col,red,green,blue);
SetFillBack(Snowflake[i],red,green,blue);
Col:=0; {weiss}
ColorIndexToRGB(Col,red,green,blue);
SetPenFore(Snowflake[i],red,green,blue);
GetBBox (Snowflake[i],p1x,p1y,p2x,p2y);
Hmove(Snowflake[i],-p2x+((p2x-p1x)/2),-p2y+((p2y-p1y)/2));
end; {end for}
{intersects and sorts the snowflakes}
DSelectAll;
clipSurface(Snowflake[3],Snowflake[1]);
DSelectAll;
SelectObj(T=21);
Objekt:= FSActLayer;
Snowflake[3]:=Objekt;
For i:=1 to maxSnowFlake+1 do begin
SnowflakeArea[i]:=HArea(Snowflake[i]);
end;
SortArray(SnowflakeArea,0,0);
end; {end procedure snowflake}
PROCEDURE Working(x1,y1:integer;PValue:REAL); {bildeinlesen}
begin
Zarray[x1+100,YmaxG-y1-40]:=(PValue);
Message('x1:',x1,' y1:',y1,' pvalue:',pvalue);
end;
PROCEDURE readData(VAR _dData,_dTag:STRING;VAR _OCFlag:INTEGER);
VAR
_rString:STRING;
_rChar:CHAR;
_f1:INTEGER;
BEGIN
{setzen der Variablen in den Grundzustand}
_f1:=0;
_OCFlag:=0;
_dData:=''; {Name/Art der Wertebezeichnung aus dem XML}
_rString:='';
_dTag:=''; {Wert/Daten aus dem XML}
WHILE ((_f1=0) AND (NOT EOF(_fileName))) DO BEGIN
Read(_rChar);
IF _rChar='/' THEN BEGIN
IF _OCFlag=1 THEN _OCFlag:=2;
_rString:='';
END
ELSE BEGIN
IF _rChar='<' THEN BEGIN
_OCFLag:=1;
_dData:=_rString;
_rString:='';
END
ELSE BEGIN
IF _rChar='>' THEN BEGIN
_dTag:=_rString;
_f1:=1;
END
ELSE BEGIN
_rString:=Concat(_rString,_rChar);
END;
END;
END;
END;
IF EOF(_fileName) THEN _dTag:='xx';
END;
BEGIN {hauptprogramm}
(*{$debug}*)
xmaxG:=400-1;
ymaxG:=280-1;
{parser}
GetFile(_fileName);
Open(_fileName);
WHILE _tag<>'xx' DO BEGIN
readData(_data,_tag,_flag);
IF (_flag=2) THEN BEGIN
IF _tag='CELL' THEN BEGIN
Working(x1,y1,Value);
END;
IF _tag='ID' THEN BEGIN
id := Str2Num(_data);
END;
IF _tag='VALUE' THEN BEGIN
value := Str2Num(_data);
END;
IF _tag='X' THEN BEGIN
x1:=Str2Num(_data);
END;
IF _tag='Y' THEN BEGIN
y1:=Str2Num(_data);
END;
END;
IF(_flag=1) THEN BEGIN
END;
END;
Close(_fileName);
{erzeuge Stereogramm}
penpat(0);
DPI:=72;
E:=Round(2.5*DPI); {Augenabstand}
mue:=0.33333; {idealer abstand von near zur far plane}
For y1:=0 to YmaxG do begin
for x1:=0 to XmaxG do begin
same[x1]:=x1;
end;
For x1:=0 to XmaxG do begin
Z:=Zarray[x1,y1]; {tiefenpunkt aus bildinfos}
S:=Round(E*(1-(mue*Z))/(2-(mue*Z))); {Punktabstand Bildebene}
xL:=Round(x1-(s/2)); {linker punkt}
xR:=XL+S; {rechter punkt}
if ((xL>0) and (xR<XmaxG)) then begin
t:=1;
REPEAT
Zt:=Z+(2*(2-mue*Z)*t/(mue*E));
if ((Zarray[x1-t,y1]<Zt) and (Zarray[x1+t,y1]<Zt)) then
begin
Visible:=TRUE;
end
else begin
Visible:=FALSE;
end;
t:=t+1;
UNTIL ((Visible=True) and (zt<1) or ((x1-t)<1) or ((x1+t)>(xmaxG-1)));
if (Visible=TRUE) then
begin
l:=same[xl];
while ((l<> xL) and (l<>xR)) do begin
if (l<xr) then begin
xl:=l;
l:=same[xL];
end
else begin
same[xL]:=xr;
xl:=xR;
l:=same[xL];
xR:=l;
end;
end;
same[xl]:=xR;
end; {end if}
end; {end if}
end; {end for x1}
For x1:=xMaxG downto 0 do
begin
If (same[x1]=x1) then begin
pix[x1]:=trunc((random*3)+1);
end
else begin
pix[x1]:=pix[same[x1]];
end;
Color:=trunc(Pix[x1]);
Case Color of
1:col:=0; {weiss}
2:col:=50; {mittelgrau}
3:col:=255; {dunkelgrau}
end; {end of Case}
ColorIndexToRGB(Col,red,green,blue);
rect(x1*5,y1*5,x1*5+5,y1*5+5);
Objekt:=LnewObj;
SetFillBack(Objekt,red,green,blue);
end;
counter1:=0;
end; {end for y1}
{schneeflocken settings}
PenPat(1);
Schneeflocken;
For Counter:=1 to 8 do begin
Flocke:=trunc((random*3)+1);
z:=(1/Flocke);
y1:=round((random*(YmaxG-20))+1);
repeat
x1:=round((random*(XmaxG-20))+1);
S:=round(E*((1-(mue*z))/(2-(mue*z)))); {Punktabstand Bildebene}
xR:=Round((x1)-(s/2)); {rechter punkt}
XL:=Round((x1)+(s/2)); {linker punkt}
until ((xR>0) and (xL<XmaxG));
CopyFlocke:=HDuplicate(Snowflake[Flocke],xR*5+10,y1*5);
CopyFlocke:=HDuplicate(Snowflake[Flocke],xL*5+10,y1*5);
end;
dselectAll;
END;
RUN(SIRDS);

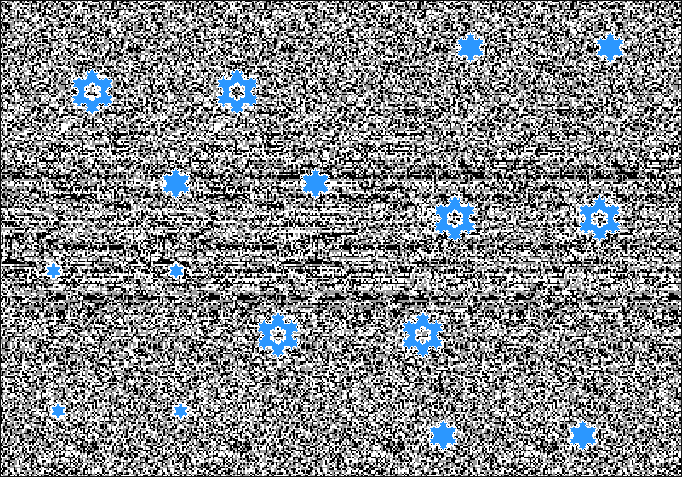

FINAL images
