| MAS ETH ARCH/CAAD - 2004/05 - STUDENT PAGES Master of Advanced Studies in Architecture, Specialization in Computer Aided Architectural Design | 065-0005/6 Supervision: Prof. Dr. Ludger Hovestadt, Philipp Schaerer Chair of CAAD, ETH Zurich steel01_assignment01idealayering the six sides of the given cube (400/400/400) parallelin the height of the distance between each layer shapes are cut into the steelplates the shapes are bent in either direction connecting the different layers each layer is randomly folded to gain stability

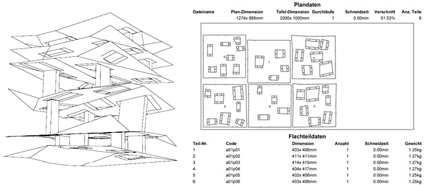

designwhile the prototype was designed by hand, the idea is to program the structureoptimizing the allocation of the connections between the layers and serving a general framework implying the stability as well as the construction (constraints on behalf of the rivets etc.)

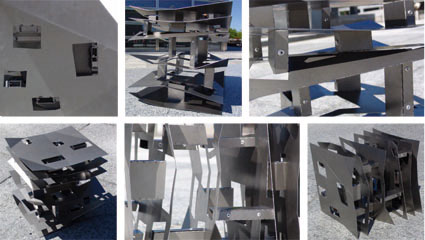

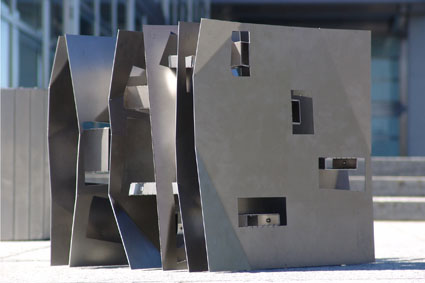

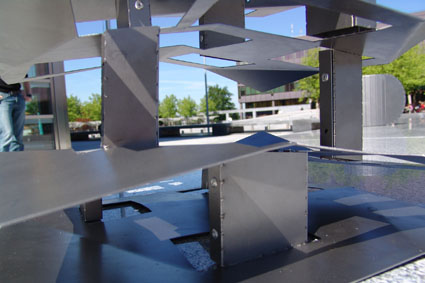

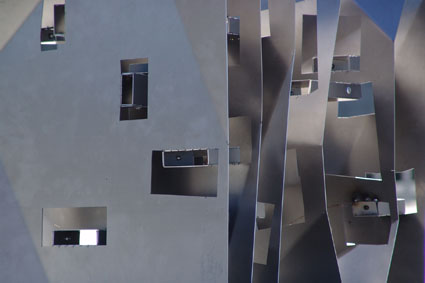

images
| ||||
