The 'layout plugin' is useable to arrange display furniture or tables in a floorplan regularly. Parameters such as dimension of space, dimension of display/table and dimensions of gaps between displays/tables and walls are modifiable. vectorscript :first plugin

______________________________________________________________________________________________________________________________

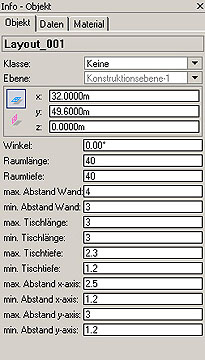

Object Info box :modifiable parameters

space length / space width maximal dimension from wall to object / minimal dimension from wall to object maximal length of object / minimal length of object maximal depth of object / minimal depth of object maximal dimension of gap between objects in x-axis / minimal dimension of gap between objects in x-axis maximal dimension of gap between objects in y-axis / minimal dimension of gap between objcts in y-axis

Procedure firstplugin;


VAR

i,k : INTEGER;
r,g,b : LONGINT;
patNumber: LONGINT;
cX1, cY1, cX2, cY2: REAL;
STARTx, STARTy: REAL;
rectLengthblock1, rectWidthblock1: REAL;
rectLengthblock2, rectWidthblock2: REAL;
tablelengthmax, tablelengthmin, tablelength: REAL;
tablewidthmax, tablewidthmin, tablewidth: REAL;
gapwallmax, gapwallmin, gapwall: REAL;
Xgapmax, Xgapmin, gapX: REAL;
Ygapmax, Ygapmin, gapY: REAL;
Ymaxunits, Xmaxunits: INTEGER;


BEGIN;

   {Choose Colors,Hatch}
   ColorIndexToRGB(255,r,g,b);
   PenFore (r,g,b);
   FillPat (0);

   {Draw outline space}
   rectLengthblock1:=IntDialog('gebe die Längsseite des Raumes ein','0');
   rectWidthblock1:=IntDialog('gebe die Querseite des Raumes ein','0');
   cX1:=0;
   cY1:=0;
   Rect (cX1,cY1,rectLengthblock1,rectWidthblock1);

   DSelectAll;

   BEGIN;
      {Draw outline with gapwall}
      ColorIndexToRGB(0,r,g,b);
      PenFore (r,g,b);
      FillPat (0);


      gapwallmax:=IntDialog('gebe max Abstand von der Wand ein','0');
      gapwallmin:=IntDialog('gebe min Abstand von der Wand ein','0');
      gapwall:=gapwallmin+Random*(gapwallmax-gapwallmin);
      rectLengthblock2:=rectLengthblock1-2*gapwall;
      rectWidthblock2:=rectWidthblock1-2*gapwall;
      cX2:=cX1+gapwall;
      cY2:=cY1+gapwall;
      Rect (cX2,cY2,rectLengthblock2+gapwall,rectWidthblock2+gapwall);

      DSelectAll;


      BEGIN;
      {ask parameters for tables}
      tablelengthmax:=IntDialog('max Längsseite des Tisches ein','0');
      tablelengthmin:=IntDialog('min Längsseite des Tisches ein','0');
      tablelength:=tablelengthmin + Random*(tablelengthmax-tablelengthmin);
      tablewidthmax:=IntDialog('max Tiefe des Tisches ein','0');
      tablewidthmin:=IntDialog('min Tiefe des Tisches ein','0');
      tablewidth:=tablewidthmin+Random*(tablewidthmax-tablewidthmin);

      {ask for gap x axis}
      Xgapmax:=IntDialog('max Abstand zu den Tischen x-achse','0');
      Xgapmin:=IntDialog('min Abstand zu den Tischen x-achse','0');
      gapX:=Xgapmin +Random*(Xgapmax-Xgapmin);

      {ask for gap y axis}
      Ygapmax:=IntDialog('max Abstand zu den Tischen y-achse','0');
      Ygapmin:=IntDialog('min Abstand zu den Tischen y-achse','0');
      gapY:=Ygapmin +Random*(Ygapmax-Ygapmin);

      Xmaxunits:=Trunc(rectLengthblock2/(tablelength+gapX));
      Ymaxunits:=Trunc(rectWidthblock2/(tablewidth+gapY));

         {draw tables in floorplan}
            ColorIndexToRGB(255,r,g,b);
            PenFore (r,g,b);
            FillPat (0);

            For i:= 0 TO Xmaxunits DO
               BEGIN
                  For k:= 0 TO Ymaxunits DO
                     BEGIN
                        startX := i*(tableLength + gapX);
                           startY := k*(tableWidth + gapY);
                        Rect(startX,startY,startX + tableLength,startY + tableWidth);

                        Group;
                     END;
                END;

      MoveObjs(cX2,cY2,FALSE,FALSE);


      END;
   END;

END;
