Master of Advanced Studies in Architecture, Specialization in Computer Aided Architectural Design | 065-0005/6
Supervision: Prof. Dr. Ludger Hovestadt, Philipp Schaerer
Chair of CAAD, ETH Zurich

module 02

processing > > > 2in1

outputvwbase.JPG   outputvwstencil.JPG

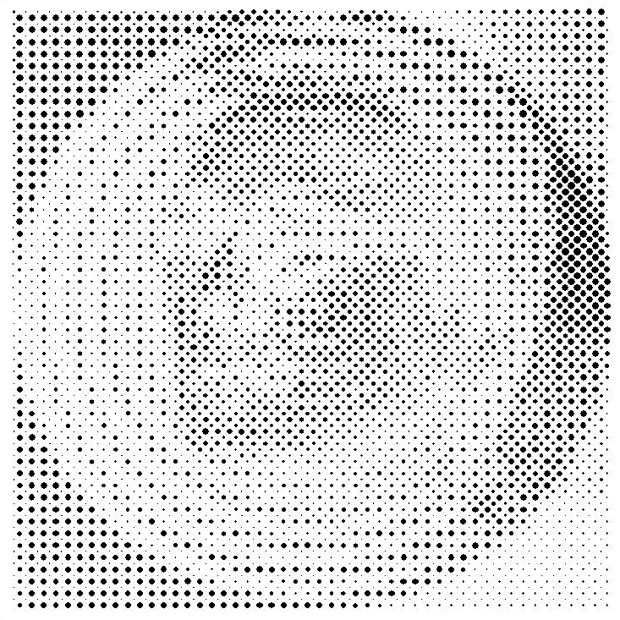

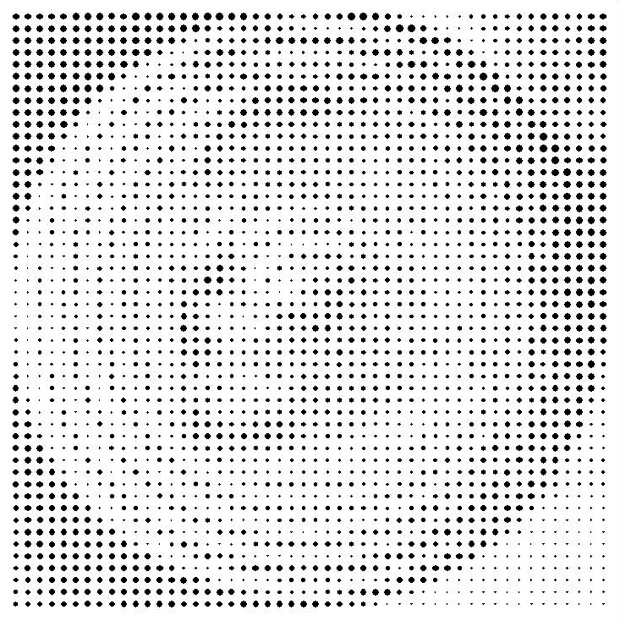

base > > > new image containig painting + portrait   stamp > > > holes in a cardboard, containing also both images

the final step was to combine the two images in one. this way, a base sheet and a stamp were created. on the base, the portrait
and the painting were positioned with gaps between their dots. like this both images exist next to each other. on the stamp the
two pictures were merged. that means the bigger dots overlay the smaller ones.

lasermodelbasestencil.jpg   moviepiclasermodel.jpg

lasermodelvasa.jpg   lasermodelpaint.jpg

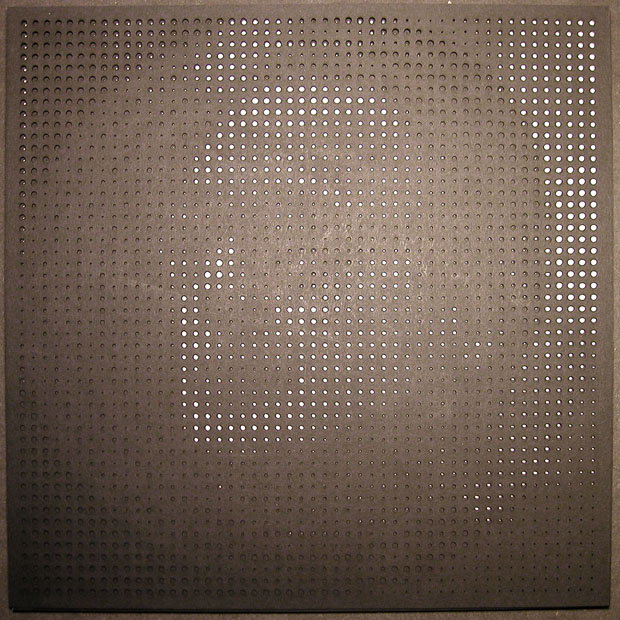

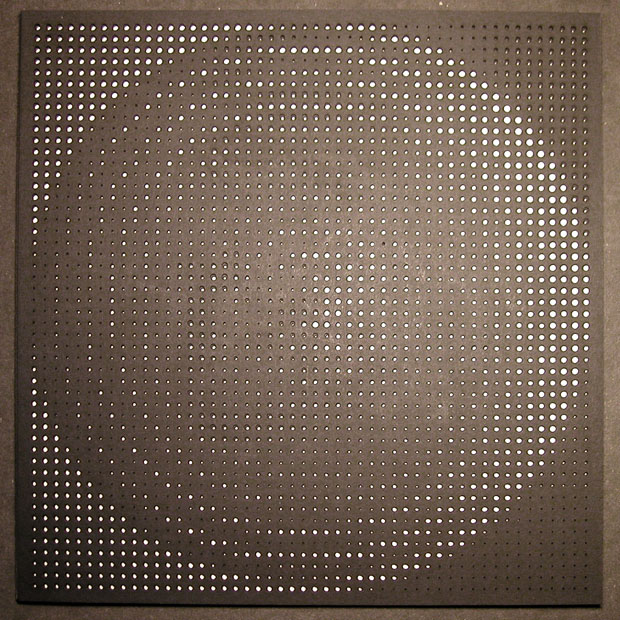

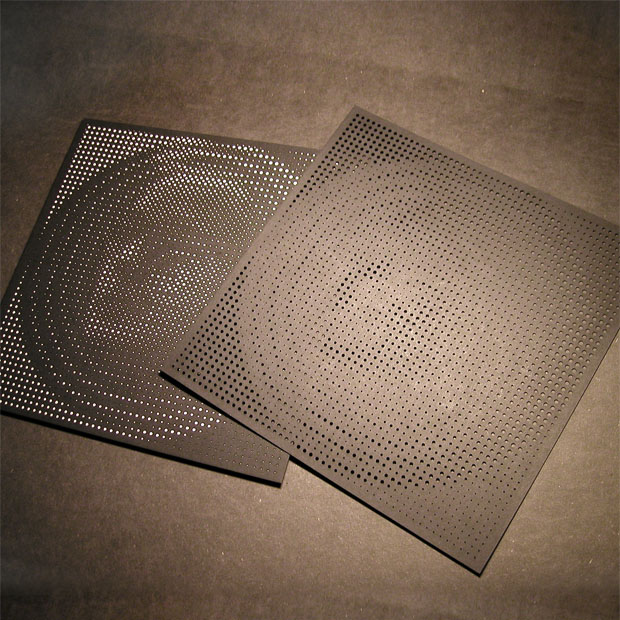

after removing the dots of the stamp by a cnc laser cutter, the sheet can be put over the base and moved slightly. a nice
moiré-effect can be seen and if the two sheets are in the right position, the portrait of vasarely or his painting become visible.

see "idea > > > vasarely" to have a look at the idea in the beginning

-- NDSMartinTann - 03 Nov 2005
