warm-up
milling > > > first steps
starting point
painting by robert indiana > > > love
 | | the idea was to take the flat painting of indiana into 3D. to achive that, the brightness values of the picture were transfered into height values. after a few more steps the result was ready to be milled by a 3-axis mill. |
workflow
modelling > > > generating 3D data

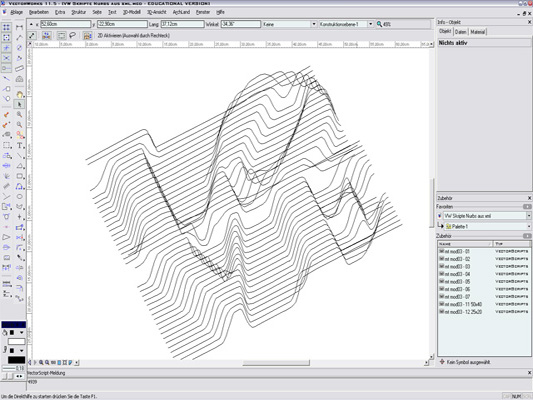

 | | the first step was to create an xml-file out of the image and translate it with an vectorscript into nurbs-curves as seen in the screenshot on the left. |

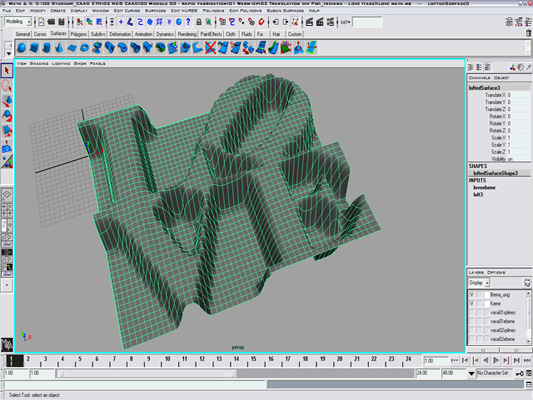

 | | the nurbs-curves were exported to maya to create a lofted surface. |

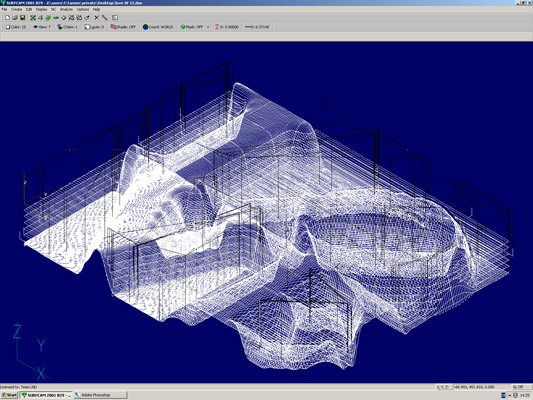

 | | after importing the lofted surface into SURFcam, the milling paths can be calculated. |

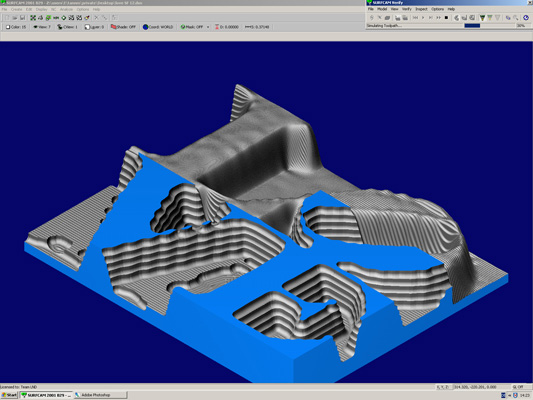

 | | to check if the settings are okay, the milling process can be simulated in SURFcam. in the end the data is saved as g-code and can be sent to the mill. |

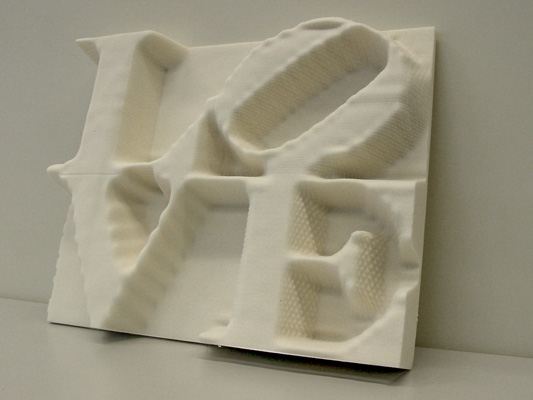

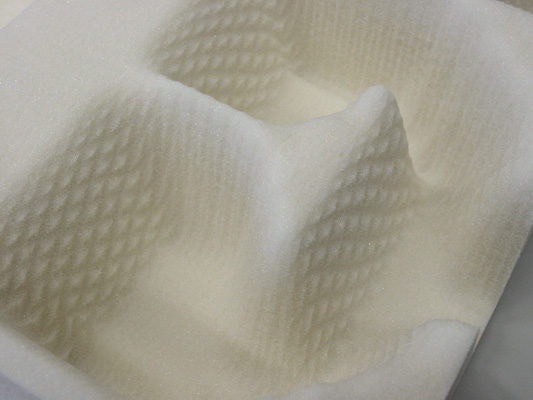

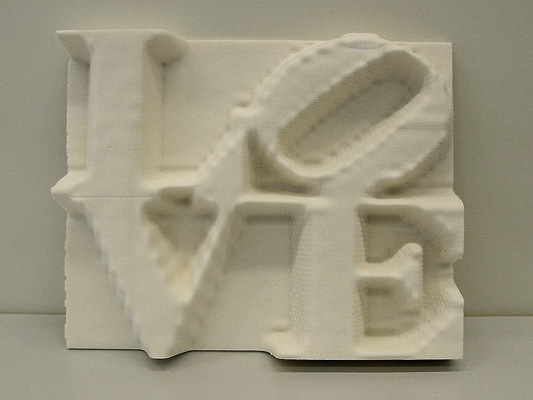

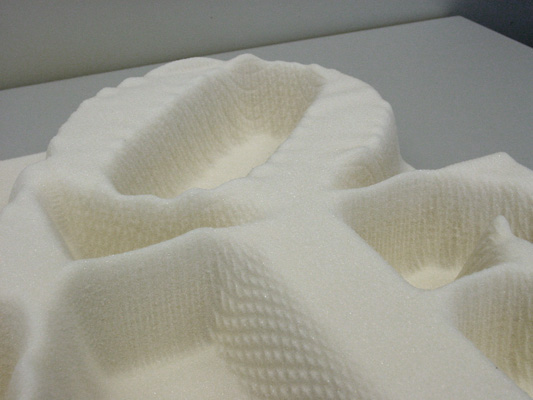

final result
milling > > > foam modell
-- NDSMartinTann - 19 Jan 2006
