assignment

pattern > > > sand | waves > > > final solutions 2D

• back to mainpage

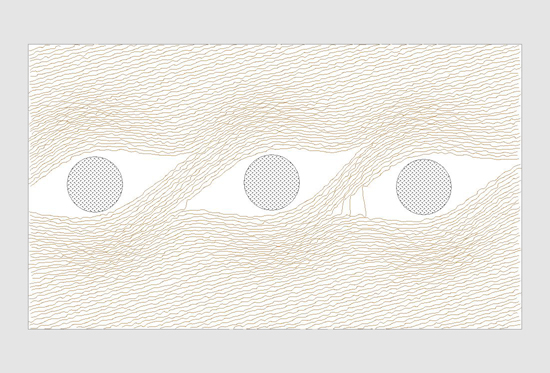

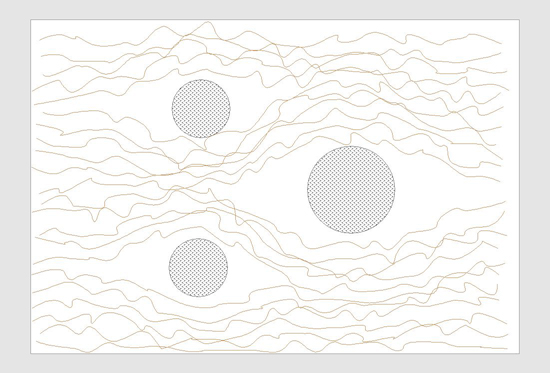

example I click on image to see picture of laser cut model

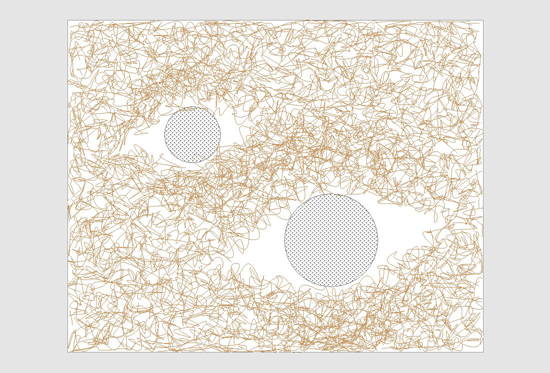

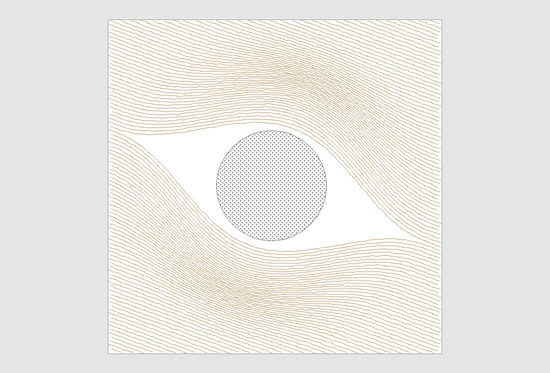

example II click on image to see picture of laser cut model

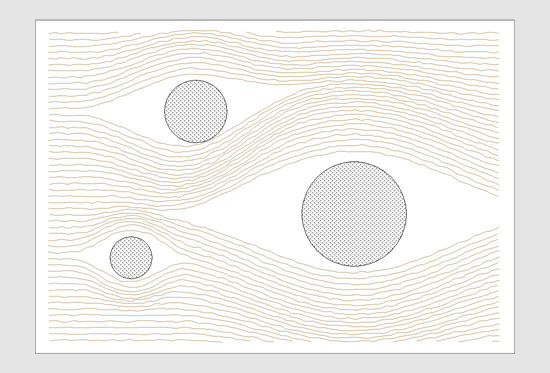

example III click on image to see larger picture + movie of drawing process

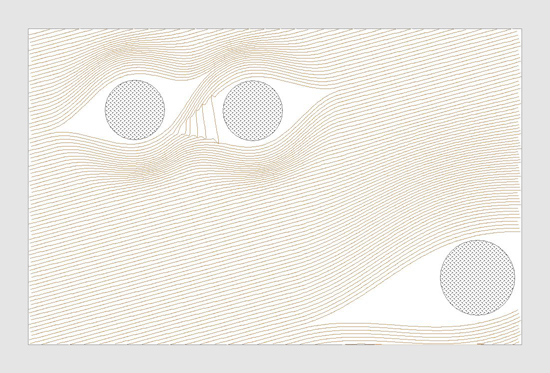

example IV click on image to see larger picture + movie of drawing process

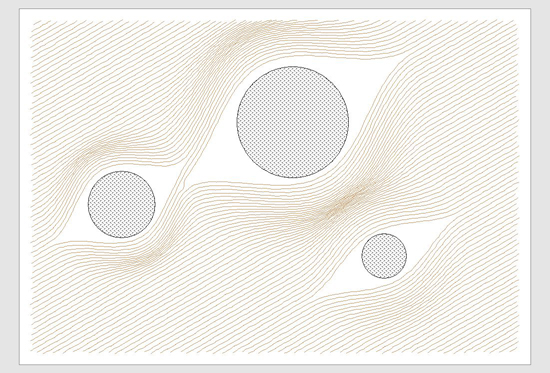

example V click on image to see larger picture + movie of drawing process

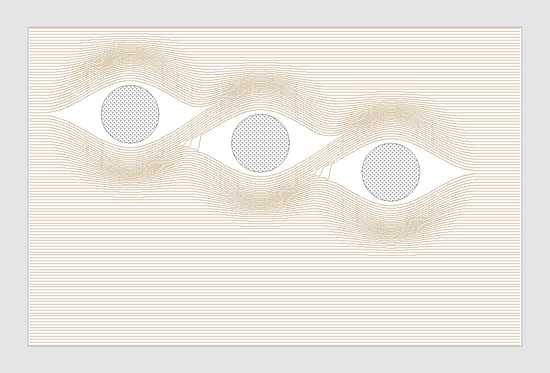

example VI click on image to see larger picture + movie of drawing process

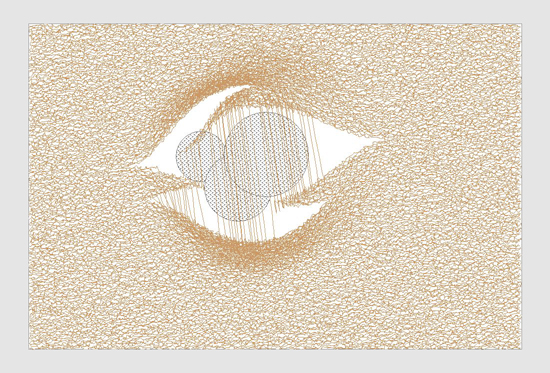

example VII click on image to see larger picture + movie of drawing process

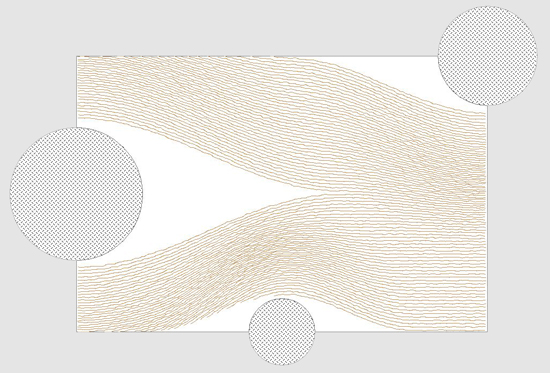

example VIII click on image to see larger picture + movie of drawing process

example IX click on image to see larger picture + movie of drawing process

example X click on image to see larger picture + movie of drawing process

plug-in

• mtSandWaves.vst:

script

PROCEDURE SandWaves;

VAR
   AreaQuest, DistPt1Set, DistPt2Set, DistPt3Set : INTEGER;
   AreaX1, AreaY1, AreaX2, AreaY2, AreaX3, AreaY3, AreaX4, AreaY4 : REAL;
   angle, density, intfer : REAL;
   Disturb1, Disturb2, Disturb3 : BOOLEAN;
   DistPtX1, DistPtY1, DistPtX2, DistPtY2, DistPtX3, DistPtY3 : REAL;
   InCheck1, InCheck2, InCheck3, InCheck4 : BOOLEAN;
   Stone1Rad, Stone2Rad, Stone3Rad : REAL;
   Effect1, Effect2, Effect3 : REAL;
   AreaX1ROT, AreaY1ROT, AreaX2ROT, AreaY2ROT, AreaX3ROT, AreaY3ROT, AreaX4ROT, AreaY4ROT : REAL;
   DistPtX1ROT, DistPtY1ROT, DistPtX2ROT, DistPtY2ROT, DistPtX3ROT, DistPtY3ROT : REAL;
   BorderPoly, Stone1, Stone2, Stone3 : HANDLE;
   RadAng : REAL;
   Diagonal :REAL;
   MaxArrayX, MaxArrayY : LONGINT;
   ArrayPt : DYNARRAY[,] OF POINT;
   i, k : INTEGER;
   XTemp, YTemp, YTemp1, YTemp2, YTemp3 : REAL;
   dist1, dist2, dist3 : REAL;
   DistField1, DistField2, DistField3 : REAL;

BEGIN


{######### SET AREA BY USER #########}


AreaQuest := IntDialog('Please select:
1 Define area by mouse.
2 Define area by keys.','1');

IF (AreaQuest = 2) THEN BEGIN
   AreaX1 := RealDialog('Please define area to be filled!
Set X value of bottom left point:','0.00');

   AreaY1 := RealDialog('Please define area to be filled!
Set Y value of bottom left point:','0.00');

   AreaX3 := RealDialog('Please define area to be filled!
Set X value of top right point:','100.00');
   WHILE (AreaX3 < AreaX1) DO BEGIN
   IF (AreaX3 < AreaX1) THEN AreaX3 := RealDialog('X value of top right point must be higher than X value of bottom left point. Try again!','100.00');
   END;

   AreaY3 := RealDialog('Please define area to be filled!
Set Y value of top right point:','100.00');
   WHILE (AreaY3 < AreaY1) DO BEGIN
   IF (AreaY3 < AreaY1) THEN AreaY3 := RealDialog('Y value of top right point must be higher than Y value of bottom left point. Try again!','100.00');
   END;
END;

IF (AreaQuest = 1) THEN BEGIN

   GetRect(AreaX1,AreaY1,AreaX3,AreaY3);

   WHILE (AreaX3 < AreaX1) OR (AreaY3 < AreaY1) DO BEGIN
      IF (AreaX3 < AreaX1) THEN AlrtDialog('Sorry, X value of second point must be higher than X value of first point. Try again!');
      IF (AreaY3 < AreaY1) THEN AlrtDialog('Sorry, Y value of second point must be higher than Y value of first point. Try again!');
      GetRect(AreaX1,AreaY1,AreaX3,AreaY3);
   END;
END;


{######### CREATE BORDER POLY #########}


PenFore(20000,20000,20000);
PenSize(140);
FillPat(0);
ClosePoly;
BeginPoly;
   AddPoint(AreaX1,AreaY1);
   AddPoint(AreaX1,AreaY3);
   AddPoint(AreaX3,AreaY3);
   AddPoint(AreaX3,AreaY1);
EndPoly;

BorderPoly := LObject;

ReDrawAll;


{######### SET OTHER PARAMETERS BY USER #########}


angle := RealDialog('Please enter angle of texture (in degrees):','45');
   IF (angle > 360) OR (angle < -360) THEN BEGIN
      WHILE (angle > 360) OR (angle < -360) DO BEGIN
         angle := RealDialog('Angle value must be between -360 and 360! Set value again:','45');
      END;
   END;

density := RealDialog('Please choose density:
(Values between 0.1 (dense) and 10 (loose) recommended!)','1');

intfer := RealDialog('Please set interference:
(Values between 0 and 1 recommended!)','0.50');


{######### SET DISTURBANCE POINTS BY USER #########}


Disturb1 := YNDialog('Do you wish to set disturbance points?');

PenFore(30000,30000,30000);
PenSize(70);
FillPat(17);

IF Disturb1 = TRUE THEN BEGIN
   DistPt1Set := IntDialog('Please select:
1 Set disturbance points by mouse.
2 Set disturbance points by keys.','1');

   IF (DistPt1Set = 2) THEN BEGIN
      WHILE (InCheck1 = FALSE) DO BEGIN
         DistPtX1 := RealDialog('Set X value of first disturbance point:','10.00');
         DistPtY1 := RealDialog('Set Y value of first disturbance point:','10.00');
         InCheck1 := PtInPoly(DistPtX1,DistPtY1,BorderPoly);
         IF InCheck1 = FALSE THEN AlrtDialog('Choosen point is not in defined area. Please set X and Y values again!');
      END;
      Locus(DistPtX1,DistPtY1);
      Stone1 := LObject;

      Stone1Rad := RealDialog('Set size of first disturbance point:
(Values between 1 and 20 recommended!)','5.00');
      Oval(DistPtX1-Stone1Rad,DistPtY1-Stone1Rad,DistPtX1+Stone1Rad,DistPtY1+Stone1Rad);
      ReDrawAll;

      Effect1 := RealDialog('Set shifting effect of first disturbance point:
(Values between 2 and 5 recommended!)','3.00');

      Disturb2 := YNDialog('Do you wish to set another disturbance point?');

      IF Disturb2 = TRUE THEN BEGIN
         WHILE (InCheck2 = FALSE) DO BEGIN
            DistPtX2 := RealDialog('Set X value of second disturbance point:','20.00');
            DistPtY2 := RealDialog('Set Y value of second disturbance point:','20.00');
            InCheck2 := PtInPoly(DistPtX2,DistPtY2,BorderPoly);
            IF InCheck2 = FALSE THEN AlrtDialog('Choosen point is not in defined area. Please set X and Y values again!');
         END;
         Locus(DistPtX2,DistPtY2);
         Stone2 := LObject;

         Stone2Rad := RealDialog('Set size of second disturbance point:
(Values between 1 and 20 recommended!)','5.00');
         Oval(DistPtX2-Stone2Rad,DistPtY2-Stone2Rad,DistPtX2+Stone2Rad,DistPtY2+Stone2Rad);
         ReDrawAll;

         Effect2 := RealDialog('Set shifting effect of second disturbance point:
(Values between 2 and 5 recommended!)','3.00');

         Disturb3 := YNDialog('Do you wish to set another disturbance point?');
      END;

      IF Disturb3 = TRUE THEN BEGIN
         WHILE (InCheck3 = FALSE) DO BEGIN
            DistPtX3 := RealDialog('Set X value of third disturbance point:','30.00');
            DistPtY3 := RealDialog('Set Y value of third disturbance point:','30.00');
            InCheck3 := PtInPoly(DistPtX3,DistPtY3,BorderPoly);
            IF InCheck3 = FALSE THEN AlrtDialog('Choosen point is not in defined area. Please set X and Y values again!');
         END;
         Locus(DistPtX3,DistPtY3);
         Stone3 := LObject;

         Stone3Rad := RealDialog('Set size of third disturbance point:
(Values between 1 and 20 recommended!)','5.00');
         Oval(DistPtX3-Stone3Rad,DistPtY3-Stone3Rad,DistPtX3+Stone3Rad,DistPtY3+Stone3Rad);
         ReDrawAll;

         Effect3 := RealDialog('Set shifting effect of third disturbance point:
(Values between 2 and 5 recommended!)','3.00');

         AlrtDialog('This should be enough - no more disturbance points!');
      END;
   END;

   IF (DistPt1Set = 1) THEN BEGIN
      WHILE (InCheck1 = FALSE) DO BEGIN
         GetPt(DistPtX1,DistPtY1);
         InCheck1 := PtInPoly(DistPtX1,DistPtY1,BorderPoly);
         IF InCheck1 = FALSE THEN AlrtDialog('Choosen point is not in defined area. Please click again!');
      END;
      Locus(DistPtX1,DistPtY1);
      Stone1 := LObject;

      Stone1Rad := RealDialog('Set size of first disturbance point:
(Values between 1 and 20 recommended!)','5.00');
      Oval(DistPtX1-Stone1Rad,DistPtY1-Stone1Rad,DistPtX1+Stone1Rad,DistPtY1+Stone1Rad);
      ReDrawAll;

      Effect1 := RealDialog('Set shifting effect of first disturbance point:
(Values between 2 and 5 recommended!)','3.00');

      Disturb2 := YNDialog('Do you wish to set another disturbance point?');

      IF Disturb2 = TRUE THEN BEGIN
         WHILE (InCheck2 = FALSE) DO BEGIN
            GetPt(DistPtX2,DistPtY2);
            InCheck2 := PtInPoly(DistPtX2,DistPtY2,BorderPoly);
            IF InCheck2 = FALSE THEN AlrtDialog('Choosen point is not in defined area. Please click again!');
         END;
         Locus(DistPtX2,DistPtY2);
         Stone2 := LObject;

         Stone2Rad := RealDialog('Set size of second disturbance point:
(Values between 1 and 20 recommended!)','5.00');
         Oval(DistPtX2-Stone2Rad,DistPtY2-Stone2Rad,DistPtX2+Stone2Rad,DistPtY2+Stone2Rad);
         ReDrawAll;

         Effect2 := RealDialog('Set shifting effect of second disturbance point:
(Values between 2 and 5 recommended!)','3.00');

         Disturb3 := YNDialog('Do you wish to set another disturbance point?');
      END;

      IF Disturb3 = TRUE THEN BEGIN
         WHILE (InCheck3 = FALSE) DO BEGIN
            GetPt(DistPtX3,DistPtY3);
            InCheck3 := PtInPoly(DistPtX3,DistPtY3,BorderPoly);
            IF InCheck3 = FALSE THEN AlrtDialog('Choosen point is not in defined area. Please click again!');
         END;
         Locus(DistPtX3,DistPtY3);
         Stone3 := LObject;

         Stone3Rad := RealDialog('Set size of third disturbance point:
(Values between 1 and 20 recommended!)','5.00');
         Oval(DistPtX3-Stone3Rad,DistPtY3-Stone3Rad,DistPtX3+Stone3Rad,DistPtY3+Stone3Rad);
         ReDrawAll;

         Effect3 := RealDialog('Set shifting effect of third disturbance point:
(Values between 2 and 5 recommended!)','3.00');

         AlrtDialog('This should be enough - no more disturbance points!');
      END;
   END;
END;

IF Disturb1 = FALSE THEN AlrtDialog('What a shame! You miss the best part...');


{######### ROTATE BORDER POLY AND DISTURBANCE LOCI (ANGLE) #########}


RotatePoint(AreaX1,AreaY1,-angle);

ReDrawAll;

GetPolyPt(BorderPoly, 1, AreaX1ROT, AreaY1ROT);
GetPolyPt(BorderPoly, 2, AreaX2ROT, AreaY2ROT);
GetPolyPt(BorderPoly, 3, AreaX3ROT, AreaY3ROT);
GetPolyPt(BorderPoly, 4, AreaX4ROT, AreaY4ROT);

GetLocPt(Stone1, DistPtX1ROT ,DistPtY1ROT);
GetLocPt(Stone2, DistPtX2ROT ,DistPtY2ROT);
GetLocPt(Stone3, DistPtX3ROT ,DistPtY3ROT);


{######### CREATE WAVES #########}


{### ALLOCATE DYNARRAY ###}

IF (angle >= 0) AND (angle < 90) THEN BEGIN
   MaxArrayX := Trunc((AreaX3ROT - AreaX1ROT) / density);
   MaxArrayY := Trunc((AreaY2ROT - AreaY4ROT) / density);
END;

IF (angle >= 90) AND (angle < 180) THEN BEGIN
   MaxArrayX := Trunc((AreaX2ROT - AreaX4ROT) / density);
   MaxArrayY := Trunc((AreaY1ROT - AreaY3ROT) / density);
END;

IF (angle >= 180) AND (angle < 270) THEN BEGIN
   MaxArrayX := Trunc((AreaX1ROT - AreaX3ROT) / density);
   MaxArrayY := Trunc((AreaY4ROT - AreaY2ROT) / density);
END;

IF (angle >= 270) AND (angle <= 360) THEN BEGIN
   MaxArrayX := Trunc((AreaX4ROT - AreaX2ROT) / density);
   MaxArrayY := Trunc((AreaY3ROT - AreaY1ROT) / density);
END;



IF (angle >= -90) AND (angle < 0) THEN BEGIN
   MaxArrayX := Trunc((AreaX4ROT - AreaX2ROT) / density);
   MaxArrayY := Trunc((AreaY3ROT - AreaY1ROT) / density);
END;

IF (angle >= -180) AND (angle < -90) THEN BEGIN
   MaxArrayX := Trunc((AreaX1ROT - AreaX3ROT) / density);
   MaxArrayY := Trunc((AreaY4ROT - AreaY2ROT) / density);
END;

IF (angle >= -270) AND (angle < -180) THEN BEGIN
   MaxArrayX := Trunc((AreaX2ROT - AreaX4ROT) / density);
   MaxArrayY := Trunc((AreaY1ROT - AreaY3ROT) / density);
END;

IF (angle >= -360) AND (angle < -270) THEN BEGIN
   MaxArrayX := Trunc((AreaX3ROT - AreaX1ROT) / density);
   MaxArrayY := Trunc((AreaY2ROT - AreaY4ROT) / density);
END;


ALLOCATE ArrayPt[1..MaxArrayX,1..MaxArrayY];

{### FILL ARRAY WITH POINTS ###}

FOR i := 1 TO MaxArrayY DO BEGIN
   PenFore(52000,39000,26000);
   PenSize(70);
   FillPat(0);
   Smooth(2);
   OpenPoly;
   BeginPoly;
   FOR k := 1 TO MaxArrayX DO BEGIN

      {### DEFINE AREA TO BE CHECKED FOR POLYPOINTS ###}

      IF (AreaX1ROT <= AreaX2ROT) THEN BEGIN
         IF (AreaX1ROT <= AreaX3ROT) THEN BEGIN
            IF (AreaX1ROT <= AreaX4ROT) THEN XTemp := AreaX1ROT + (k*density) - (0.5 * density);
            IF (AreaX1ROT > AreaX4ROT) THEN XTemp := AreaX4ROT + (k*density) - (0.5 * density);
         END;
         IF (AreaX1ROT > AreaX3ROT) THEN BEGIN
            IF (AreaX3ROT <= AreaX4ROT) THEN XTemp := AreaX3ROT + (k*density) - (0.5 * density);
            IF (AreaX3ROT > AreaX4ROT) THEN XTemp := AreaX4ROT + (k*density) - (0.5 * density);
         END;
      END;
      IF (AreaX1ROT > AreaX2ROT) THEN BEGIN
         IF (AreaX2ROT <= AreaX3ROT) THEN BEGIN
            IF (AreaX2ROT <= AreaX4ROT) THEN XTemp := AreaX2ROT + (k*density) - (0.5 * density);
            IF (AreaX2ROT > AreaX4ROT) THEN XTemp := AreaX4ROT + (k*density) - (0.5 * density);
         END;
         IF (AreaX2ROT > AreaX3ROT) THEN BEGIN
            IF (AreaX3ROT <= AreaX4ROT) THEN XTemp := AreaX3ROT + (k*density) - (0.5 * density);
            IF (AreaX3ROT > AreaX4ROT) THEN XTemp := AreaX4ROT + (k*density) - (0.5 * density);
         END;
      END;

      IF (AreaY1ROT <= AreaY2ROT) THEN BEGIN
         IF (AreaY1ROT <= AreaY3ROT) THEN BEGIN
            IF (AreaY1ROT <= AreaY4ROT) THEN YTemp := AreaY1ROT + (i*density) - (0.5 * density);
            IF (AreaY1ROT > AreaY4ROT) THEN YTemp := AreaY4ROT + (i*density) - (0.5 * density);
         END;
         IF (AreaY1ROT > AreaY3ROT) THEN BEGIN
            IF (AreaY3ROT <= AreaY4ROT) THEN YTemp := AreaY3ROT + (i*density) - (0.5 * density);
            IF (AreaY3ROT > AreaY4ROT) THEN YTemp := AreaY4ROT + (i*density) - (0.5 * density);
         END;
      END;
      IF (AreaY1ROT > AreaY2ROT) THEN BEGIN
         IF (AreaY2ROT <= AreaY3ROT) THEN BEGIN
            IF (AreaY2ROT <= AreaY4ROT) THEN YTemp := AreaY2ROT + (i*density) - (0.5 * density);
            IF (AreaY2ROT > AreaY4ROT) THEN YTemp := AreaY4ROT + (i*density) - (0.5 * density);
         END;
         IF (AreaY2ROT > AreaY3ROT) THEN BEGIN
            IF (AreaY3ROT <= AreaY4ROT) THEN YTemp := AreaY3ROT + (i*density) - (0.5 * density);
            IF (AreaY3ROT > AreaY4ROT) THEN YTemp := AreaY4ROT + (i*density) - (0.5 * density);
         END;
      END;

      {### CONSIDER DISTURBANCE POINTS ###}

      IF Disturb1 = TRUE THEN BEGIN

         {### DETERMINE DISTANCE TO DISTURBANCE POINT 1 ###}

         dist1 := sqrt(sqr(DistPtX1ROT - XTemp) + sqr(DistPtY1ROT - YTemp));

         {### SHIFT POINTS OF POLY (DEPENDING ON DISTANCE TO DISTURBANCE POINT) ###}

         IF dist1 < (Effect1*Stone1Rad) THEN BEGIN
            DistField1 := Deg2Rad(180 / (Effect1*Stone1Rad / dist1));
            IF YTemp < DistPtY1ROT THEN YTemp1 := YTemp - (0.55*Stone1Rad * (Cos(DistField1) + 1));
            IF YTemp = DistPtY1ROT THEN YTemp1 := YTemp - (0.55*Stone1Rad * (Cos(DistField1) + 1));
            IF YTemp > DistPtY1ROT THEN YTemp1 := YTemp + (0.55*Stone1Rad * (Cos(DistField1) + 1));
         END;

         IF dist1 >= (Effect1*Stone1Rad) THEN YTemp1 := YTemp;

      END;

      IF Disturb1 = FALSE THEN YTemp1 := YTemp;


      IF Disturb2 = TRUE THEN BEGIN

         {### DETERMINE DISTANCE TO DISTURBANCE POINT 2 ###}

         dist2 := sqrt(sqr(DistPtX2ROT - XTemp) + sqr(DistPtY2ROT - YTemp1));

         {### SHIFT POINTS OF POLY (DEPENDING ON DISTANCE TO DISTURBANCE POINT) ###}

         IF dist2 < (Effect2*Stone2Rad) THEN BEGIN
            DistField2 := Deg2Rad(180 / (Effect2*Stone2Rad / dist2));
            IF YTemp1 < DistPtY2ROT THEN YTemp2 := YTemp1 - (0.55*Stone2Rad * (Cos(DistField2) + 1));
            IF YTemp1 = DistPtY2ROT THEN YTemp2 := YTemp1 - (0.55*Stone2Rad * (Cos(DistField2) + 1));
            IF YTemp1 > DistPtY2ROT THEN YTemp2 := YTemp1 + (0.55*Stone2Rad * (Cos(DistField2) + 1));
         END;

         IF dist2 >= (Effect2*Stone2Rad) THEN YTemp2 := YTemp1;

      END;

      IF Disturb2 = FALSE THEN YTemp2 := YTemp1;


      IF Disturb3 = TRUE THEN BEGIN

         {### DETERMINE DISTANCE TO DISTURBANCE POINT 3 ###}

         dist3 := sqrt(sqr(DistPtX3ROT - XTemp) + sqr(DistPtY3ROT - YTemp2));

         {### SHIFT POINTS OF POLY (DEPENDING ON DISTANCE TO DISTURBANCE POINT) ###}

         IF dist3 < (Effect3*Stone3Rad) THEN BEGIN
            DistField3 := Deg2Rad(180 / (Effect3*Stone3Rad / dist3));
            IF YTemp2 < DistPtY3ROT THEN YTemp3 := YTemp2 - (0.55*Stone3Rad * (Cos(DistField3) + 1));
            IF YTemp2 = DistPtY3ROT THEN YTemp3 := YTemp2 - (0.55*Stone3Rad * (Cos(DistField3) + 1));
            IF YTemp2 > DistPtY3ROT THEN YTemp3 := YTemp2 + (0.55*Stone3Rad * (Cos(DistField3) + 1));
         END;

         IF dist3 >= (Effect3*Stone3Rad) THEN YTemp3 := YTemp2;

      END;

      IF Disturb3 = FALSE THEN YTemp3 := YTemp2;

      {### GRID OF POINTS TO CREATE "WAVEPOLYS" ###}

      ArrayPt[k,i].x := XTemp + (intfer * (random-0.5) * density);
      ArrayPt[k,i].y := YTemp3 + (intfer * (random-0.5) * density);

      InCheck4 := PtInPoly(ArrayPt[k,i].x, ArrayPt[k,i].y, BorderPoly);
      IF InCheck4 = TRUE THEN AddPoint(ArrayPt[k,i].x, ArrayPt[k,i].y);
   END;
   EndPoly;
   ReDrawAll;
END;


{######### ROTATE WHOLE PATTERN TO ORIGINAL POSITION #########}


SelectAll;
RotatePoint(AreaX1,AreaY1,angle);
DSelectAll;


END;

Run(SandWaves);

• top of page

-- NDSMartinTann - 03 Nov 2005
