MAS ETH ARCH/CAAD - 2005/06 - STUDENT PAGES
Master of Advanced Studies in Architecture, Specialization in Computer Aided Architectural Design | 065-0005/6
Supervision: Prof. Dr. Ludger Hovestadt, Philipp Schaerer
Chair of CAAD, ETH Zurich







assignment

pattern > > > sand | waves > > > final solutions 3D







example I

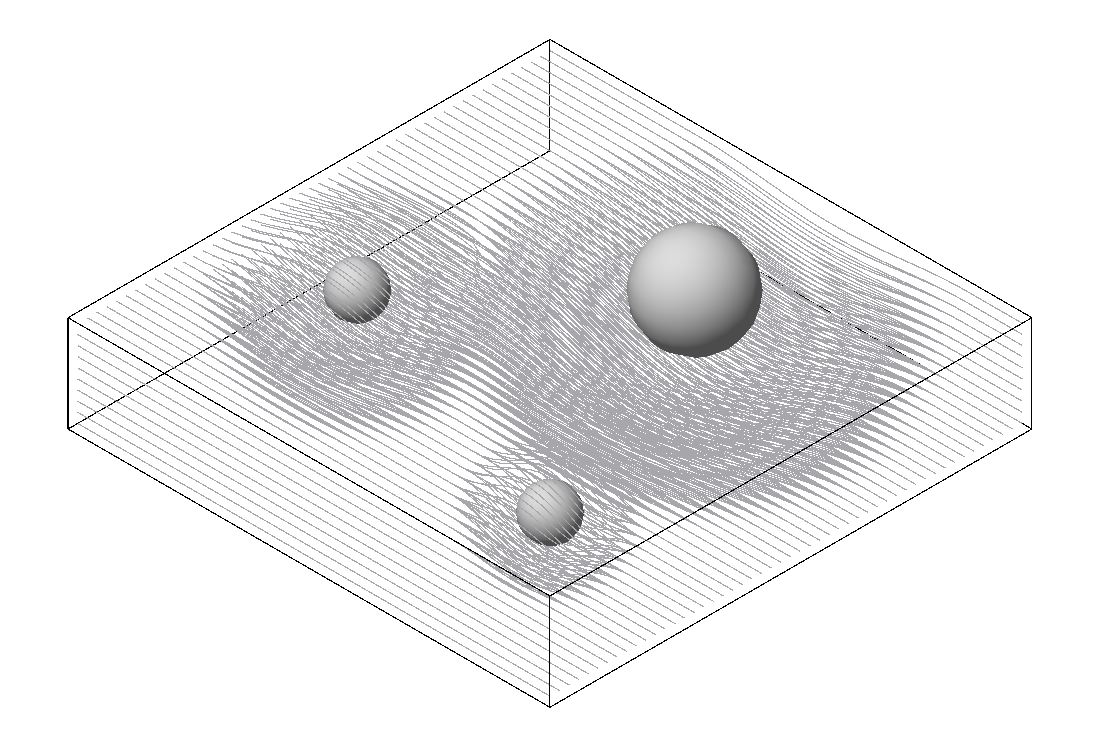

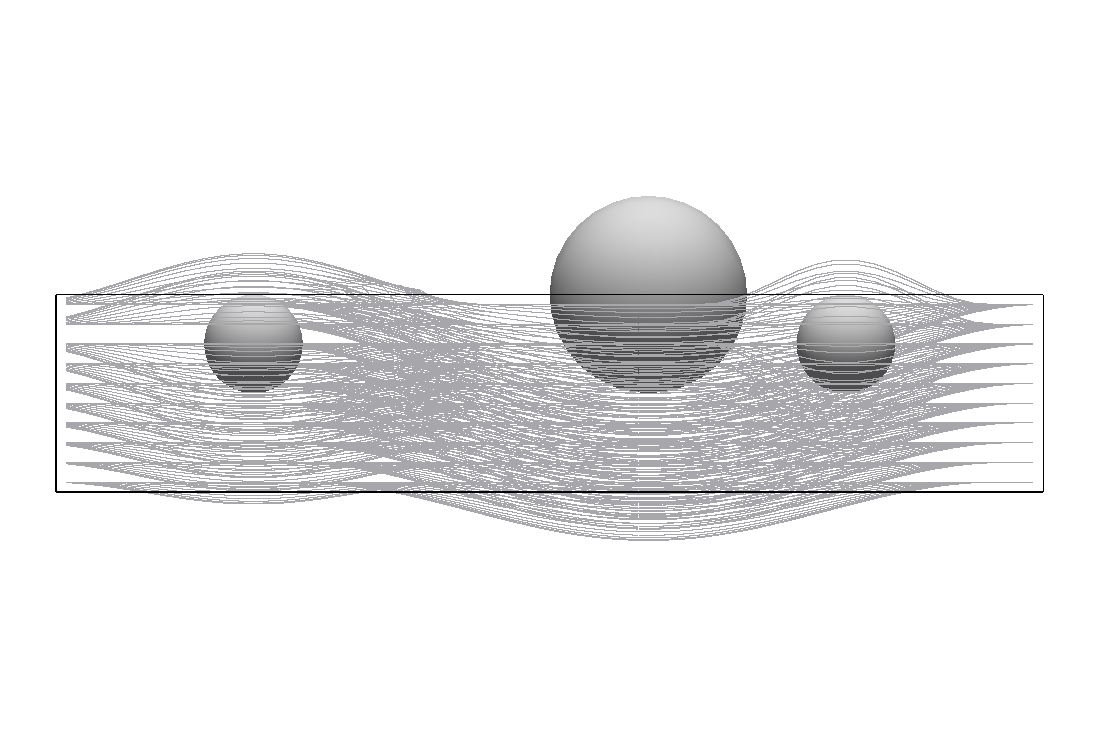

pattern3D-03Beispiele04iso.JPG pattern3D-03Beispiele04vorne.JPG

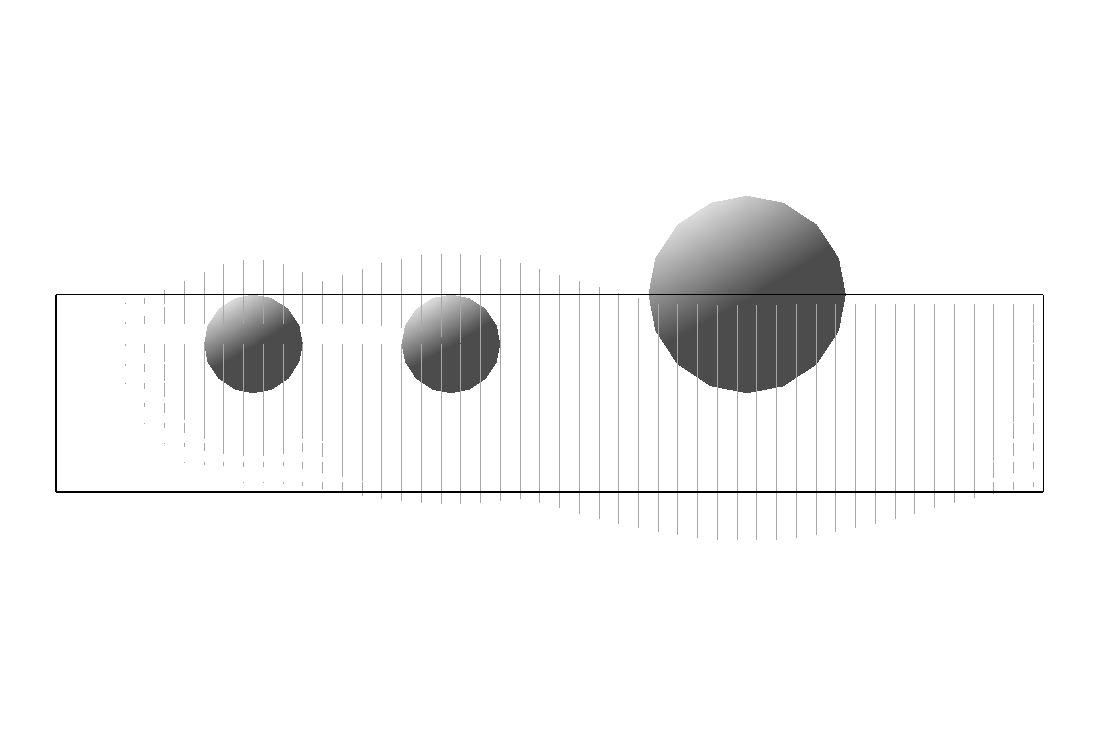

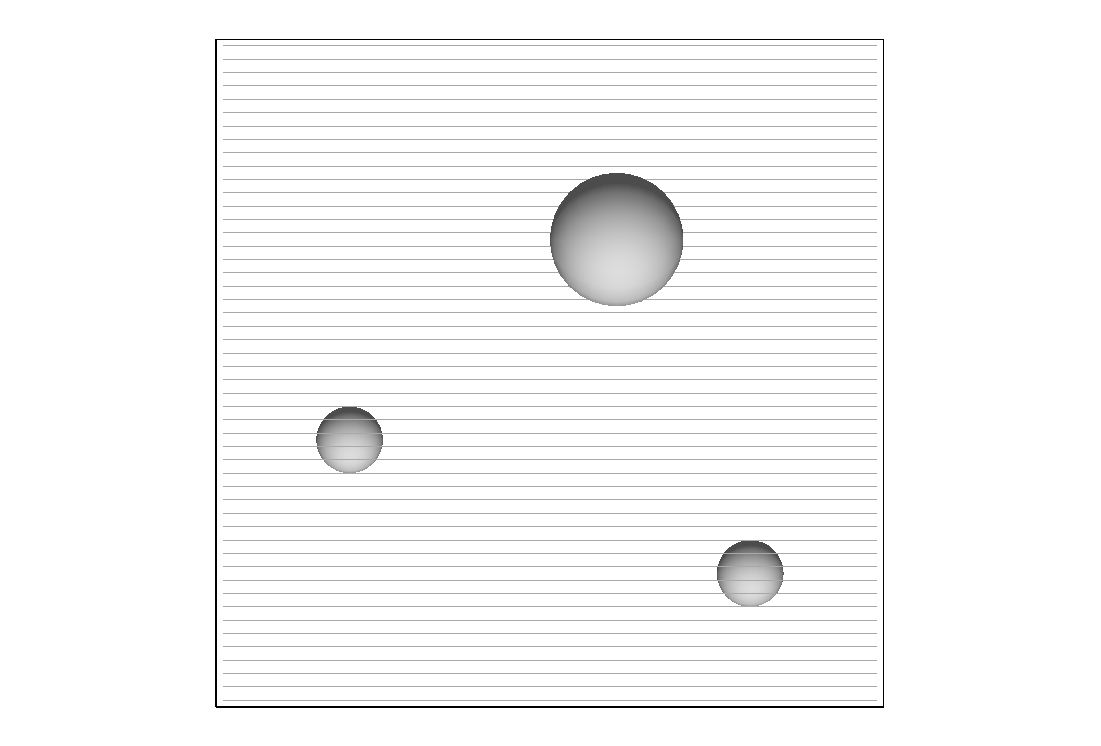

pattern3D-03Beispiele04rechts.JPG pattern3D-03Beispiele04oben.JPG



example II

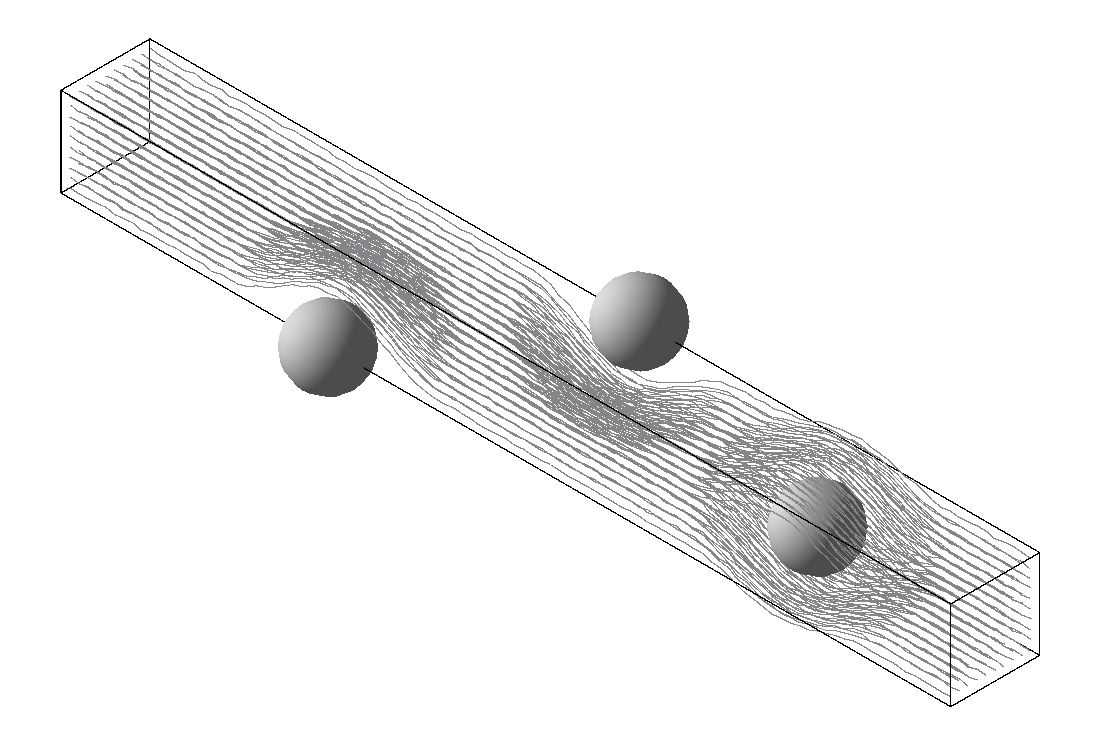

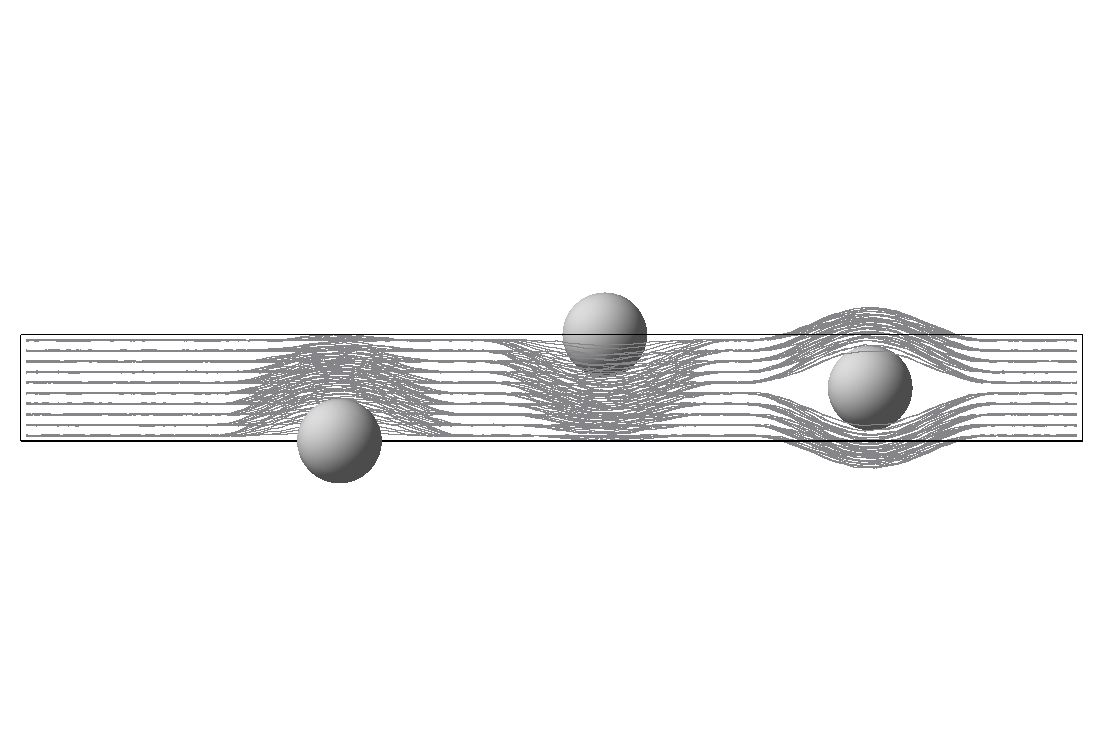

pattern3D-03Beispiele03iso.JPG pattern3D-03Beispiele03vorne.JPG

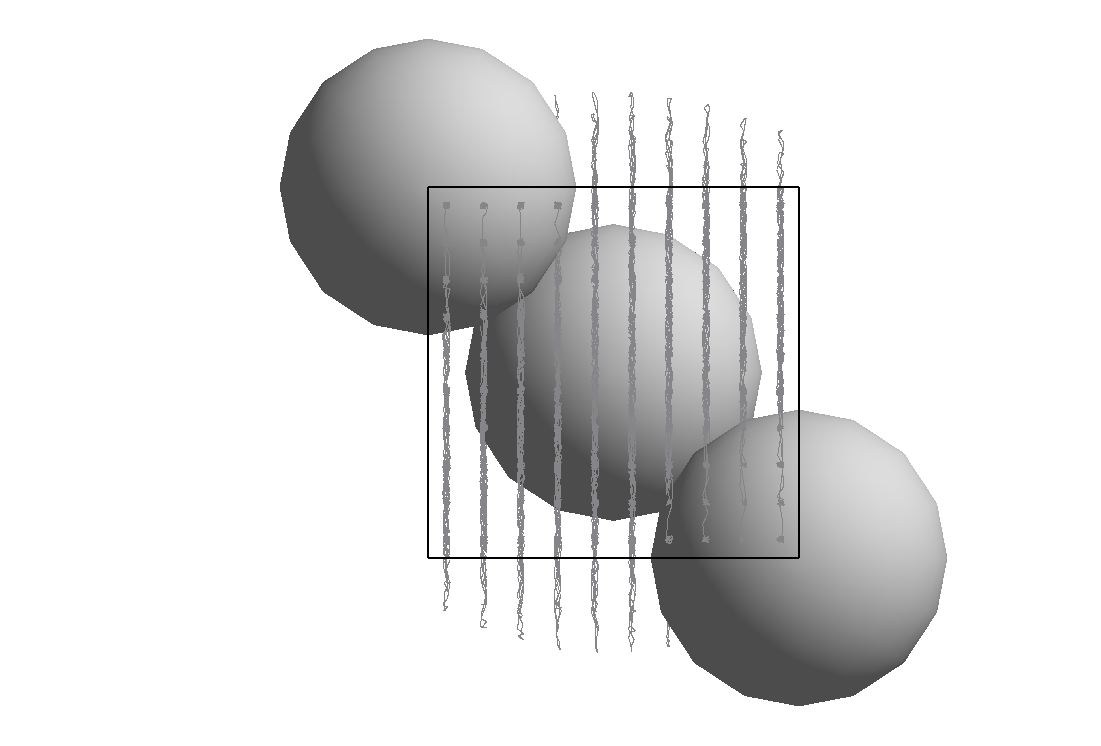

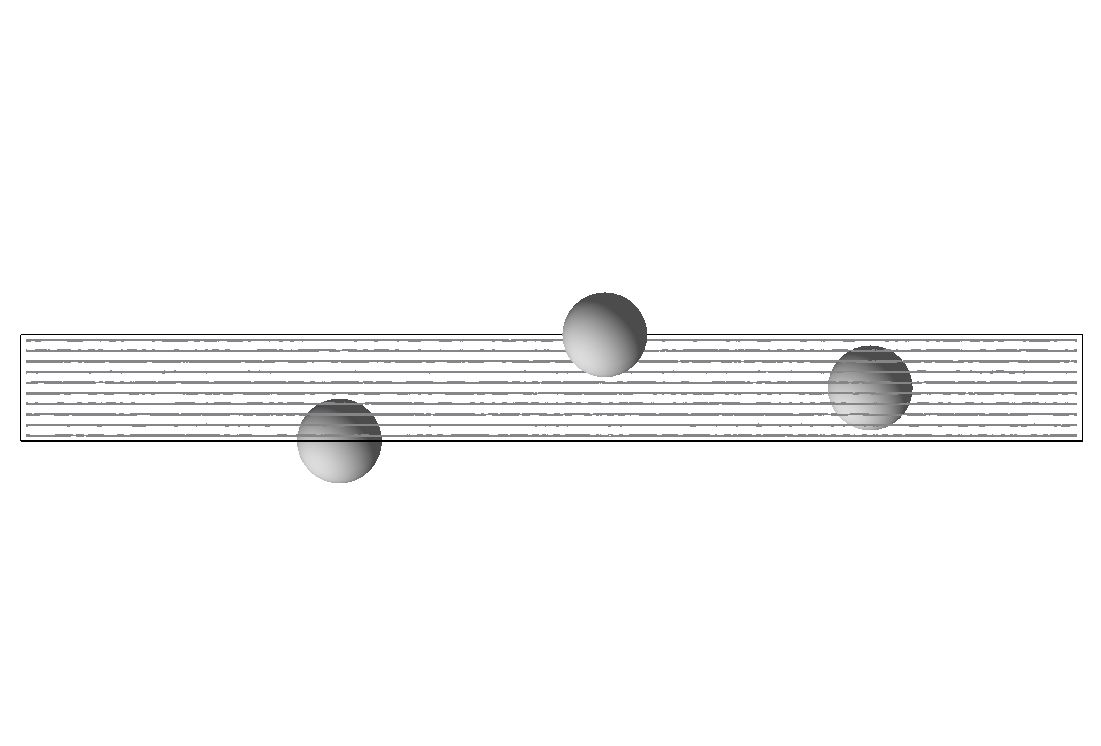

pattern3D-03Beispiele03oben.JPG pattern3D-03Beispiele03links.JPG



example III

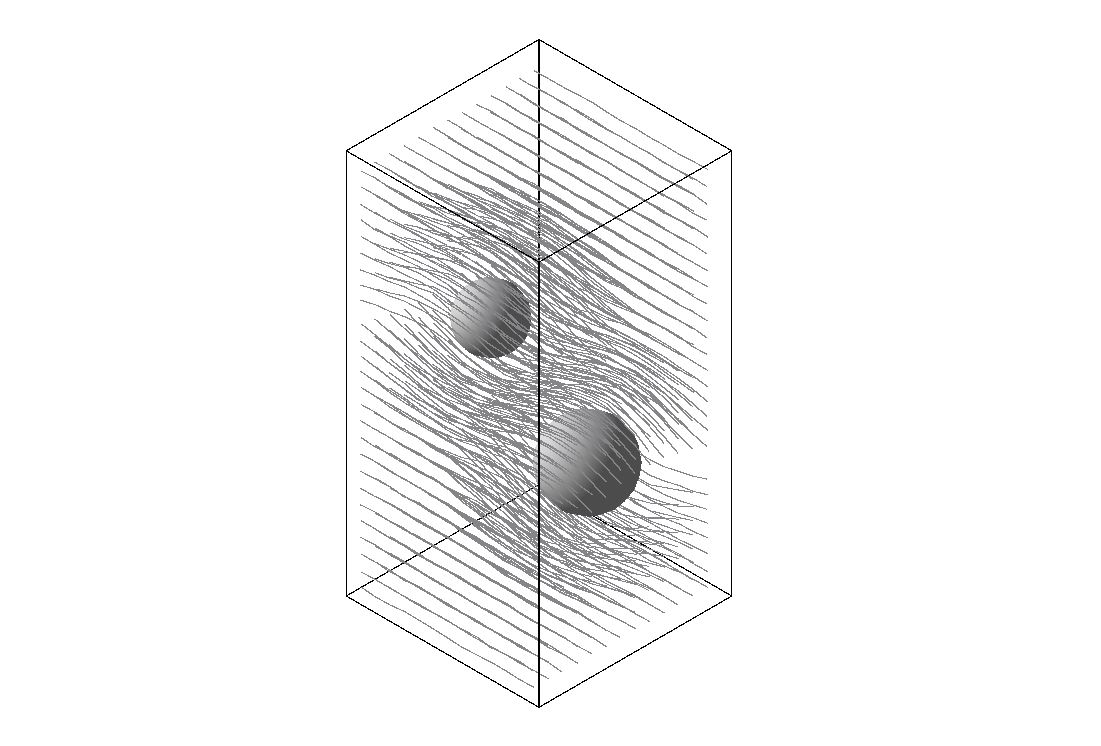

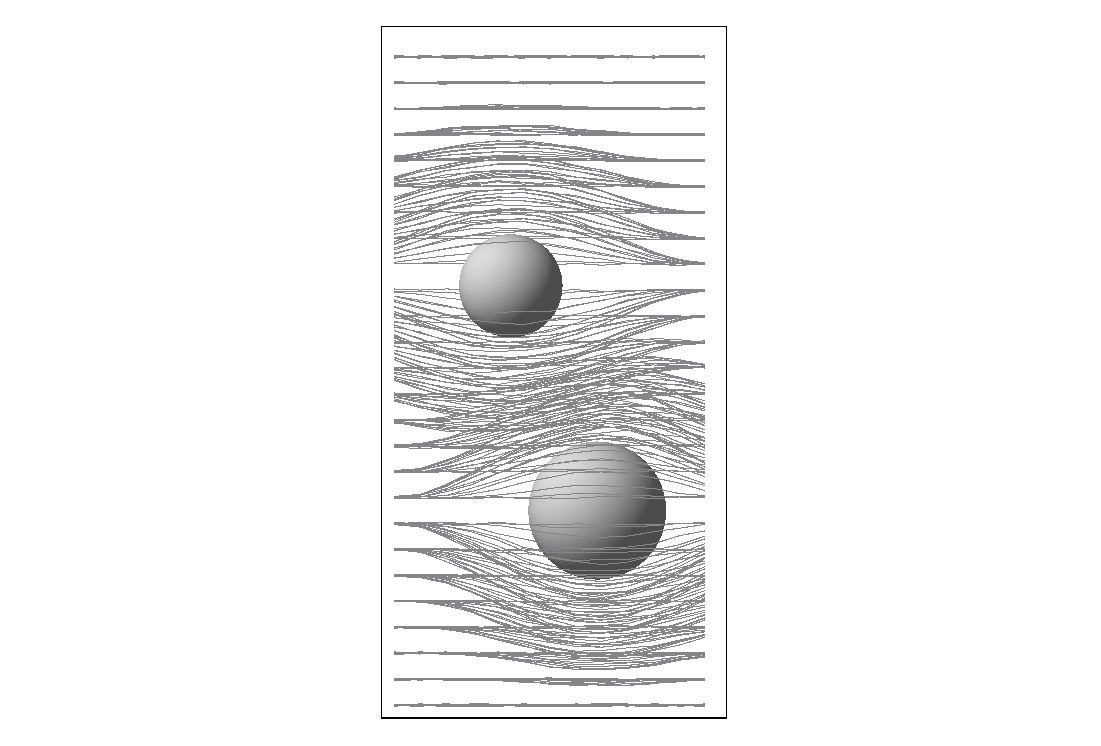

pattern3D-03Beispiele02iso.JPG pattern3D-03Beispiele02vorne.JPG

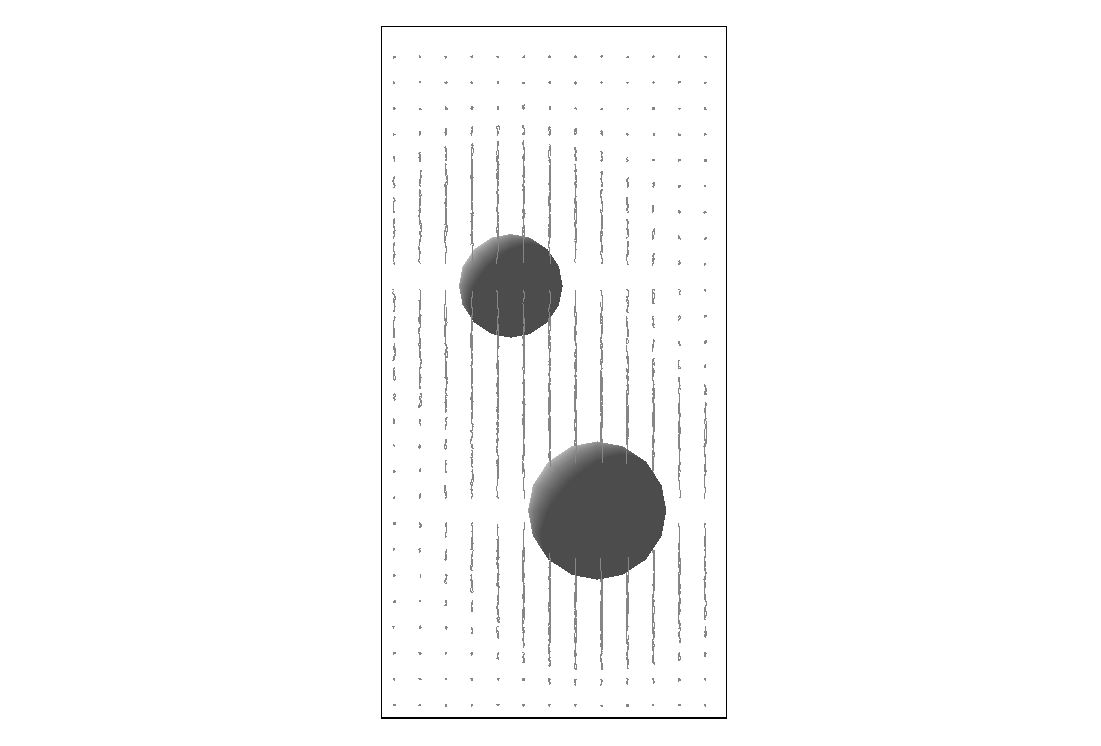

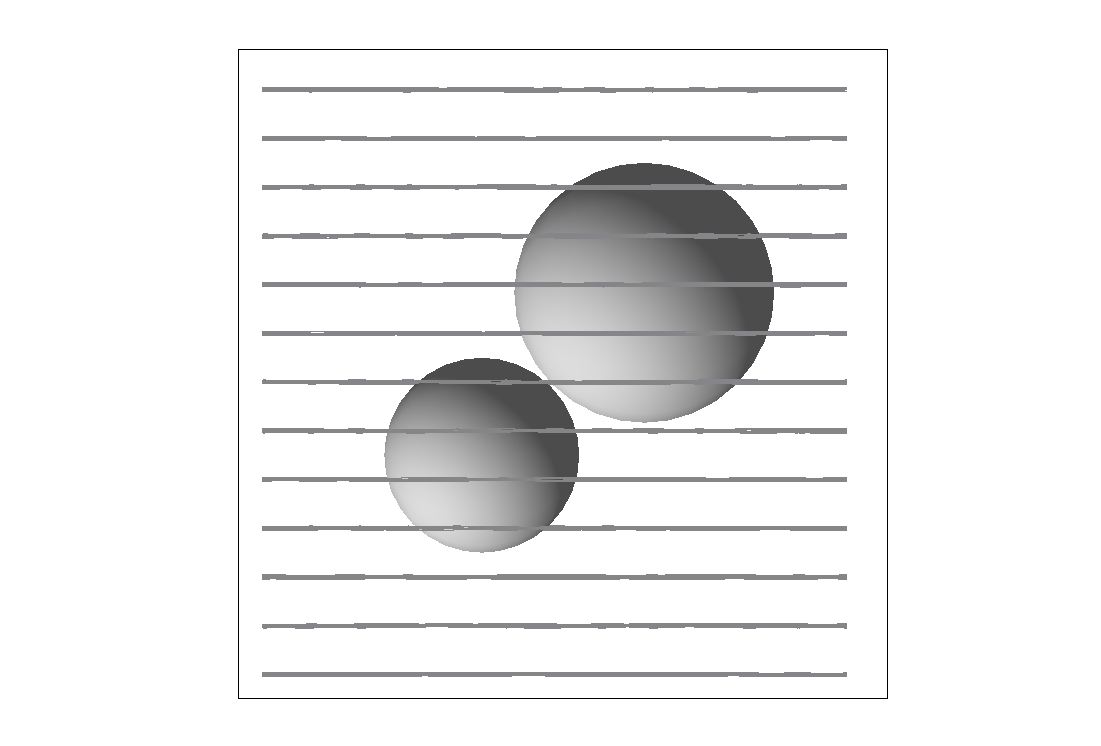

pattern3D-03Beispiele02rechts.JPG pattern3D-03Beispiele02oben.JPG



example IV

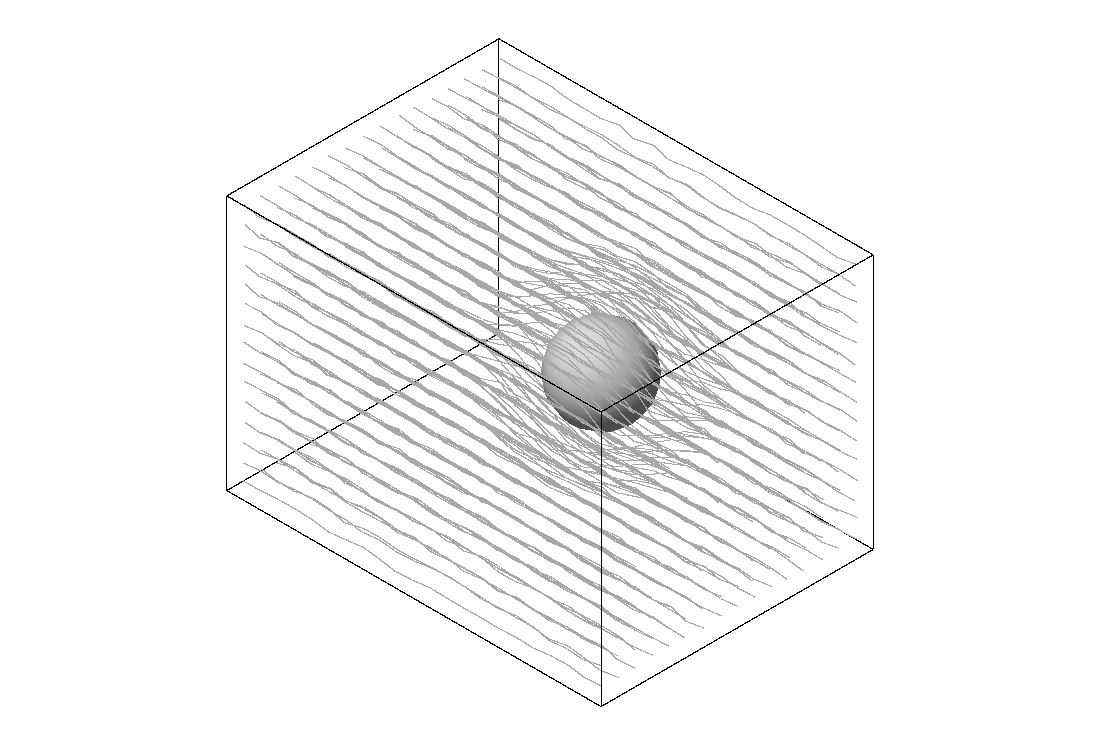

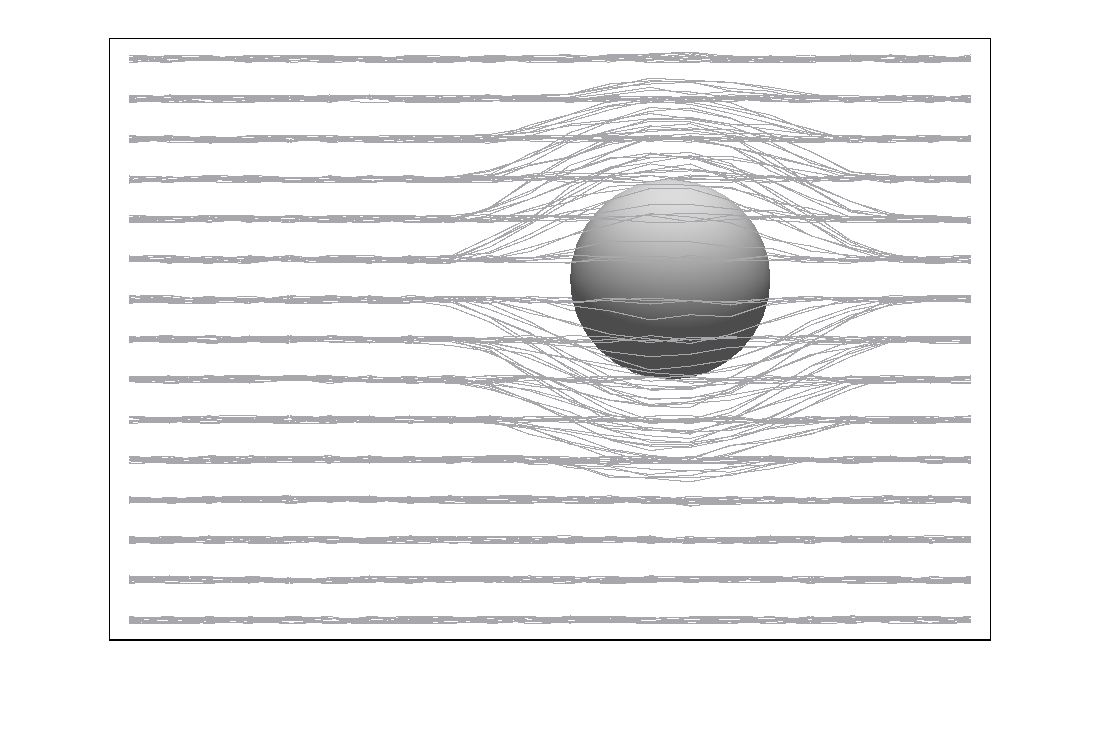

pattern3D-03Beispiele01iso.JPG pattern3D-03Beispiele01vorne.JPG

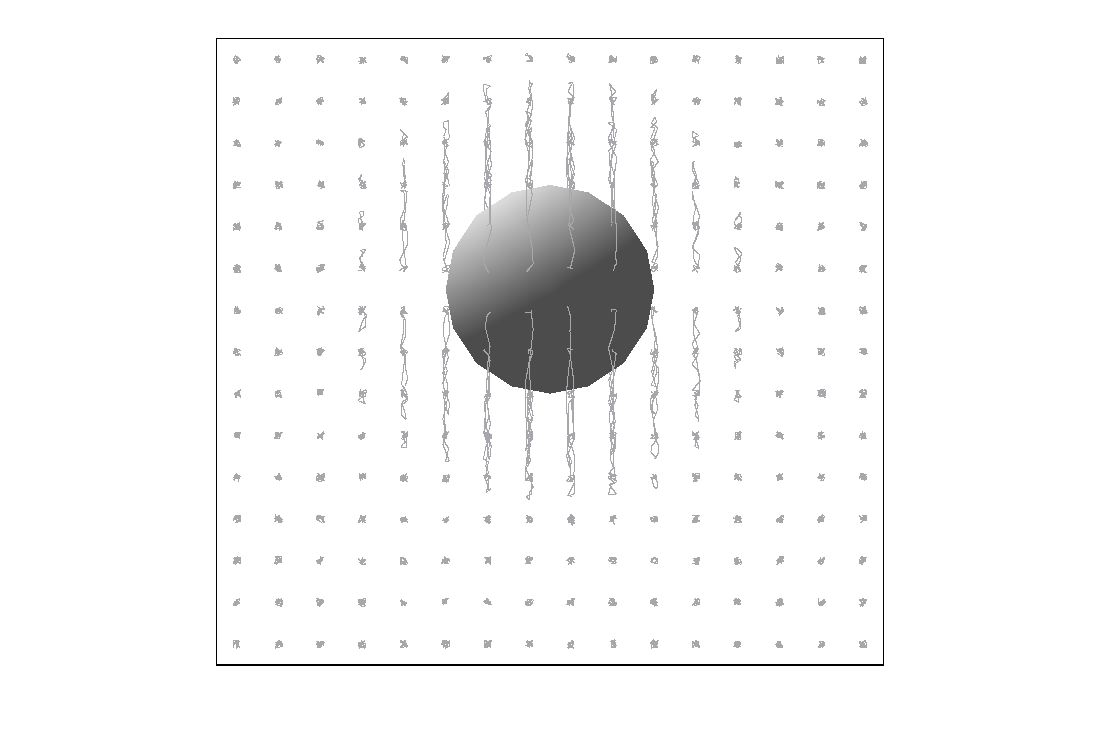

pattern3D-03Beispiele01rechts.JPG pattern3D-03Beispiele01oben.JPG

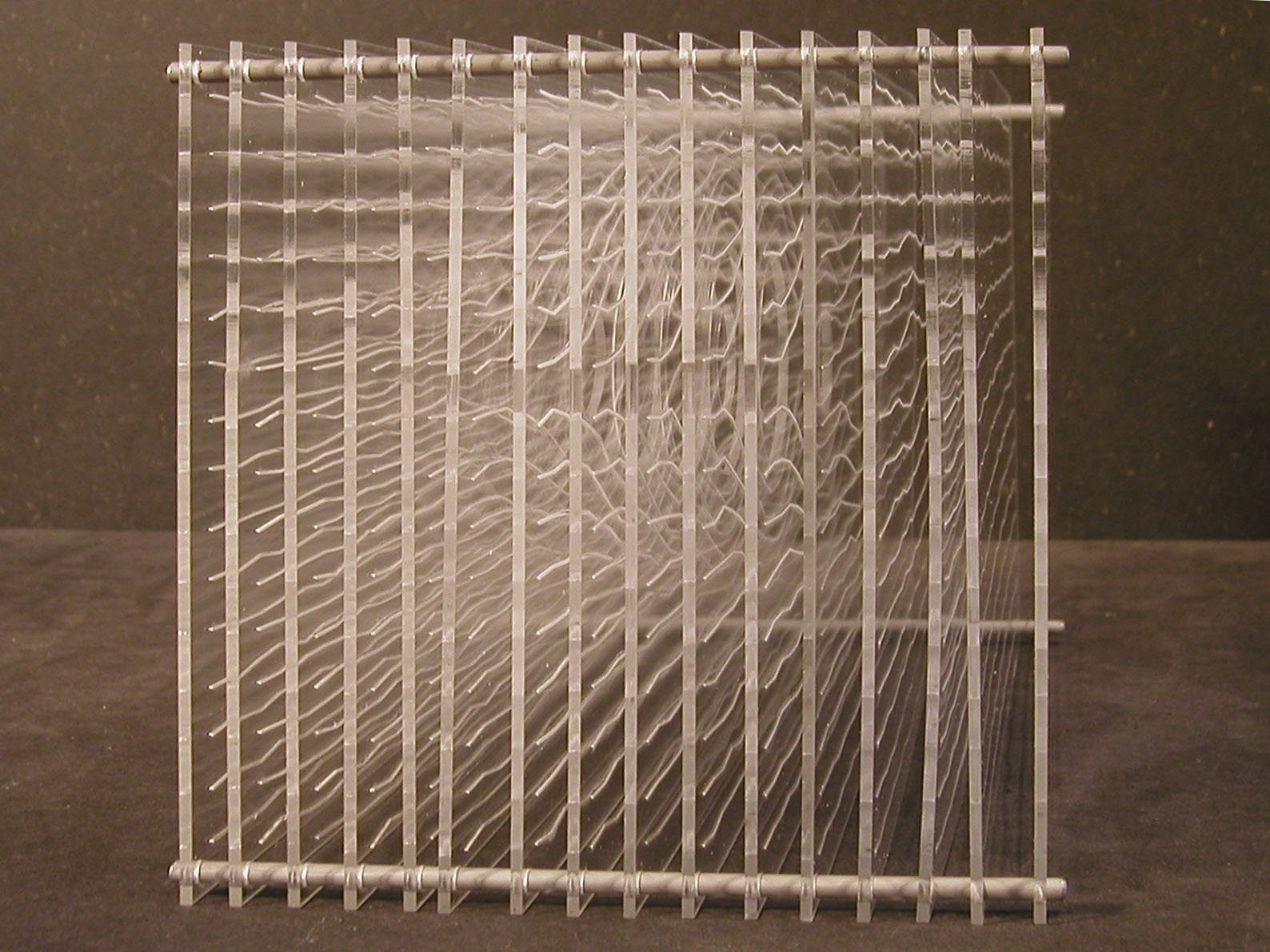

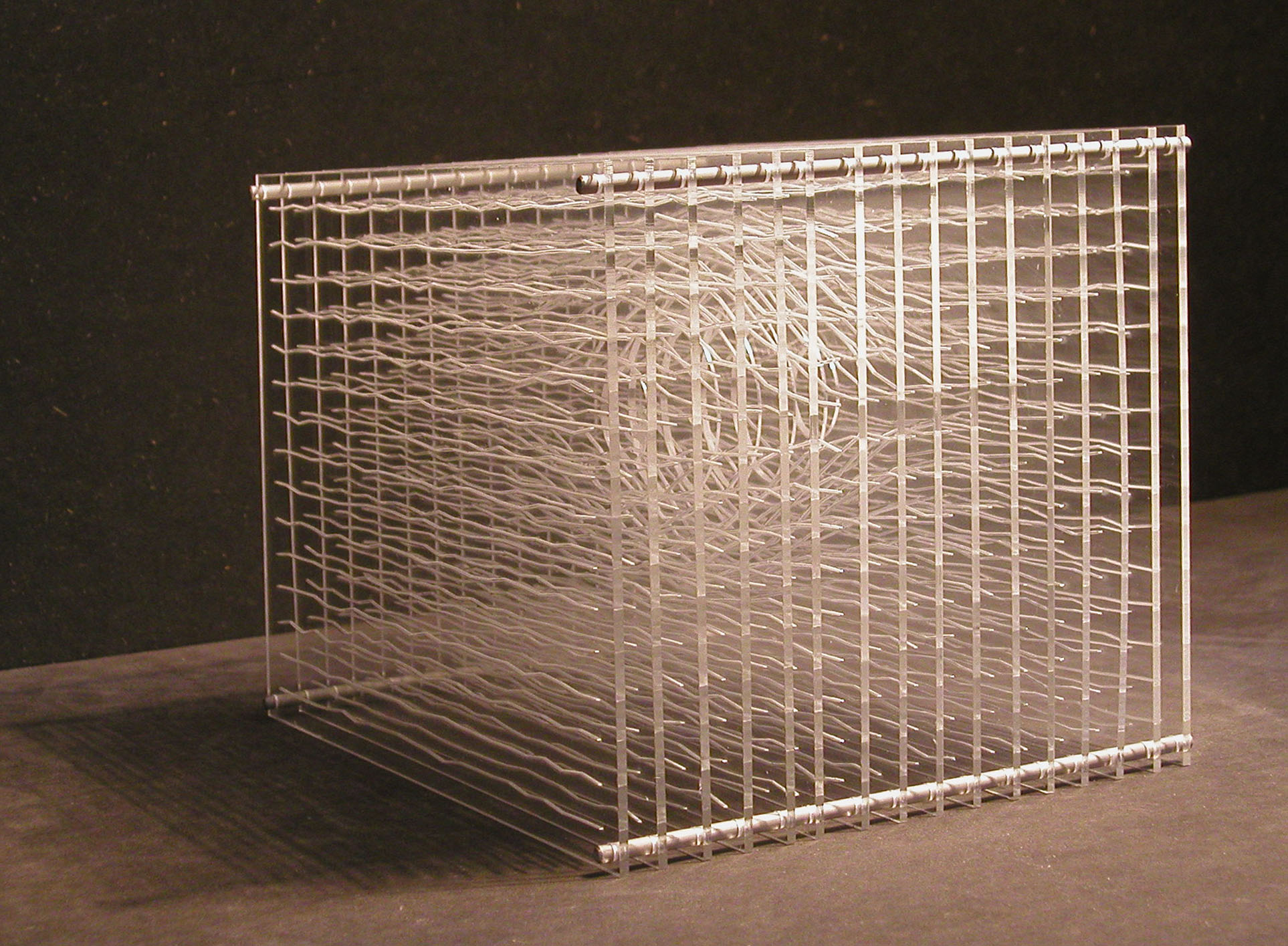

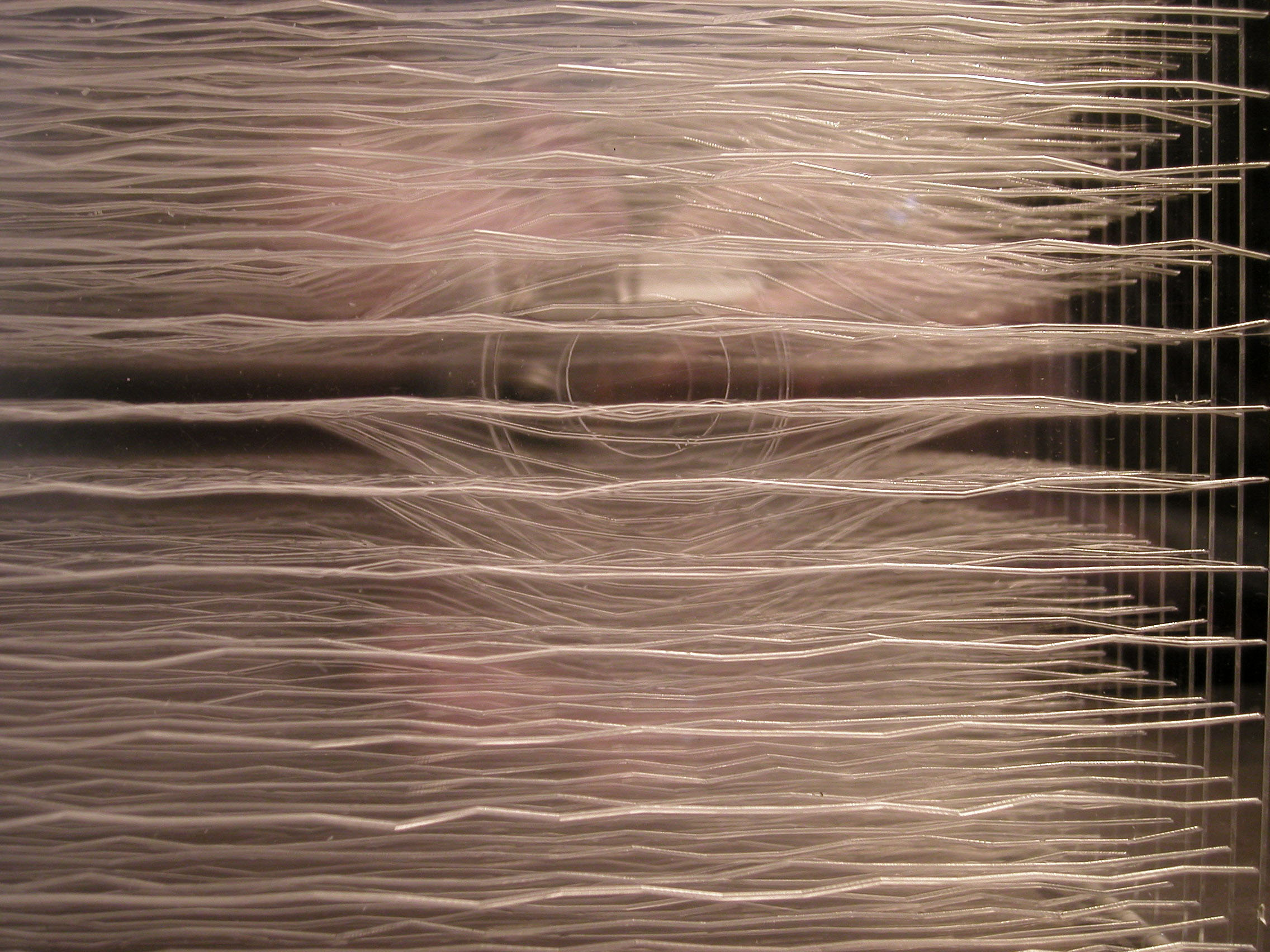

laser cut model of example IV

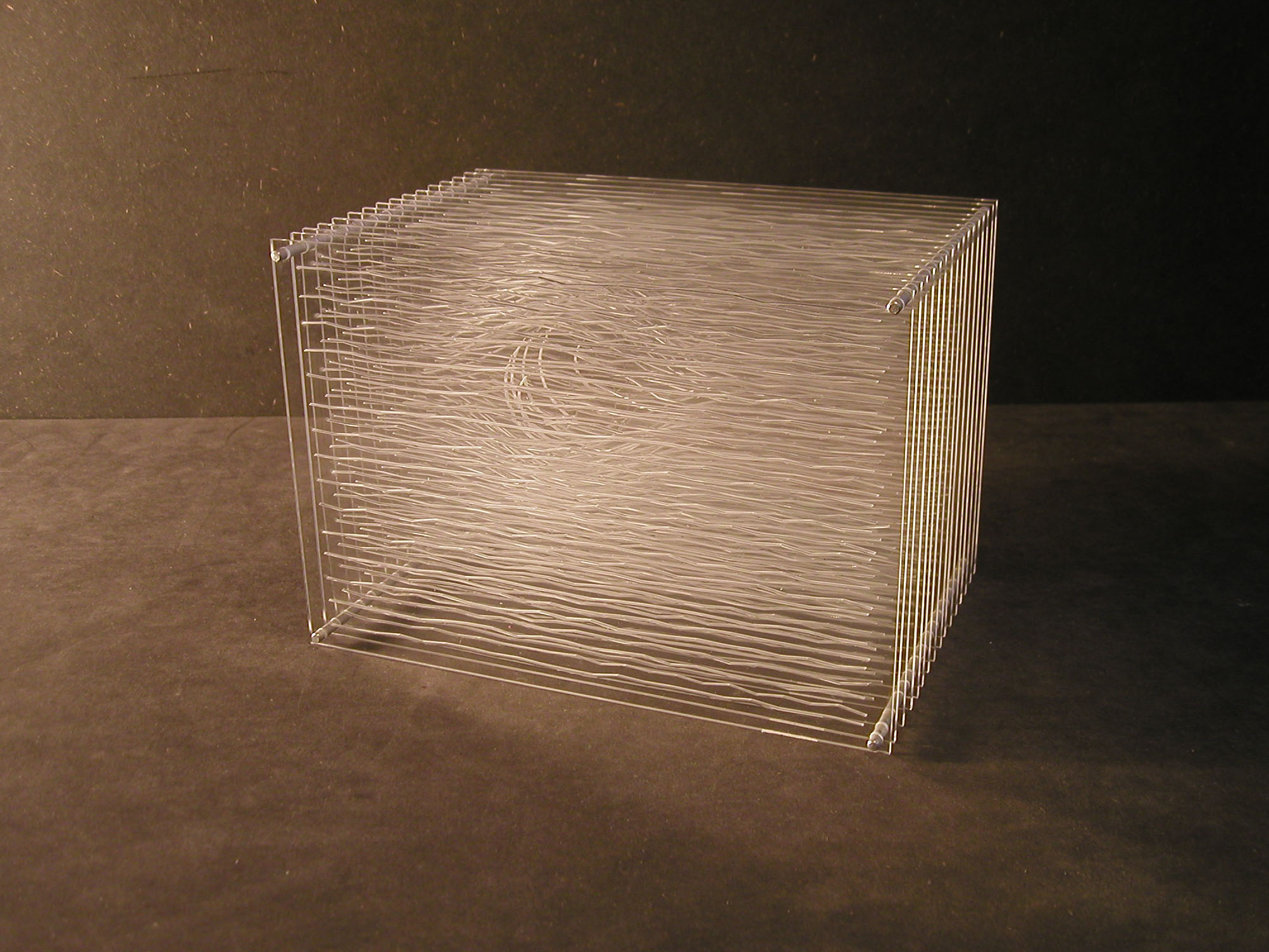

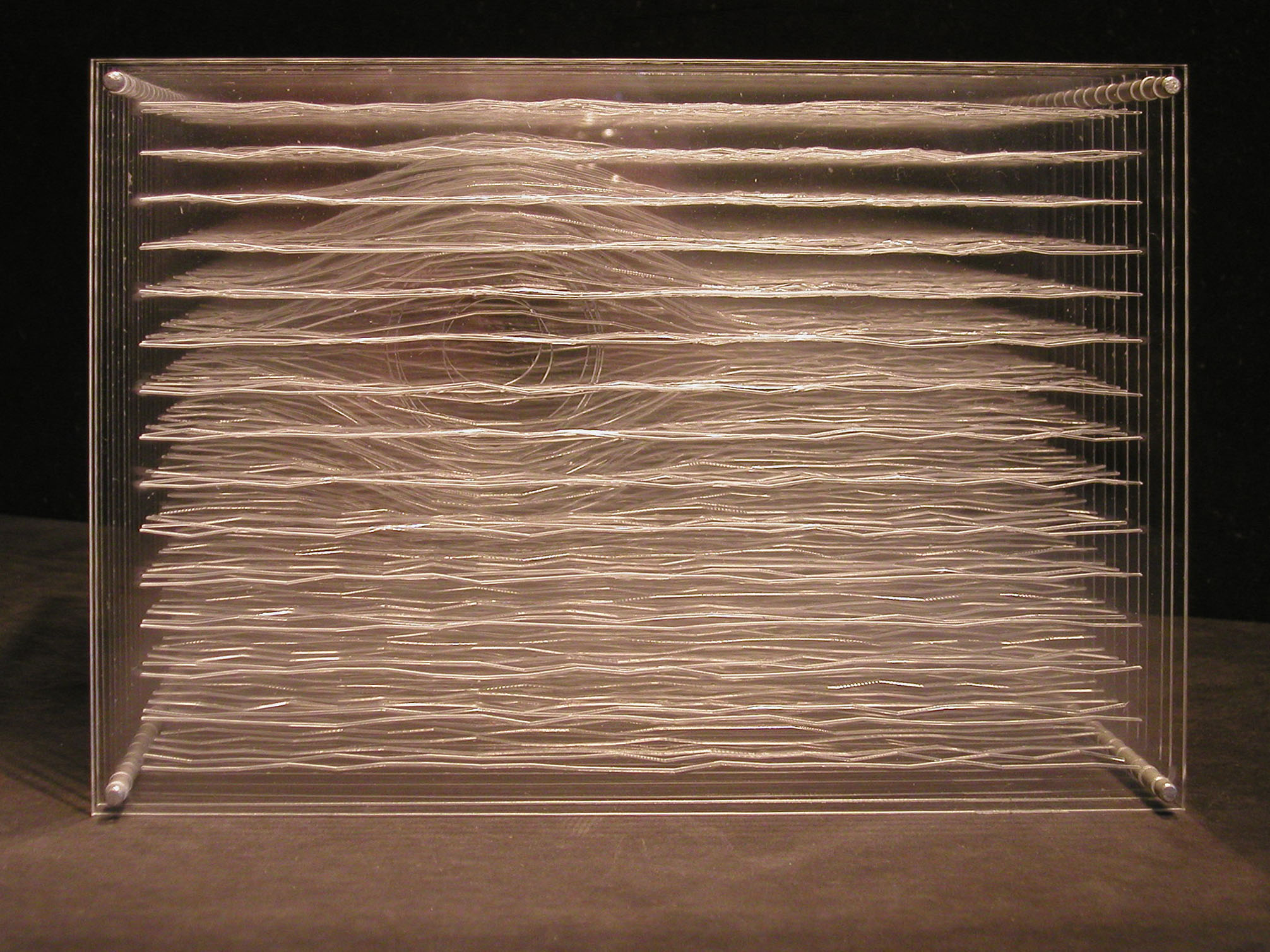

3DB01.jpg 3DA01.jpg

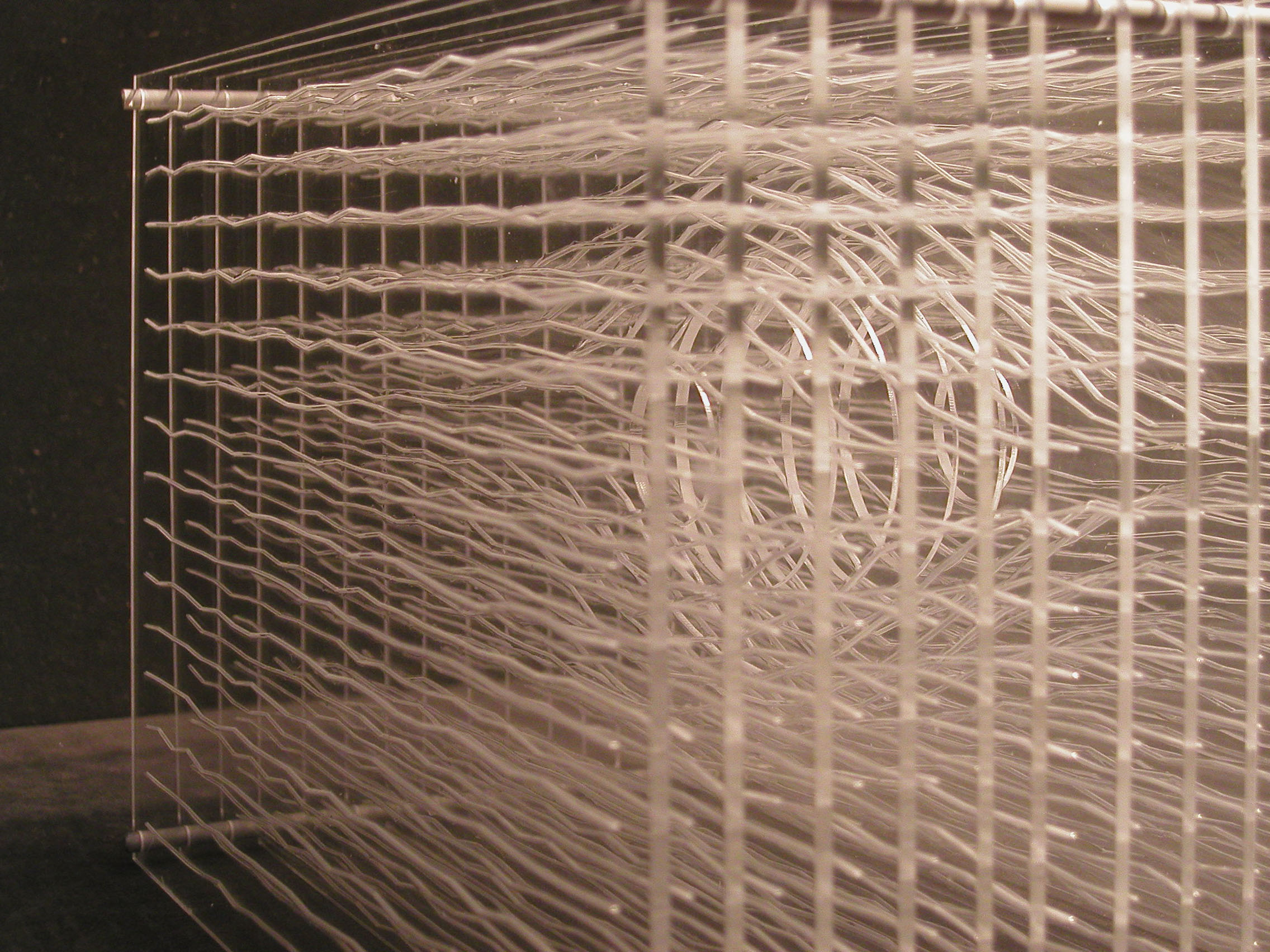

3DD01.jpg 3DC01.jpg

3DF01.jpg 3DE01.jpg





plug-in






script

PROCEDURE SandWaves3D;

VAR
   DistPt1Set, DistPt2Set, DistPt3Set : INTEGER;
   AreaX1, AreaY1, AreaZ1 : REAL;
   SizeX, SizeY, SizeZ : REAL;
   density, intfer : REAL;
   Disturb1, Disturb2, Disturb3 : BOOLEAN;
   DistPtX1, DistPtY1, DistPtZ1 : REAL;
   DistPtX2, DistPtY2, DistPtZ2 : REAL;
   DistPtX3, DistPtY3, DistPtZ3 : REAL;
   Stone1Rad, Stone2Rad, Stone3Rad : REAL;
   Effect1, Effect2, Effect3 : REAL;
   BorderPoly, Stone1, Stone2, Stone3 : HANDLE;
   MaxArrayX, MaxArrayY, MaxArrayZ : LONGINT;
   ArrayPt : DYNARRAY[,] OF POINT3D;
   i, k, m : INTEGER;
   XTemp, YTemp, ZTemp, ZTemp1, ZTemp2, ZTemp3 : REAL;
   dist1, dist2, dist3 : REAL;
   DistField1, DistField2, DistField3 : REAL;

BEGIN


{######### SET AREA BY USER #########}


AreaX1 := RealDialog('Please define cube to be filled!
Set X value of starting point:','0.00');

AreaY1 := RealDialog('Please define cube to be filled!
Set Y value of starting point:','0.00');

AreaZ1 := RealDialog('Please define cube to be filled!
Set Z value of starting point:','0.00');

SizeX := RealDialog('Please define X-extension!','100.00');
   WHILE (SizeX <= 0) DO BEGIN
      IF (SizeX <= 0) THEN AlrtDialog('Size has to be > 0! Set value again!');
      SizeX := RealDialog('Please define X-extension!','100.00');
   END;

SizeY := RealDialog('Please define Y-extension!','100.00');
   WHILE (SizeY <= 0) DO BEGIN
      IF (SizeY <= 0) THEN AlrtDialog('Size has to be > 0! Set value again!');
      SizeY := RealDialog('Please define Y-extension!','100.00');
   END;

SizeZ := RealDialog('Please define Z-extension!','100.00');
   WHILE (SizeZ <= 0) DO BEGIN
      IF (SizeZ <= 0) THEN AlrtDialog('Size has to be > 0! Set value again!');
      SizeZ := RealDialog('Please define Z-extension!','100.00');
   END;


{######### DRAW BOUNDARY CUBE #########}


PenFore(0,0,0);
PenSize(35);
FillPat(0);
BeginXtrd(AreaZ1,AreaZ1 + SizeZ);
   Rect(AreaX1, AreaY1, AreaX1 + SizeX, AreaY1 + SizeY);
EndXtrd;

ReDrawAll;


{######### SET OTHER PARAMETERS BY USER #########}


density := RealDialog('Please choose density:
(Values between 1 (dense) and 10 (loose) recommended!)','5');

intfer := RealDialog('Please set interference:
(Values between 0 and 1 recommended!)','0.50');


{######### SET DISTURBANCE BALLS BY USER #########}


Disturb1 := YNDialog('Do you wish to set disturbance balls?');

PenFore(30000,30000,30000);
PenSize(7);
FillPat(5);
FillFore(0,0,0);
FillBack(20000,20000,20000);

{### FIRST DISTURBANCE BALL ###}

IF Disturb1 = TRUE THEN BEGIN
   DistPtX1 := RealDialog('Set X value of first disturbance point:','10.00');
   WHILE (DistPtX1 < AreaX1) OR (DistPtX1 > (AreaX1 + SizeX)) DO BEGIN
      IF (DistPtX1 < AreaX1) OR (DistPtX1 > (AreaX1 + SizeX)) THEN AlrtDialog('X value of first disturbance point is not in defined area! Set value again!');
      DistPtX1 := RealDialog('Set X value of first disturbance point:','10.00');
   END;

   DistPtY1 := RealDialog('Set Y value of first disturbance point:','10.00');
   WHILE (DistPtY1 < AreaY1) OR (DistPtY1 > (AreaY1 + SizeY)) DO BEGIN
      IF (DistPtY1 < AreaY1) OR (DistPtY1 > (AreaY1 + SizeY)) THEN AlrtDialog('Y value of first disturbance point is not in defined area! Set value again!');
      DistPtY1 := RealDialog('Set Y value of first disturbance point:','10.00');
   END;

   DistPtZ1 := RealDialog('Set Z value of first disturbance point:','10.00');
   WHILE (DistPtZ1 < AreaZ1) OR (DistPtZ1 > (AreaZ1 + SizeZ)) DO BEGIN
      IF (DistPtZ1 < AreaZ1) OR (DistPtZ1 > (AreaZ1 + SizeZ)) THEN AlrtDialog('Z value of first disturbance point is not in defined area! Set value again!');
      DistPtZ1 := RealDialog('Set Z value of first disturbance point:','10.00');
   END;

   Locus3D(DistPtX1,DistPtY1,DistPtZ1);
   ReDrawAll;

   Stone1Rad := RealDialog('Set size of first disturbance ball:
(Values between 5 and 20 recommended!)','10.00');

   Stone1 := CreateSphere(DistPtX1,DistPtY1,DistPtZ1,Stone1Rad);
   ReDrawAll;

   Effect1 := RealDialog('Set shifting effect of first disturbance ball:
(Values between 2 and 5 recommended!)','3.00');

   Disturb2 := YNDialog('Do you wish to set another disturbance ball?');
END;

{### SECOND DISTURBANCE BALL ###}

IF Disturb2 = TRUE THEN BEGIN
   DistPtX2 := RealDialog('Set X value of second disturbance point:','20.00');
   WHILE (DistPtX2 < AreaX1) OR (DistPtX2 > (AreaX1 + SizeX)) DO BEGIN
      IF (DistPtX2 < AreaX1) OR (DistPtX2 > (AreaX1 + SizeX)) THEN AlrtDialog('X value of second disturbance pointis not in defined area! Set value again!');
      DistPtX2 := RealDialog('Set X value of second disturbance point:','20.00');
   END;

   DistPtY2 := RealDialog('Set Y value of second disturbance point:','20.00');
   WHILE (DistPtY2 < AreaY1) OR (DistPtY2 > (AreaY1 + SizeY)) DO BEGIN
      IF (DistPtY2 < AreaY1) OR (DistPtY2 > (AreaY1 + SizeY)) THEN AlrtDialog('Y value of second disturbance pointis not in defined area! Set value again!');
      DistPtY2 := RealDialog('Set Y value of second disturbance point:','20.00');
   END;

   DistPtZ2 := RealDialog('Set Z value of second disturbance point:','20.00');
   WHILE (DistPtZ2 < AreaZ1) OR (DistPtZ2 > (AreaZ1 + SizeZ)) DO BEGIN
      IF (DistPtZ2 < AreaZ1) OR (DistPtZ2 > (AreaZ1 + SizeZ)) THEN AlrtDialog('Z value of second disturbance point is not in defined area! Set value again!');
      DistPtZ2 := RealDialog('Set Z value of second disturbance point:','20.00');
   END;

   Locus3D(DistPtX2,DistPtY2,DistPtZ2);
   ReDrawAll;

   Stone2Rad := RealDialog('Set size of second disturbance ball:
(Values between 5 and 20 recommended!)','10.00');

   Stone2 := CreateSphere(DistPtX2,DistPtY2,DistPtZ2,Stone2Rad);
   ReDrawAll;

   Effect2 := RealDialog('Set shifting effect of second disturbance ball:
(Values between 2 and 5 recommended!)','3.00');

   Disturb3 := YNDialog('Do you wish to set another disturbance ball?');
END;

{### THIRD DISTURBANCE BALL ###}

IF Disturb3 = TRUE THEN BEGIN
   DistPtX3 := RealDialog('Set X value of third disturbance point:','30.00');
   WHILE (DistPtX3 < AreaX1) OR (DistPtX3 > (AreaX1 + SizeX)) DO BEGIN
      IF (DistPtX3 < AreaX1) OR (DistPtX3 > (AreaX1 + SizeX)) THEN AlrtDialog('X value of third disturbance point is not in defined area! Set value again!');
      DistPtX3 := RealDialog('Set X value of third disturbance point:','30.00');
   END;

   DistPtY3 := RealDialog('Set Y value of third disturbance point:','30.00');
   WHILE (DistPtY3 < AreaY1) OR (DistPtY3 > (AreaY1 + SizeY)) DO BEGIN
      IF (DistPtY3 < AreaY1) OR (DistPtY3 > (AreaY1 + SizeY)) THEN AlrtDialog('Y value of third disturbance point is not in defined area! Set value again!');
      DistPtY3 := RealDialog('Set Y value of third disturbance point:','30.00');
   END;

   DistPtZ3 := RealDialog('Set Z value of third disturbance point:','30.00');
   WHILE (DistPtZ3 < AreaZ1) OR (DistPtZ3 > (AreaZ1 + SizeZ)) DO BEGIN
      IF (DistPtZ3 < AreaZ1) OR (DistPtZ3 > (AreaZ1 + SizeZ)) THEN AlrtDialog('Z value of third disturbance point is not in defined area! Set value again!');
      DistPtZ3 := RealDialog('Set Z value of third disturbance point:','30.00');
   END;

   Locus3D(DistPtX3,DistPtY3,DistPtZ3);
   ReDrawAll;

   Stone3Rad := RealDialog('Set size of third disturbance ball:
(Values between 5 and 20 recommended!)','10.00');

   Stone3 := CreateSphere(DistPtX3,DistPtY3,DistPtZ3,Stone3Rad);
   ReDrawAll;

   Effect3 := RealDialog('Set shifting effect of third disturbance ball:
(Values between 2 and 5 recommended!)','3.00');


   AlrtDialog('This should be enough - no more disturbance balls!');
END;


IF Disturb1 = FALSE THEN AlrtDialog('What a shame! You miss the best part...');


{######### CREATE WAVES #########}


{### ALLOCATE DYNARRAY ###}

MaxArrayX := Trunc(SizeX / density);
MaxArrayY := Trunc(SizeY / density);
MaxArrayZ := Trunc(SizeZ / density);

ALLOCATE ArrayPt[1..MaxArrayX,1..MaxArrayY];

{### FILL ARRAY WITH 3DPOINTS ###}

FOR i := 1 TO MaxArrayZ DO BEGIN
   FOR k := 1 TO MaxArrayY DO BEGIN
      PenFore(40000,40000,40000);
      PenSize(140);
      FillPat(0);
      Smooth(2);
      OpenPoly;
      BeginPoly3D;
      FOR m := 1 TO MaxArrayX DO BEGIN
         XTemp := AreaX1 + (m*density) - (0.5 * density);
         YTemp := AreaY1 + (k*density) - (0.5 * density);
         ZTemp := AreaZ1 + (i*density) - (0.5 * density);

         {### CONSIDER DISTURBANCE POINTS ###}

         IF Disturb1 = TRUE THEN BEGIN
            {### DETERMINE DISTANCE TO DISTURBANCE POINT 1 ###}
            dist1 := sqrt(sqr(DistPtX1 - XTemp) + sqr(DistPtY1 - YTemp) + sqr(DistPtZ1 - ZTemp));
            {### SHIFT POINTS OF POLY (DEPENDING ON DISTANCE TO DISTURBANCE POINT) ###}
            IF dist1 < (Effect1*Stone1Rad) THEN BEGIN
               DistField1 := Deg2Rad(180 / (Effect1*Stone1Rad / dist1));
               IF ZTemp < DistPtZ1 THEN ZTemp1 := ZTemp - (0.55*Stone1Rad * (Cos(DistField1) + 1));
               IF ZTemp = DistPtZ1 THEN ZTemp1 := ZTemp - (0.55*Stone1Rad * (Cos(DistField1) + 1));
               IF ZTemp > DistPtZ1 THEN ZTemp1 := ZTemp + (0.55*Stone1Rad * (Cos(DistField1) + 1));
            END;
            IF dist1 >= (Effect1*Stone1Rad) THEN ZTemp1 := ZTemp;
         END;
         IF Disturb1 = FALSE THEN ZTemp1 := ZTemp;

         IF Disturb2 = TRUE THEN BEGIN
            {### DETERMINE DISTANCE TO DISTURBANCE POINT 2 ###}
            dist2 := sqrt(sqr(DistPtX2 - XTemp) + sqr(DistPtY2 - YTemp) + sqr(DistPtZ2 - ZTemp1));
            {### SHIFT POINTS OF POLY (DEPENDING ON DISTANCE TO DISTURBANCE POINT) ###}
            IF dist2 < (Effect2*Stone2Rad) THEN BEGIN
               DistField2 := Deg2Rad(180 / (Effect2*Stone2Rad / dist2));
               IF ZTemp1 < DistPtZ2 THEN ZTemp2 := ZTemp1 - (0.55*Stone2Rad * (Cos(DistField2) + 1));
               IF ZTemp1 = DistPtZ2 THEN ZTemp2 := ZTemp1 - (0.55*Stone2Rad * (Cos(DistField2) + 1));
               IF ZTemp1 > DistPtZ2 THEN ZTemp2 := ZTemp1 + (0.55*Stone2Rad * (Cos(DistField2) + 1));
            END;
            IF dist2 >= (Effect2*Stone2Rad) THEN ZTemp2 := ZTemp1;
         END;
         IF Disturb2 = FALSE THEN ZTemp2 := ZTemp1;

         IF Disturb3 = TRUE THEN BEGIN
            {### DETERMINE DISTANCE TO DISTURBANCE POINT 3 ###}
            dist3 := sqrt(sqr(DistPtX3 - XTemp) + sqr(DistPtY3 - YTemp) + sqr(DistPtZ3 - ZTemp2));
            {### SHIFT POINTS OF POLY (DEPENDING ON DISTANCE TO DISTURBANCE POINT) ###}
            IF dist3 < (Effect3*Stone3Rad) THEN BEGIN
               DistField3 := Deg2Rad(180 / (Effect3*Stone3Rad / dist3));
               IF ZTemp2 < DistPtZ3 THEN ZTemp3 := ZTemp2 - (0.55*Stone3Rad * (Cos(DistField3) + 1));
               IF ZTemp2 = DistPtZ3 THEN ZTemp3 := ZTemp2 - (0.55*Stone3Rad * (Cos(DistField3) + 1));
               IF ZTemp2 > DistPtZ3 THEN ZTemp3 := ZTemp2 + (0.55*Stone3Rad * (Cos(DistField3) + 1));
            END;
            IF dist3 >= (Effect3*Stone3Rad) THEN ZTemp3 := ZTemp2;
         END;
         IF Disturb3 = FALSE THEN ZTemp3 := ZTemp2;

         {### GRID OF POINTS TO CREATE "WAVEPOLYS" ###}

         ArrayPt[m,k].x := XTemp;
         ArrayPt[m,k].y := YTemp + (intfer * (random-0.5) * density);
         ArrayPt[m,k].z := ZTemp3 + (intfer * (random-0.5) * density);

         Add3DPt(ArrayPt[m,k].x, ArrayPt[m,k].y, ArrayPt[m,k].z);
      END;
      EndPoly3D;
      ReDrawAll;
   END;
END;

DSelectAll;

END;

Run(SandWaves3D);






-- NDSMartinTann - 03 Nov 2005
