MAS ETH ARCH/CAAD - 2005/06 - STUDENT PAGES
Master of Advanced Studies in Architecture, Specialization in Computer Aided Architectural Design | 065-0005/6
Supervision: Prof. Dr. Ludger Hovestadt, Philipp Schaerer
Chair of CAAD, ETH Zurich







assignment

pattern > > > sand | waves > > > first steps





setting up the script

storyboard

Picto01b.jpg   define area
> > > new polygon / existing polygon

Picto02b.jpg   define parameters
> > > set angle / density / interference

Picto03b.jpg   define starting point
> > > set origin for pattern

Picto04b.jpg   draw first wave
> > > start in 2 directions / stop at polygon border

Picto05b.jpg   draw parallel waves
> > > first in one direction

Picto06b.jpg   draw parallel waves
> > > then in other direction




script

> > > so far...

PROCEDURE Dune;
VAR
   FirstQuest : INTEGER;
   SelPoly, WavePoly1A, WavePoly1B : HANDLE;
   GetPolyX, GetPolyY : REAL;
   ObjType : INTEGER;
   angle, density, intfer : REAL;
   StartX, StartY, L1X1, L1Y1, L1X2, L1Y2 : REAL;
   InCheck, InCheck2 : BOOLEAN;
   RadAng : REAL;
   i : INTEGER;
   vertAX, vertAY : REAL;

BEGIN

{######### FILL AN EXISTING POLY OR DRAW A NEW ONE?! #########}

FirstQuest := IntDialog('Please select:
          1 Fill an existing polygon or polyline.
          2 Draw a new Polygon and fill it.','1');

IF (FirstQuest = 2) THEN BEGIN
   CallTool(-204);
   SelPoly := LObject;
   END;

IF (FirstQuest = 1) THEN BEGIN
   AlrtDialog('Please select a polygon or polyline!');

   REPEAT
      GetPt(GetPolyX,GetPolyY);
      SelPoly := PickObject(GetPolyX,GetPolyY);
      SetSelect(SelPoly );
      ObjType := GetType(SelPoly);

      IF (ObjType < 5) THEN AlrtDialog('Selected Object is not a polygon or a polyline! Try again!');
      IF (ObjType = 6) THEN AlrtDialog('Selected Object is not a polygon or a polyline! Try again!');
      IF (ObjType = 7) THEN AlrtDialog('Selected Object is not a polygon or a polyline! Try again!');
      IF (ObjType = 8) THEN AlrtDialog('Selected Object is not a polygon or a polyline! Try again!');
      IF (ObjType = 9) THEN AlrtDialog('Selected Object is not a polygon or a polyline! Try again!');
      IF (ObjType = 10) THEN AlrtDialog('Selected Object is not a polygon or a polyline! Try again!');
      IF (ObjType = 11) THEN AlrtDialog('Selected Object is not a polygon or a polyline! Try again!');
      IF (ObjType = 12) THEN AlrtDialog('Selected Object is not a polygon or a polyline! Try again!');
      IF (ObjType = 13) THEN AlrtDialog('Selected Object is not a polygon or a polyline! Try again!');
      IF (ObjType = 14) THEN AlrtDialog('Selected Object is not a polygon or a polyline! Try again!');
      IF (ObjType = 15) THEN AlrtDialog('Selected Object is not a polygon or a polyline! Try again!');
      IF (ObjType = 16) THEN AlrtDialog('Selected Object is not a polygon or a polyline! Try again!');
      IF (ObjType = 17) THEN AlrtDialog('Selected Object is not a polygon or a polyline! Try again!');
      IF (ObjType = 18) THEN AlrtDialog('Selected Object is not a polygon or a polyline! Try again!');
      IF (ObjType = 19) THEN AlrtDialog('Selected Object is not a polygon or a polyline! Try again!');
      IF (ObjType = 20) THEN AlrtDialog('Selected Object is not a polygon or a polyline! Try again!');
      IF (ObjType > 21) THEN AlrtDialog('Selected Object is not a polygon or a polyline! Try again!');

   UNTIL (ObjType = 5) OR (ObjType = 21);

END;


{######### SET PARAMETERS BY USER  #########}


angle := RealDialog('Please enter angle of texture (in degrees):','45');

density := RealDialog('Please choose density:
(Values between 0.1 (dense) and 10 (loose) recommended!)','1');

intfer := RealDialog('Please set interference:
(Values between 0 and 1 recommended!)','0.50');

AlrtDialog('Please choose starting point!');

REPEAT
   GetPt(StartX,StartY);
   InCheck := PtInPoly(StartX,StartY,SelPoly);
   IF InCheck = FALSE THEN AlrtDialog('Please choose point IN or ON polyline/polygon!');
UNTIL (InCheck = TRUE);


{######### DRAW FIRST SANDWAVE #########}

RadAng := Deg2Rad(angle);
L1X1 := StartX;
L1Y1 := StartY;

Smooth(2);
BeginPoly;
   AddPoint(L1X1,L1Y1);

   WHILE (InCheck = TRUE) DO BEGIN
      L1X1 := (density * Cos(RadAng)) + L1X1 + (intfer * (random-0.5) * density);
      L1Y1 := (density * Sin(RadAng)) + L1Y1 + (intfer * (random-0.5) * density);
      InCheck := PtInPoly(L1X1,L1Y1,SelPoly);
      IF InCheck = TRUE THEN AddPoint(L1X1,L1Y1);
   END;
EndPoly;
WavePoly1A := LObject;

ReDrawAll;

L1X2 := StartX;
L1Y2 := StartY;
InCheck2 := TRUE;

Smooth(2);
BeginPoly;
   AddPoint(L1X2,L1Y2);

   WHILE (InCheck2 = TRUE) DO BEGIN
      L1X2 :=  L1X2 - (density * Cos(RadAng)) + (intfer * (random-0.5) * density);
      L1Y2 :=  L1Y2 - (density * Sin(RadAng)) + (intfer * (random-0.5) * density);
      InCheck2 := PtInPoly(L1X2,L1Y2,SelPoly);
      IF InCheck2 = TRUE THEN AddPoint(L1X2,L1Y2);
   END;
EndPoly;
WavePoly1B := LObject;

ReDrawAll;

END;

Run(Dune);

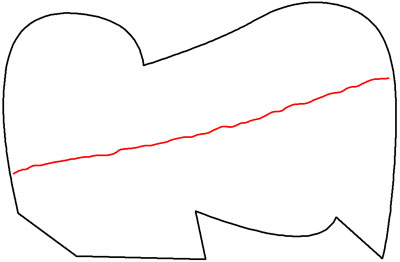

temporary result








-- NDSMartinTann - 03 Nov 2005
