Master of Advanced Studies in Architecture, Specialization in Computer Aided Architectural Design | 065-0005/6
Supervision: Prof. Dr. Ludger Hovestadt, Philipp Schaerer
Chair of CAAD, ETH Zurich

module 1: assignment 01-03: first plugin

Martin Tann

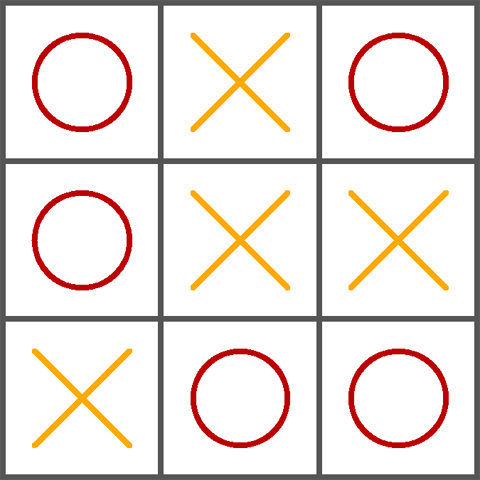

TicTacToolgr.jpg TicTacTool is a nice little plug-in for vectorworks
if you are bored by your drawings or you just need some fun in between...
just grab one of your colleagues and gamble for the next coffee!

Yael Girot Ifrah

grossertablefortwiki.JPG Here is a magnificient plug in to make a very simple table and chairs. Enjoy!!! -vector script

Meindert Versteeg

RotateMoveBlock.jpg Move and Rotate within one simple mouse movement.
Download now: MoveRotate.vst

Matthias Zäh


Bild_03.jpg by changing some parameters you get various solutions for spiral constructions spiral plugin...

DongYoun Shin

offset2.jpg OffsetDot is a quite simple plug-in for drawing.
If you want to know the intersection which was offset poly-line then you can use this plug-in. Offset to outside by amount of your typed, and point a dot where the Offset-line crossed. This Plug-in only show the point. If you want to connect each points than you can draw by yourself. First, draw a poly-line, click the OffsetDot Icon and select the poly-line.


Monika Annen

secondplugin.jpg The 'layout plugin' is useable to arrange display furniture or tables
in a floorplan regularly. Parameters such as dimension of space,
dimension of display/table and dimensions of gaps between
displays/tables and walls are modifiable.

vectorscript :first plugin

Benjamin Dillenburger

NDSBen_01_03_maurer.jpg Bring up the walls!
Download now: Brickwork.vso

Tobias Wendt


Sladjana Markovic

just-do-it.jpg one small plug-in for cheering up, when you are sick from message "view errors"... just DO it

-- NDSMonikaAnnen - 21 Nov 2005
