MAS ETH ARCH/CAAD - 2004/05 - STUDENT PAGES
Master of Advanced Studies in Architecture, Specialization in Computer Aided Architectural Design | 065-0005/6
Supervision: Prof. Dr. Ludger Hovestadt, Philipp Schaerer
Chair of CAAD, ETH Zurich






Flash / Actionscipt | Assignment 3 - The ExplanatioN08 - exemplary part02: Color Mixer

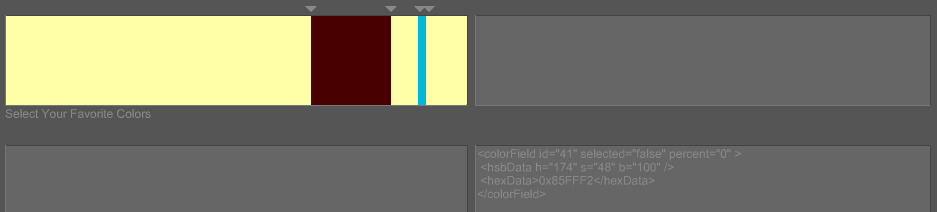

The Color Configurator ExplanatioN08




public function moveColorField( Counter:Number ):Void
   {
      for ( i = 0; i <= Counter; i++ )
      {
         _root[ "copy_mc" + Counter ].onRelease = function()
         {
            if ( Clicker <= 10 )
            {
               Clicker++;
               var barX:Number = _root.rFA1_mc._x + 1;
               var barY:Number = _root.rFA1_mc._y + 1;
               var barW:Number = _root.rFA1_mc._width - 4;
               var barH:Number = _root.rFA1_mc._height - 4;

                this.copyIndex_array = this._name.split("copy_mc");
               this.copyIndex_str = this.copyIndex_array[1];
               this.copyIndex_number = Number(this.copyIndex_str) - 1;


               this.duplicateMovieClip( "bar_mc" + Clicker, 55500 + Clicker );
               _root.createEmptyMovieClip( "btn_mc" + Clicker, 99999999 + Clicker );
               LocalData.save( "ColorField" + this.copyIndex_number, "Selected", true );
               ColorPicker.setText( "rOP2Data_txt", thePicker.traceColorFields( "rOP2Data_txt", this.copyIndex_number ), THLColor );
               ColorPicker.setText( "rFAhl_txt", "Select Your Favorite Colors  " + Clicker, TXTColor );

               }



               _root["bar_mc" + Clicker].clBarIndex = Clicker;
               _root["bar_mc" + Clicker].barIndex_number = this.copyIndex_number;

               _root["btn_mc" + Clicker].clBtnIndex = Clicker;
               _root["btn_mc" + Clicker].btnIndex_number = this.copyIndex_number;

               for ( var j = 1; j <= Clicker; j++ )
               {
                  LocalData.save( "ColorField" + _root["bar_mc" + j].barIndex_number, "Percent", int( 100 / Clicker ) );
                  ColorPicker.setText( "rOP2Data_txt", thePicker.traceColorFields( "rOP2Data_txt", _root["bar_mc" + j].barIndex_number ), THLColor );
                  thePicker.createAverage();
               }

               for ( var j = 1; j <= Clicker; j++ )
                {
                  with ( _root["bar_mc" + j] )
                  {
                     if (j > 1)
                     {
                        _x = _root["bar_mc" + (j - 1)]._x + _root["bar_mc" + (j - 1)]._width;

                     }
                     else
                     {
                        _x = barX;
                     }
                     indX = Clicker;
                     _y = barY;
                     _width = barW / Clicker;
                     _height = barH;
                     width = _width;
                     height = _height;
                     _alpha = 100;
                  }

                   if (j > 1)
                  {
                     with ( _root["btn_mc" + j] )
                     {
                        _x = _root["bar_mc" + (j - 1)]._x + _root["bar_mc" + (j - 1)]._width;
                        _y = barY - 10;
                        h = 6;
                        w = 12;
                        beginFill( _root.TXTColor, 100 );
                        moveTo( -6, 0 );
                        lineTo( w/2, 0 );
                        lineTo( 0, h );
                        lineTo( -6, 0 );
                        endFill();
                     }
                  }

                  _root["bar_mc" + j].onPress = function()
                  {
                     ColorPicker.setText( "rOP2Data_txt", thePicker.traceColorFields( "rOP2Data_txt", this.barIndex_number ), THLColor );
                  }

                  _root["btn_mc" + j].onPress = function()
                  {
                     startRX = _root["bar_mc" + this.clBtnIndex]._x;
                     startLX = _root["bar_mc" + (this.clBtnIndex - 1)]._x;
                     startRW = _root["bar_mc" + this.clBtnIndex]._width;
                     startLW = _root["bar_mc" + (this.clBtnIndex - 1)]._width;

                     if ( this.clBtnIndex == Clicker )
                     {
                        endD = _root["bar_mc" + Clicker]._x + _root["bar_mc" + Clicker]._width - 10;
                     }
                     else
                     {
                        endD = _root["bar_mc" + (this.clBtnIndex + 1)]._x - 10;
                     }

                     this.startDrag( true, startLX + 10 , this._y, endD, this._y );
                     delete this.onEnterFrame;
                     this.onEnterFrame = function()
                     {
                        newRX = this._x;
                        difX = newRX - startRX;
                        newRW = startRW  - difX;
                        newLW = startLW  + difX;

                        newLP = int( newLW * 100 / barW );
                        newRP = int( newRW * 100 / barW );

                        if ( newRX >= startLX + 1 )
                        {
                        _root["bar_mc" + this.clBtnIndex]._x = newRX;
                        _root["bar_mc" + this.clBtnIndex]._width = newRW;
                        _root["bar_mc" + (this.clBtnIndex - 1)]._width = newLW;
                        }
                     }
                  }

                  _root["btn_mc" + j].onReleaseOutside = function()
                  {
                     LocalData.save( "ColorField" + this.btnIndex_number, "Percent", newRP );
                     LocalData.save( "ColorField" + (this.btnIndex_number - 1), "Percent", newLP );
                     thePicker.createAverage();
                     ColorPicker.setText( "rOP2Data_txt", thePicker.traceColorFields( "rOP2Data_txt", this.btnIndex_number ), THLColor );
                     this.stopDrag();
                  }

                  _root["btn_mc" + j].onRelease = function()
                  {
                     LocalData.save( "ColorField" + this.btnIndex_number, "Percent", newRP );
                     LocalData.save( "ColorField" + (this.btnIndex_number - 1), "Percent", newLP );
                     thePicker.createAverage();
                     ColorPicker.setText( "rOP2Data_txt", thePicker.traceColorFields( "rOP2Data_txt", this.btnIndex_number ), THLColor );
                     this.stopDrag();
                     delete this.onEnterFrame;
                  }
               }
            }
         }
      }
   }
