Blue C

blue-c Teilprojekt CAAD (0-23807-00)

official blue-c website

Overview

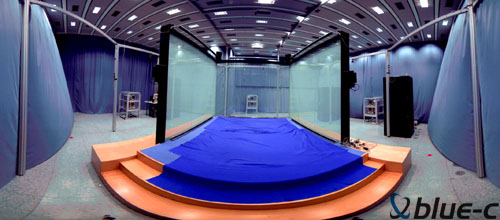

panpost.jpg blue-c is a new generation immersive projection and 3Dvideo acquisition environment for virtual design and collaboration. It combines simultaneous acquisition of multiple live video streams with advanced 3D projection technology in a CAVE™-like environment, creating the impression of total immersion. The blue-c portal currently consists of three rectangular projection screens that are built from glass panels containing liquid crystal layers. These screens can be switched from a whitish opaque state (for projection) to a transparent state (for acquisition), which allows the video cameras to “look through” the walls. Our projection technology is based on active stereo using two LCD projectors per screen. The projectors are synchronously shuttered along with the screens, the stereo glasses, active illumination devices, and the acquisition hardware. From multiple video streams, we compute a 3D video representation of the user in real time. The resulting video inlays are integrated into a networked virtual environment. Our design is highly scalable, enabling blue-c to connect to portals with less sophisticated hardware.
blue-c concept

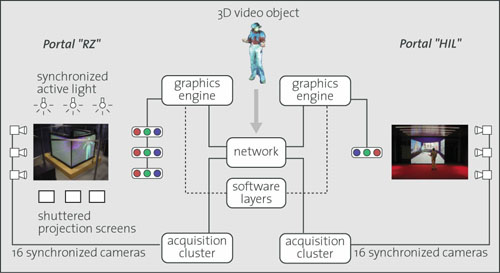

HIL.jpg system_overview.2.jpg RZ.jpg
  • blue-c portal HIL
  • active stereo projection
  • public media space
  • video conferencing
  • powerwall for presentations
  • collaborative, networked environment
  • spatially immersive display
  • 3D video acquisition and projection
  • cameras see through the walls
  • remote users rendered as3D video inlay
  • blue-c portal RZ
  • first prototype of a 3-sided single-user blue-c
  • cameras are behind the screens
  • shuttered walls
selected applications

IN:SHOP

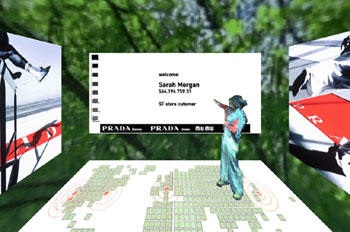

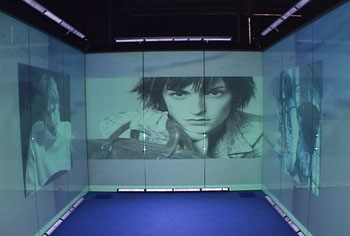

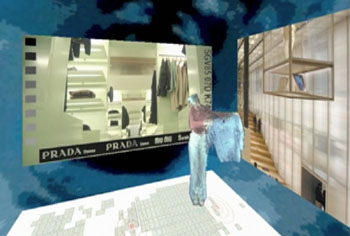

StartupStage.jpg snap_welcome.jpg ShowPullover.jpg
..
Fashion and store images within the application are courtesy of OMA/AMO and Prada

InfoTicles


presentations
