Groningen Twister Screenshots

back to Groningen Twister

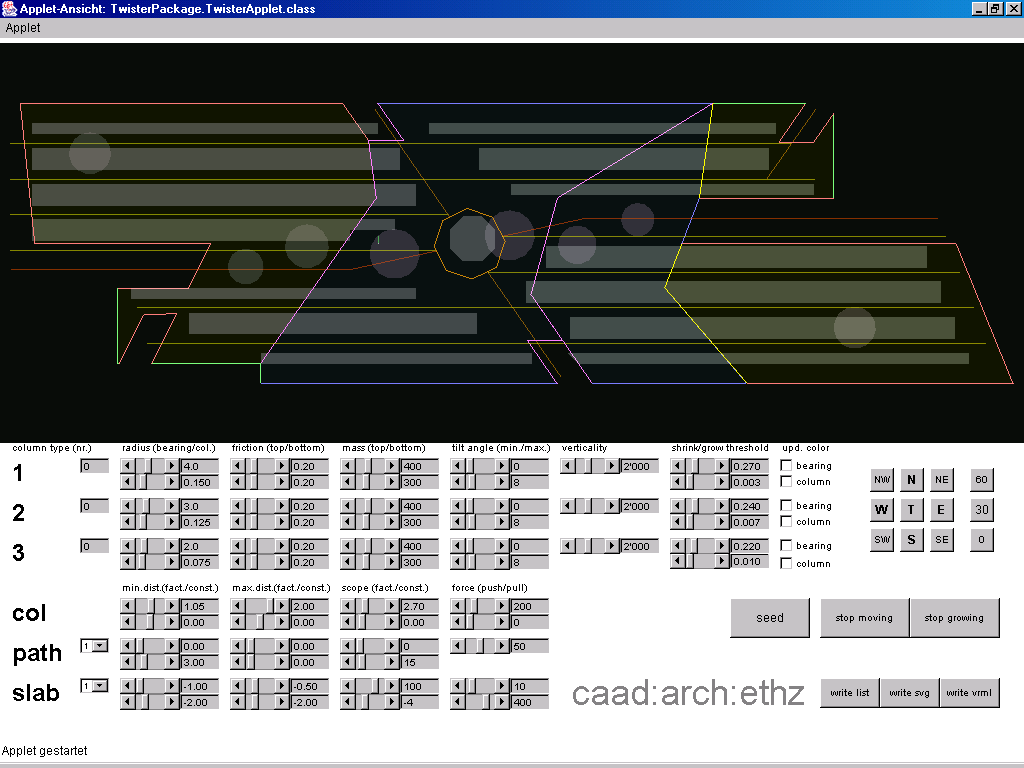

screen 01 Top view of the simulation before the start.

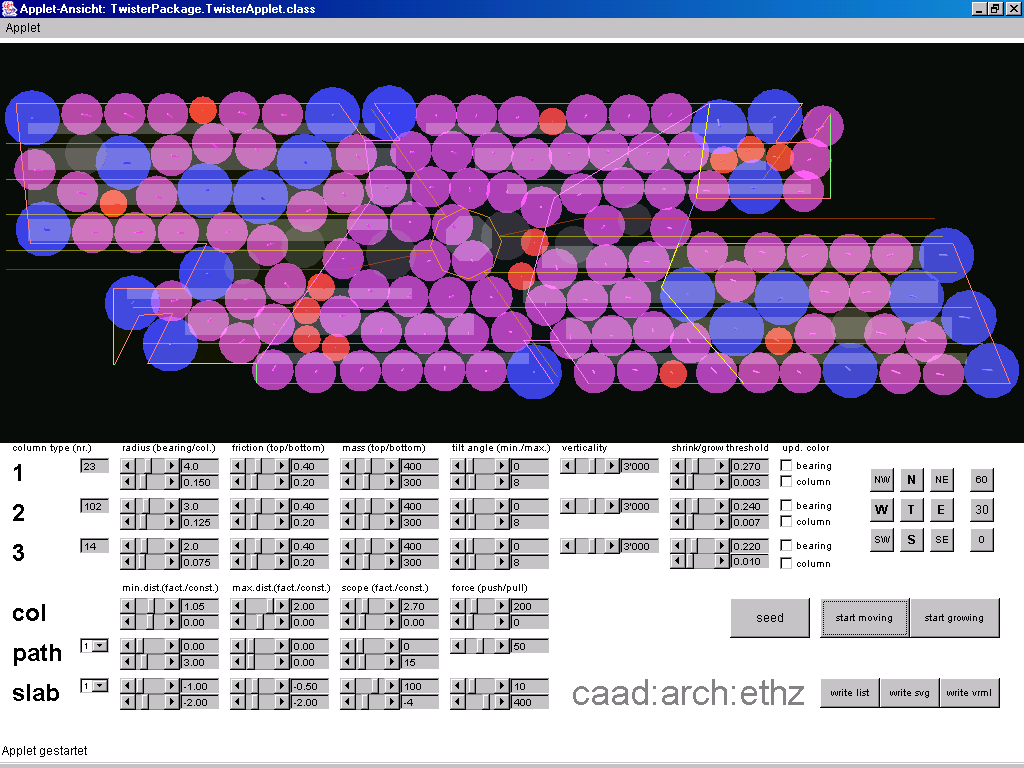

screen 02 Top view of the running simulation.

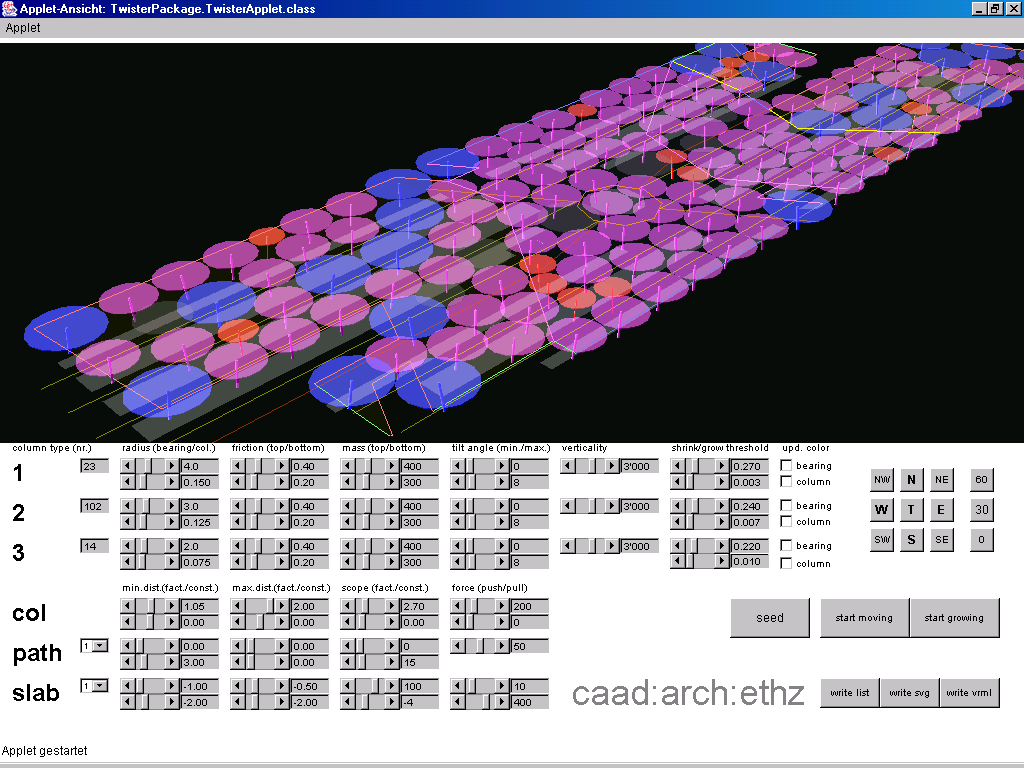

screen 02 Birdseye view of the running simulation.

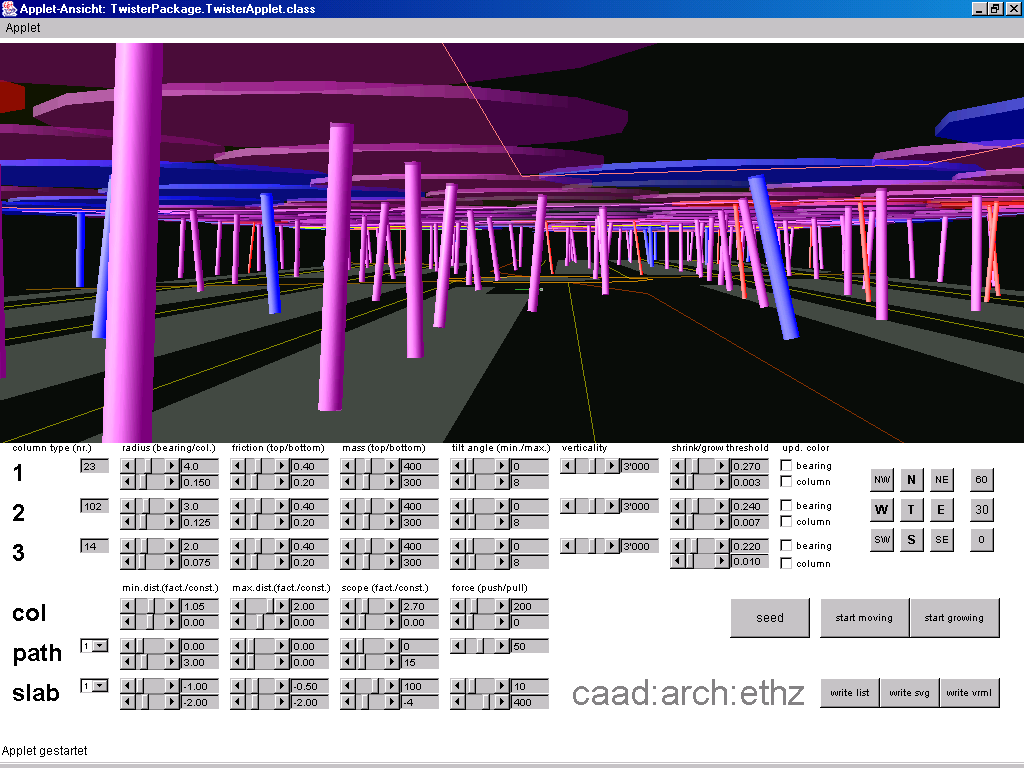

screen 02 Walking perspective of the running simulation.
screen 02 Another Walking perspective of the running simulation.

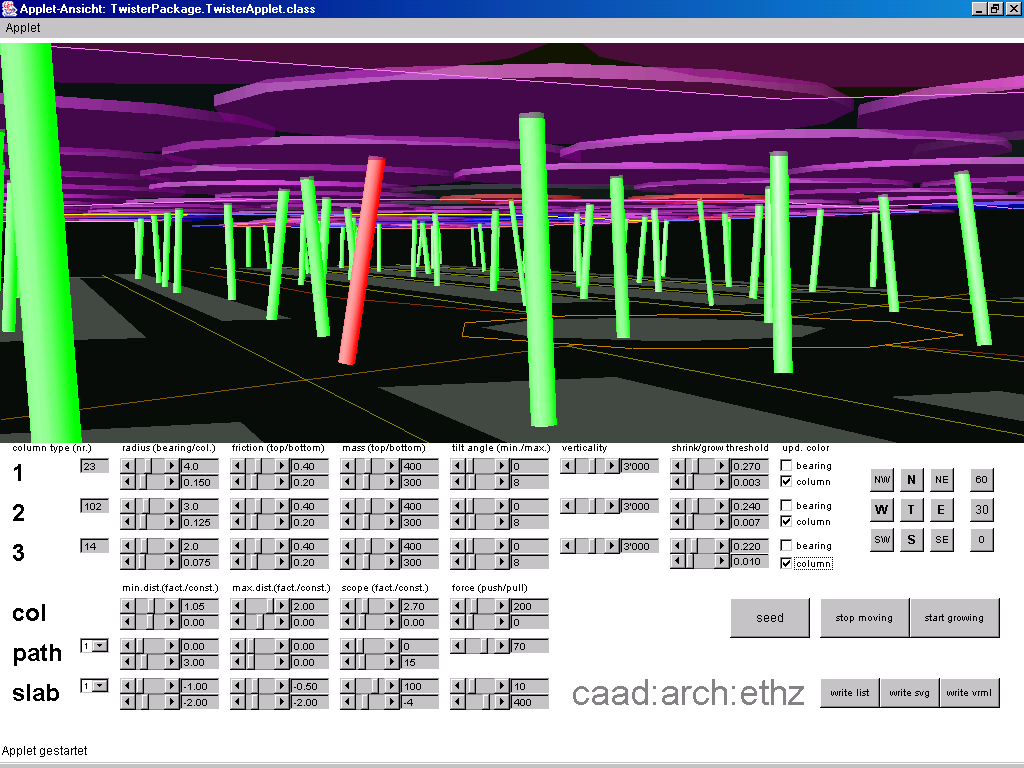

screen 02 Color coding of the columns' tilt angles. Red = more than 10 degrees.

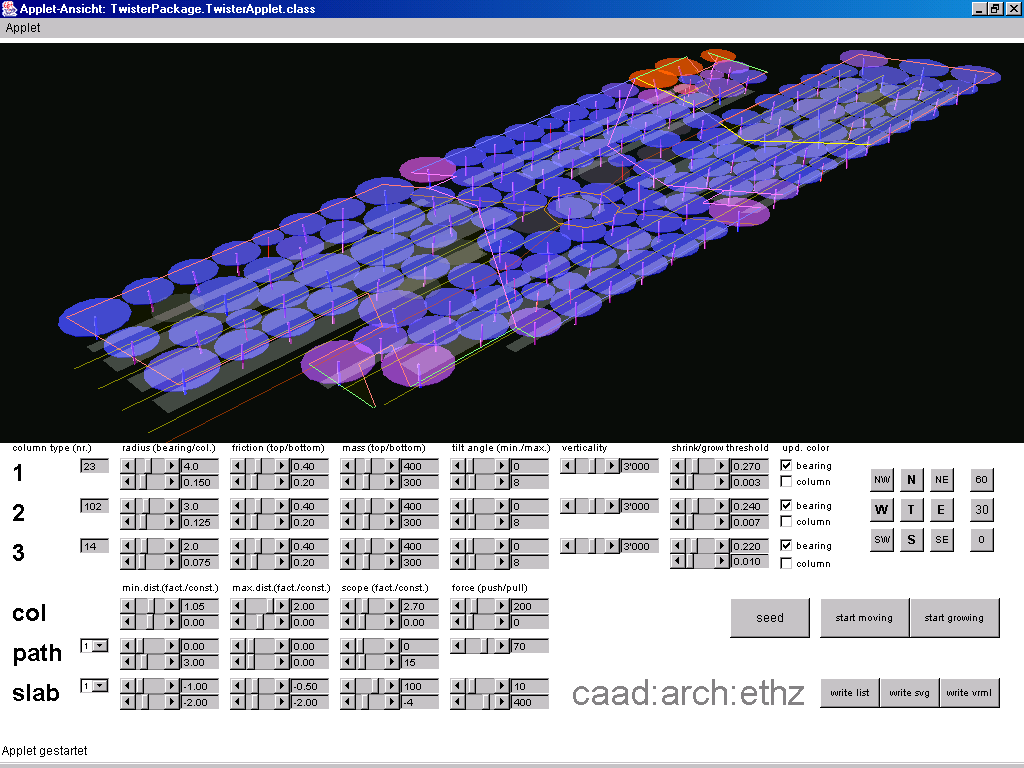

screen 02 Color coding of the columns' kinetic energy. Red = fast, blue = slow.

FabianScheurer - 12 Jan 2005

Revision r1.1 - 12 Jan 2005 - 16:15 - FabianScheurer
