dSail System

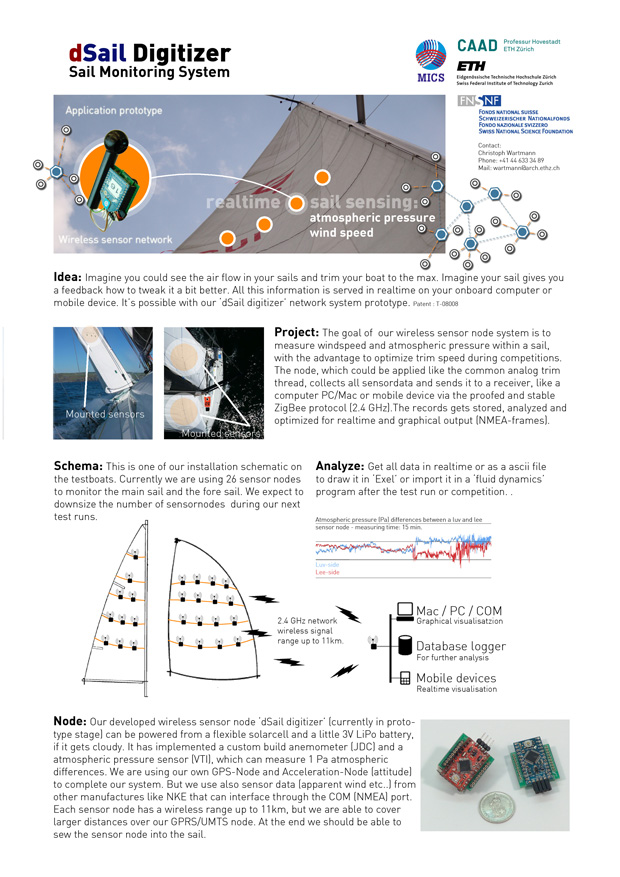

Some time ago i wondered if it was possible to monitor airflow and pressure differences directly on a sail (while sailing) using wireless sensor nodes. A big advantage could be to make the sail trim better and faster. So here is the concept: Download as pdf: PDF...


Here are some pictures of early stage prototyping.

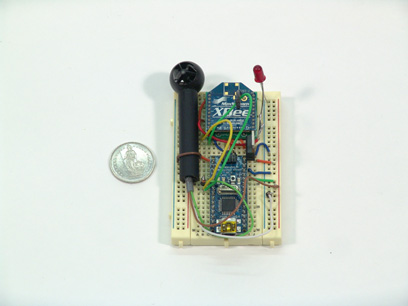

Custom built air-flow sensor node prototype.

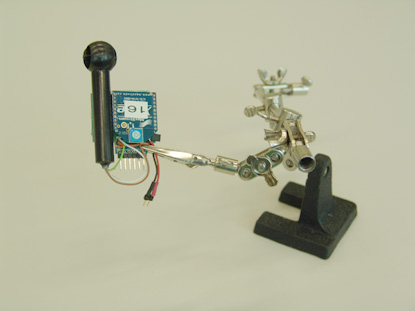

Hand soldered node prototype which measures and computes air-speed and absolute air-pressure.

First test and measurement sail run.

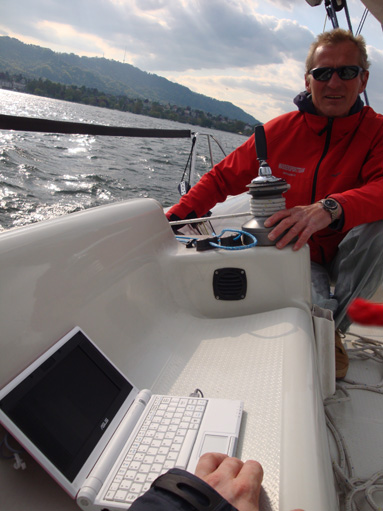

Logging onto a little Asus PC with skipper Axel.

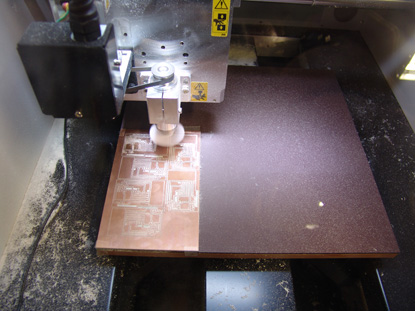

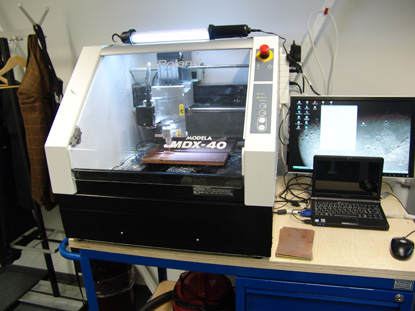

Milling the new PCB layouts.

With help from our Raplab|ETHz colleagues.

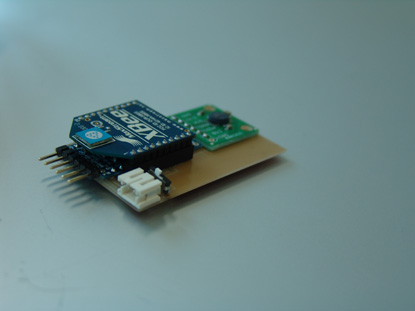

PCB Prototype.

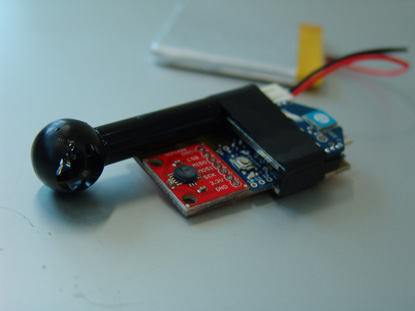

PCB Prototype with windsensor.

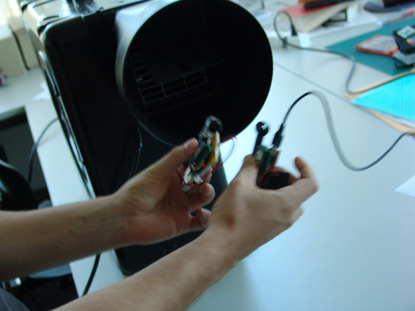

Calibrating the wind sensors.

In really strong winds. 100 km/h generated by this black windmachine.

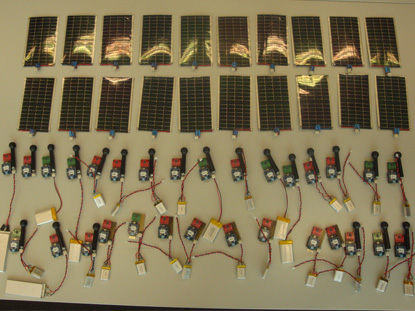

Table full of our wireless sensor nodes.

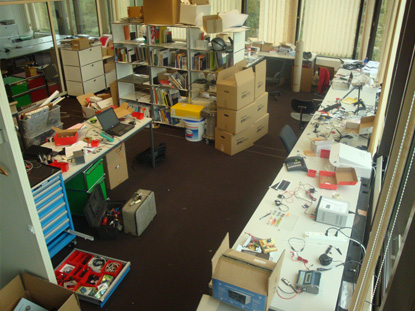

Developing and moving our EmbeddedLab.

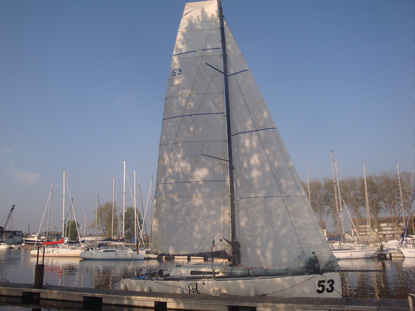

Testboat Class40 Racing in St. Malo - Atlantik/France.

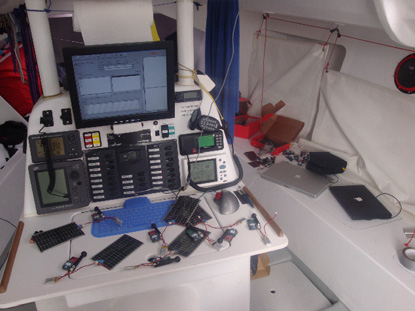

The inside of the boat.

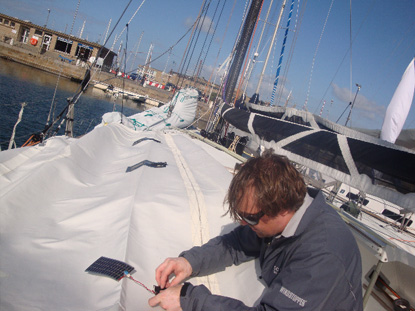

Installing the solar-powered wireless sensor nodes onto the sail.

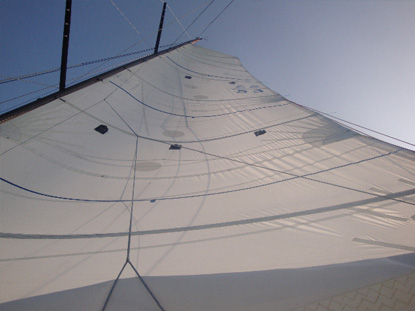

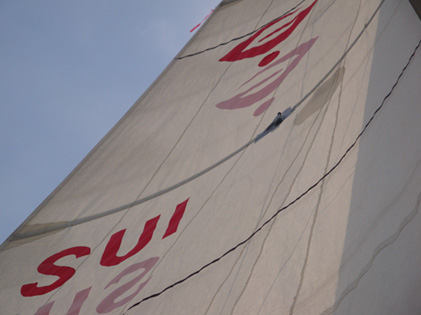

Sensors attached on the sail.

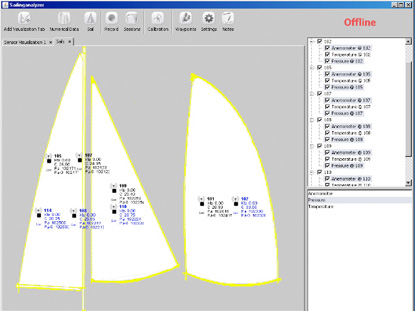

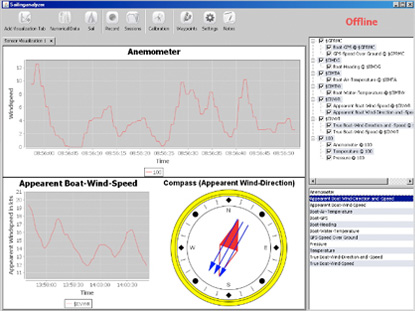

Our analyse software.

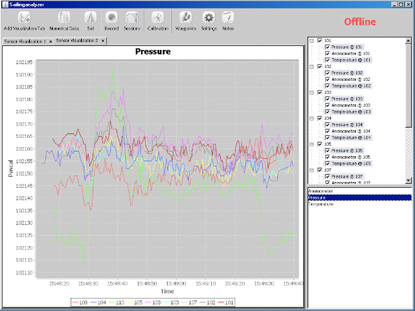

More analysis software.

More analysis software.

More analysis software.

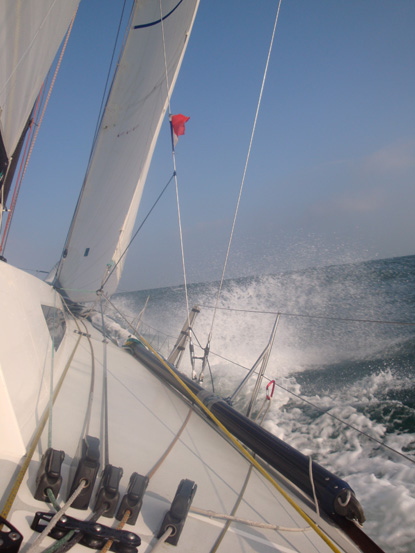

Action - Atlantic test drive.

Christoph Wartmann during the night shift.

More to come soon...we are currently working on it.

Feel free to mail me your comments: wartmann{at}arch.ethz.ch

by Christoph Wartmann
Assistant: Etienne Ribeiro
